Seat Front: Installation
WARNING:
Make sure the front passenger seat is correctly installed and fastened to the vehicle. Do not force the alignment to the floorpan mounting holes. If the seat does not align to the floorpan mounting holes, repair the seat or floorpan as needed. Failure to follow these instructions may result in incorrect operation of the occupant classification system (OCS) and increase the risk of serious personal injury or death in a crash.
NOTE:
Make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants before installation.
All seats
- 3.
Align the front inboard seat mounting locator to the guide hole in the floor and position the seat.
- 5.

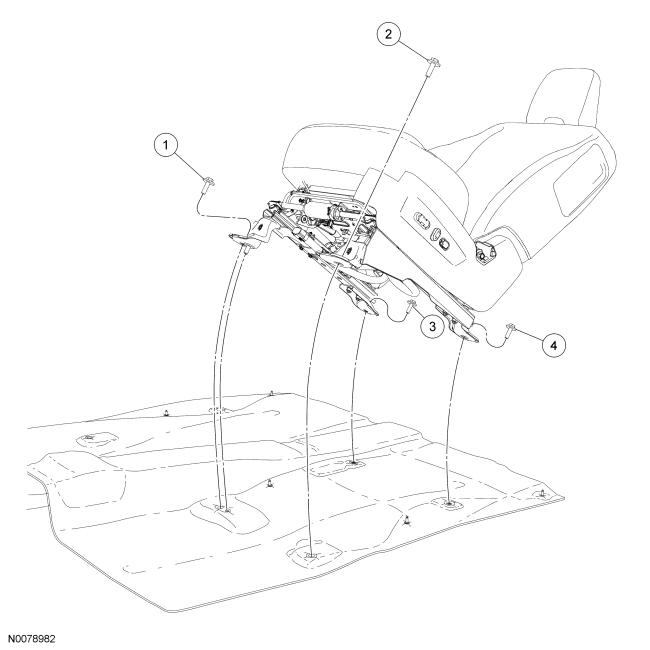

Install the seat track-to-floor bolts in the following sequence.- 1.
Install the seat track-to-floor front inboard bolt.- Tighten to 55 Nm (41 lb-ft).
- 2.
Install the seat track-to-floor front outboard bolt.- Tighten to 55 Nm (41 lb-ft).
- 3.
Install the seat track-to-floor rear inboard bolt.- Tighten to 55 Nm (41 lb-ft).
- 4.
Install the seat track-to-floor rear outboard bolt.- Tighten to 55 Nm (41 lb-ft).
- 1.
- 7.
Position the safety belt retractor belt anchor onto the seat stud and install the safety belt retractor belt anchor nut.- Tighten to 47 Nm (35 lb-ft).
- 9.
Repower the SRS.If a passenger seat has been serviced, do not prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM .
Passenger seat with existing seat track and Occupant Classification System Module(OCSM) - Vehicles built up to 7/30/2012.
- 10.
Carry out the Occupant Classification System(OCS) System Zero Seat Weight Test. Refer Supplemental Restraint System .
Passenger seat with existing seat track and OCSM - Vehicles built from 7/30/2012
- 11.
Carry out the OCS System Reset. Refer to Supplemental Restraint System
Passenger seat with new track or OCSM.
- 12.
Carry out the OCS System Reset. Refer to Supplemental Restraint System
