Control Components - Exploded View

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

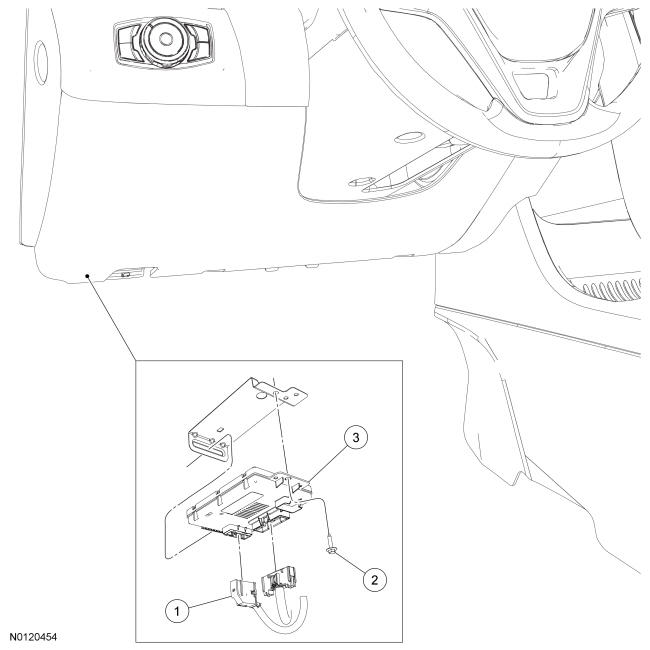

HVAC Module

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	HVAC module electrical connector (2 required) (part of 14401)
2	W710506	HVAC module screw
3	19980	HVAC module

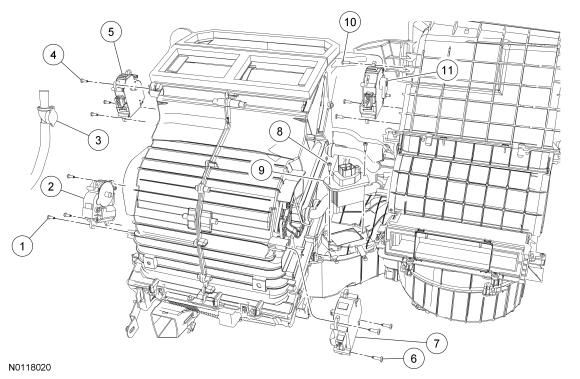

Heater Core and Evaporator Core Housing Control Components

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	LH temperature blend door actuator screw (3 required)
2	19E616	LH temperature blend door actuator
3	-	In-vehicle temperature sensor aspirator (part of 19D888)
4	-	Defrost/panel/floor airflow mode door actuator screw (3 required)
5	19E616	Defrost/panel/floor airflow mode door actuator
6	-	RH temperature blend door actuator screw (3 required)
7	19E616	RH temperature blend door actuator
8	-	Blower motor speed control screw (2 required)
9	19E624	Blower motor speed control
10	-	Air inlet mode door actuator screw (3 required)
11	19E616	Air inlet mode door actuator

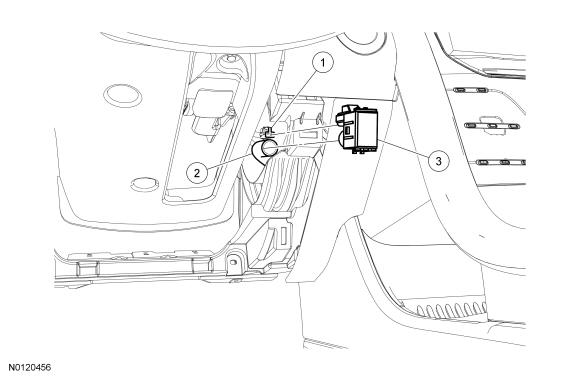

In-Vehicle Temperature Sensor

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	In-vehicle temperature sensor electrical connector (part of 14401)
2	-	In-vehicle temperature sensor aspirator hose (part of 19D888 kit)
3	19D888	In-vehicle temperature sensor

1.

Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
