Fuel Pump Control Module: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

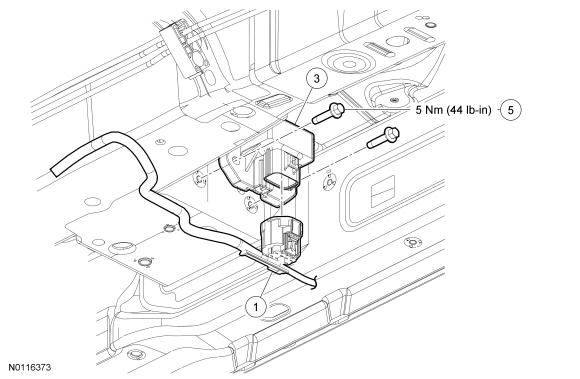

Fig 1: Fuel Pump Control Module Component Location With Torque Specifications
GFD97769Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Fuel Pump Control Module (FPCM) electrical connector (part of 14407)
2 W505256 FPCM bolt (2 required)
3 9345 FPCM
