Steering Column Control Module (SCCM): Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

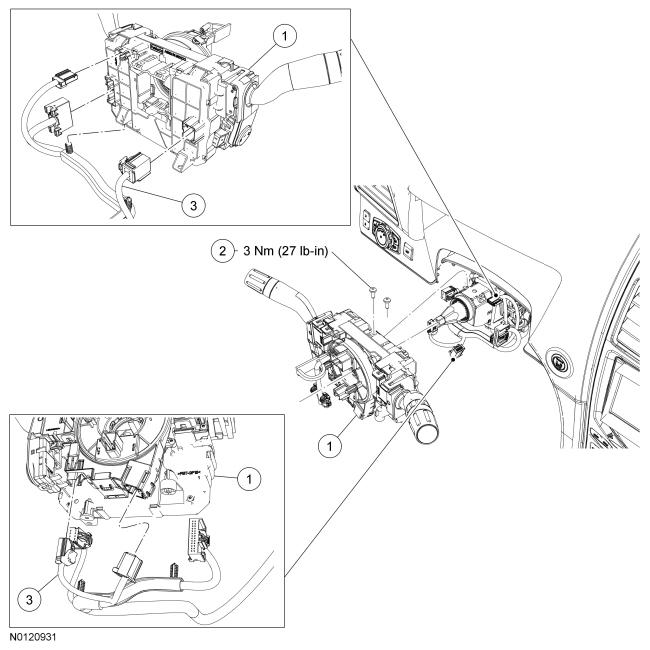

Fig 1: Steering Column Control Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	3F791	Steering Column Control Module (SCCM)
2	W715057	SCCM screw (2 required)
3	14401	Wire harness
