Front Controls Interface Module (FCIM): Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Front Controls Interface Module (FCIM)

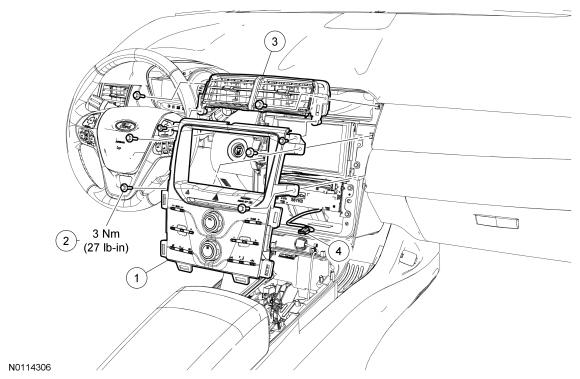

Edge
| Item | Part Number | Description |
|---|---|---|
| 1 | 18842 | Front Controls Interface Module (FCIM) |
| 2 | W707628 | FCIM screws (6 required) |
| 3 | 19C894 | Center register |
| 4 | - | FCIM electrical connector (part of 14401) |

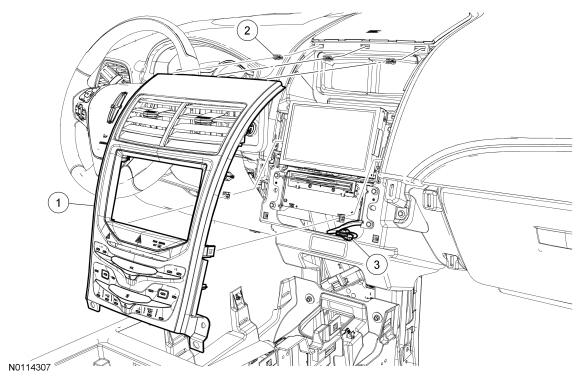

MKX
| Item | Part Number | Description |
|---|---|---|
| 1 | 18842 | FCIM |
| 2 | - | FCIM clips (7 required) |
| 3 | - | FCIM electrical connector (part of 14401) |
