Front Controls Display Interface Module (FCDIM): Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Front Controls/Display Interface Module (FCDIM)

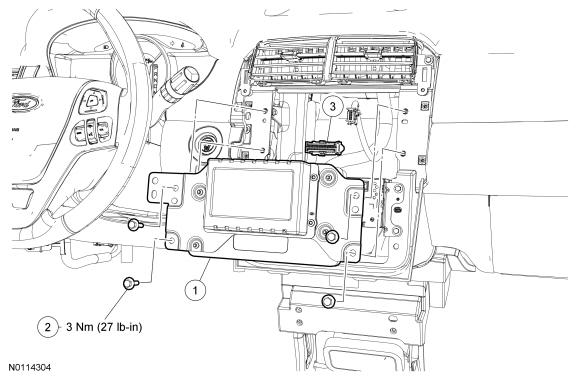

Fig 1: Front Controls/Display Interface Module (FCDIM) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	10D885	Front Control/Display Interface Module (FCDIM)
2	W705314	FCDIM screws (4 required)
3	-	FCDIM electrical connector (part of 14401)
