Manifold Absolute Pressure (MAP) / Intake Air Temperature 2 (IAT2) Sensor: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Material
| Item | Specification |
| Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft ® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada) | WSS-M2C946-A |

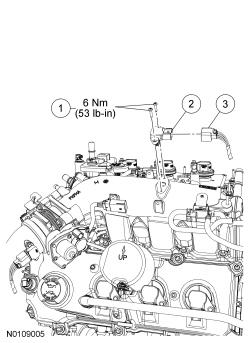

Fig 1: Manifold Absolute Pressure (MAP) / Intake Air Temperature 2 (IAT2) Sensor Replacement Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W505565 | Manifold Absolute Pressure (MAP) / Intake Air Temperature 2 (IAT2) sensor screws |
| 2 | 9F479 | MAP / IAT2 sensor |
| 3 | 14A464 | MAP / IAT2 sensor electrical connector |
