Removal And Installation

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For parts identification and location, refer to Seat - Exploded View, Second Row  in this service information.

  1. 1.

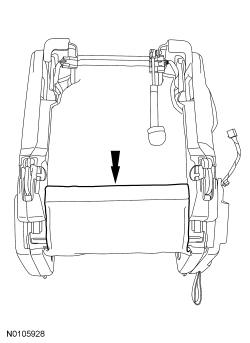

    Separate the J-clips and open the cushion cover.
GFD95613Courtesy of FORD MOTOR COMPANY

  1. 2.

    Remove the Dual Climate Controlled Seat Module (DCSM) in the following sequence.
    • Pull up and release the 2 locking wedges.
    • Disconnect the electrical connectors.
    • Remove the 2 screws.
    • Remove the DCSM.
GFD95561Courtesy of FORD MOTOR COMPANY

  1. 3.

    To install, reverse the removal procedure.
