Power Liftgate

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

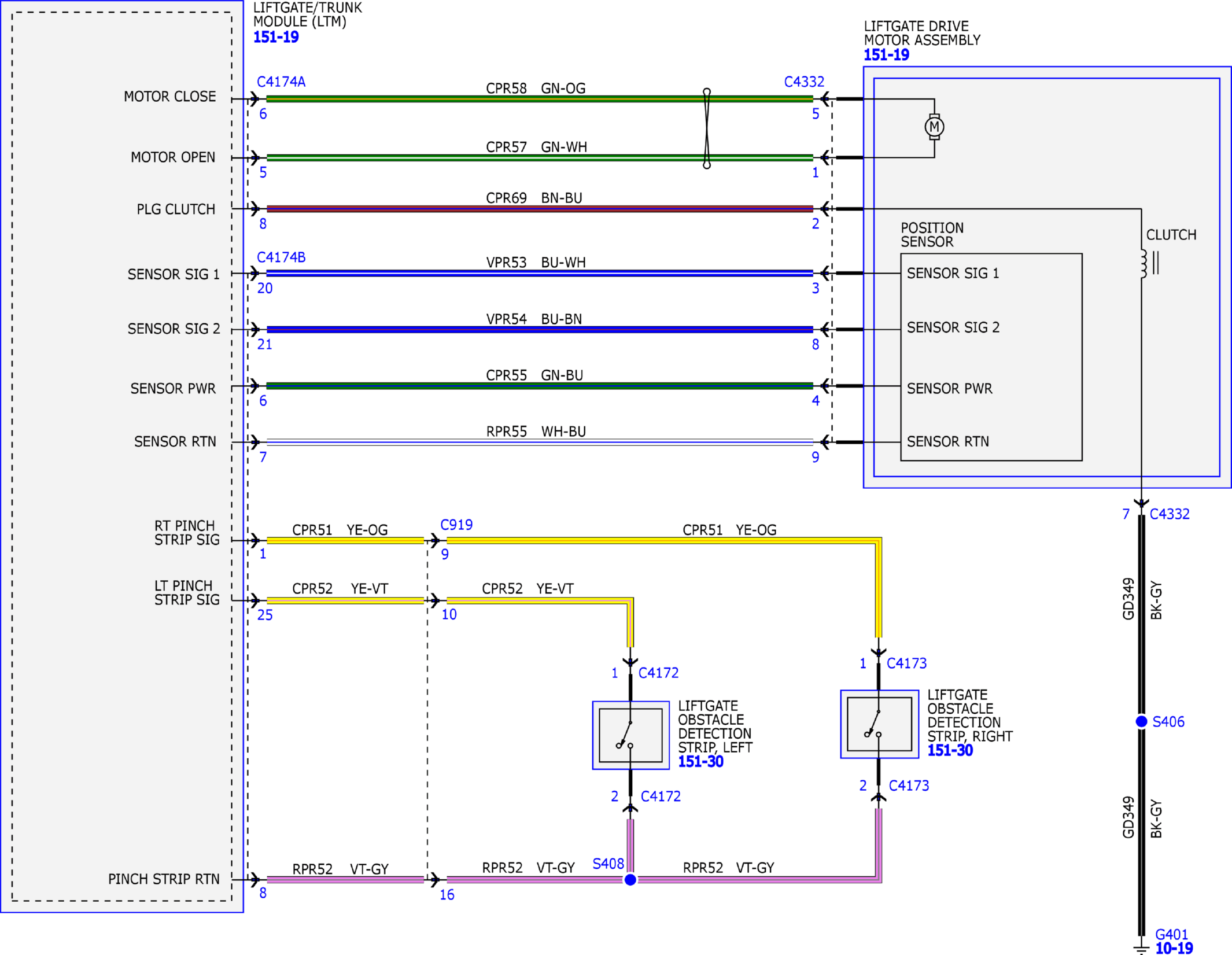

Fig 1: Power Liftgate Wiring Diagram (1 of 4)

Courtesy of FORD MOTOR COMPANY

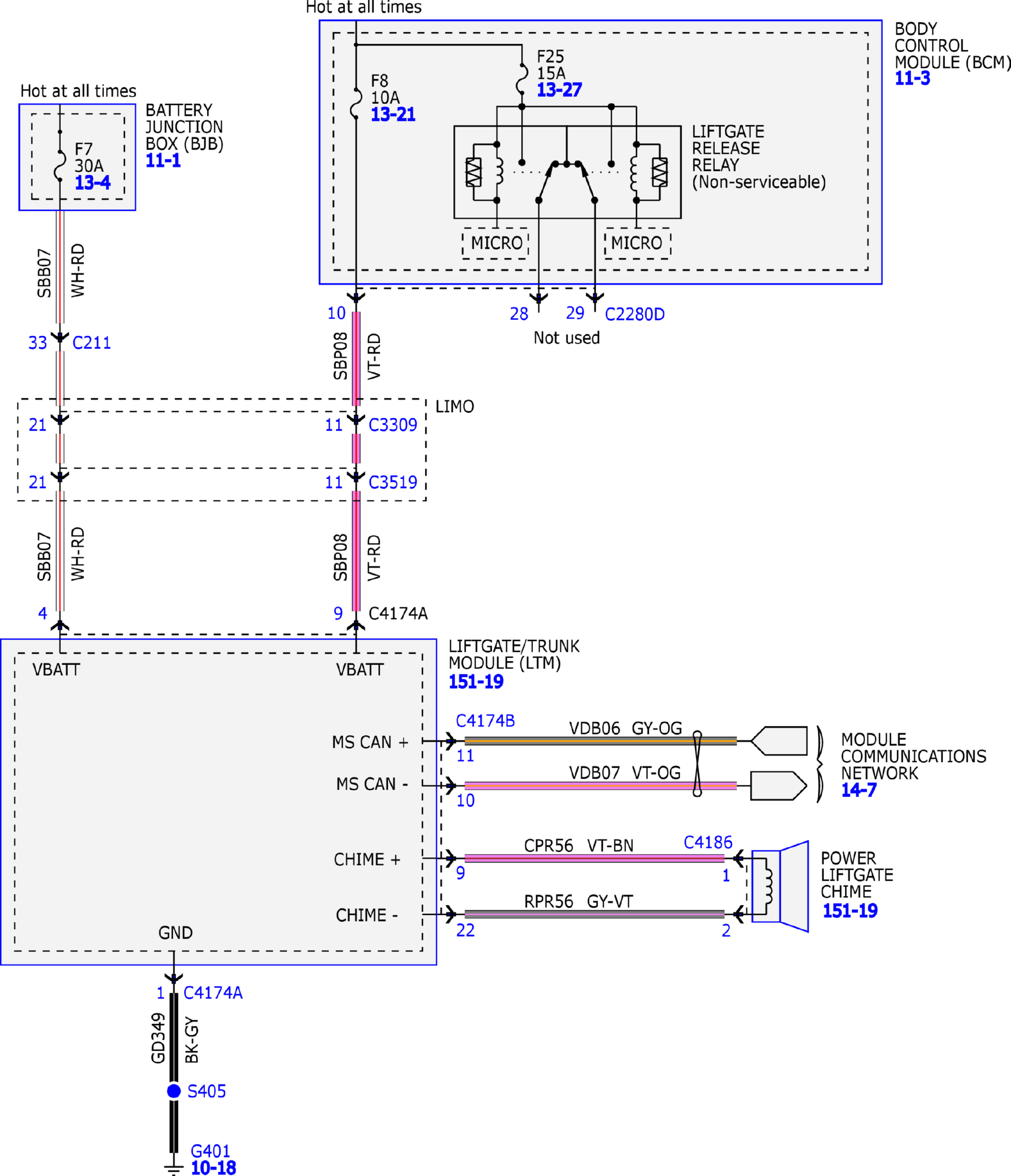

Fig 2: Power Liftgate Wiring Diagram (2 of 4)

Courtesy of FORD MOTOR COMPANY

Fig 3: Power Liftgate Wiring Diagram (3 of 4)

Courtesy of FORD MOTOR COMPANY

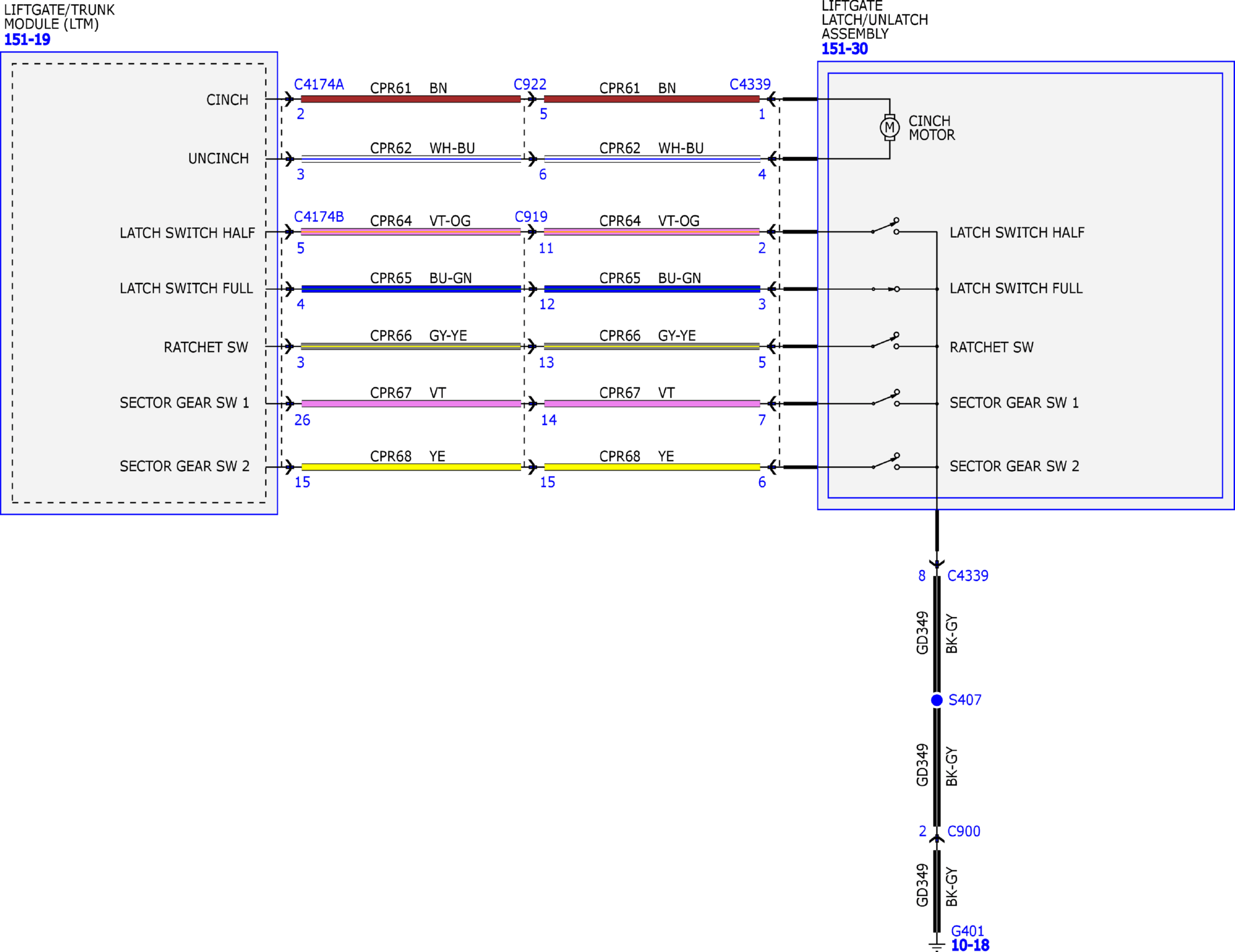

Fig 4: Power Liftgate Wiring Diagram (4 of 4)

Courtesy of FORD MOTOR COMPANY
