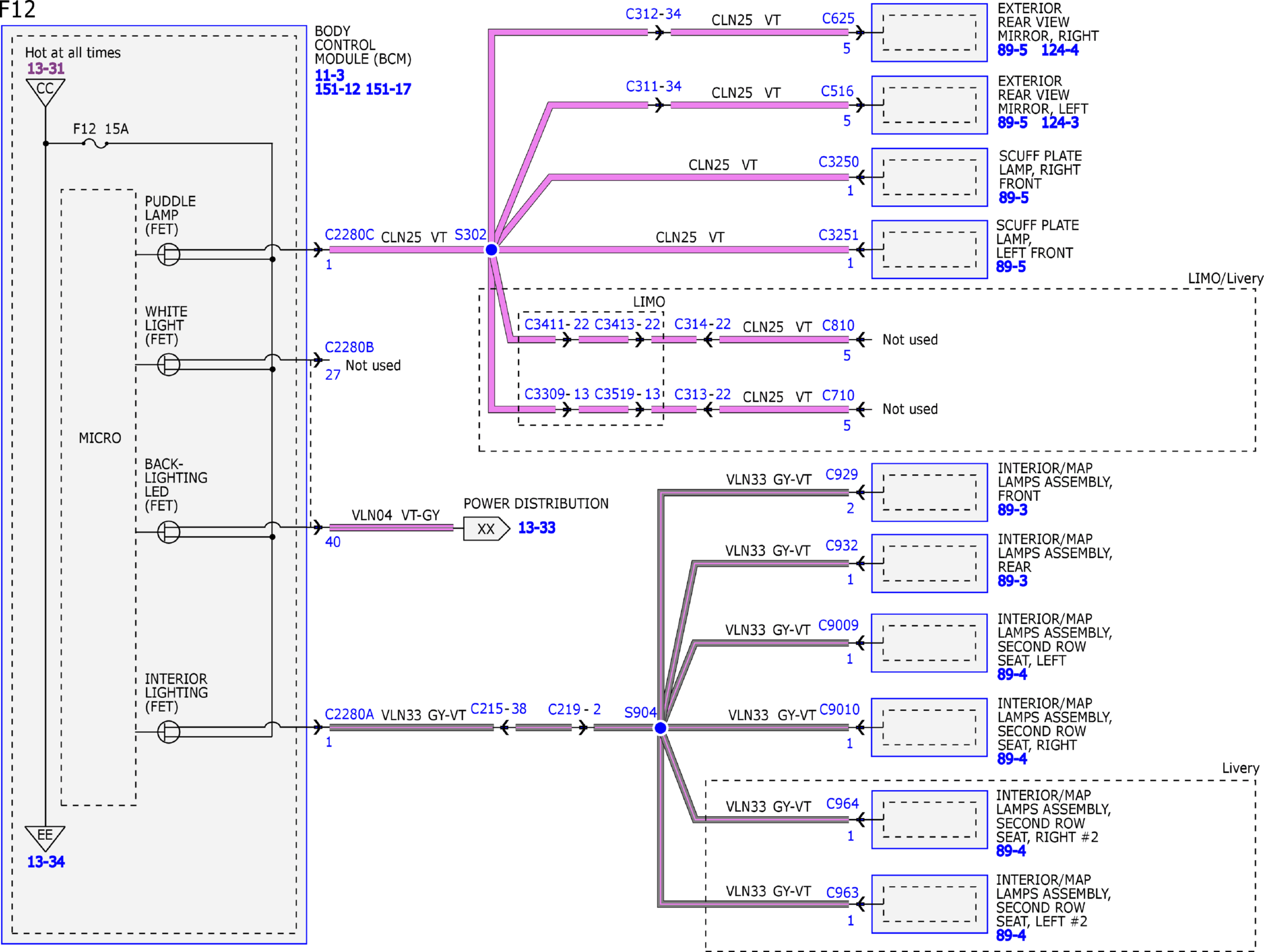

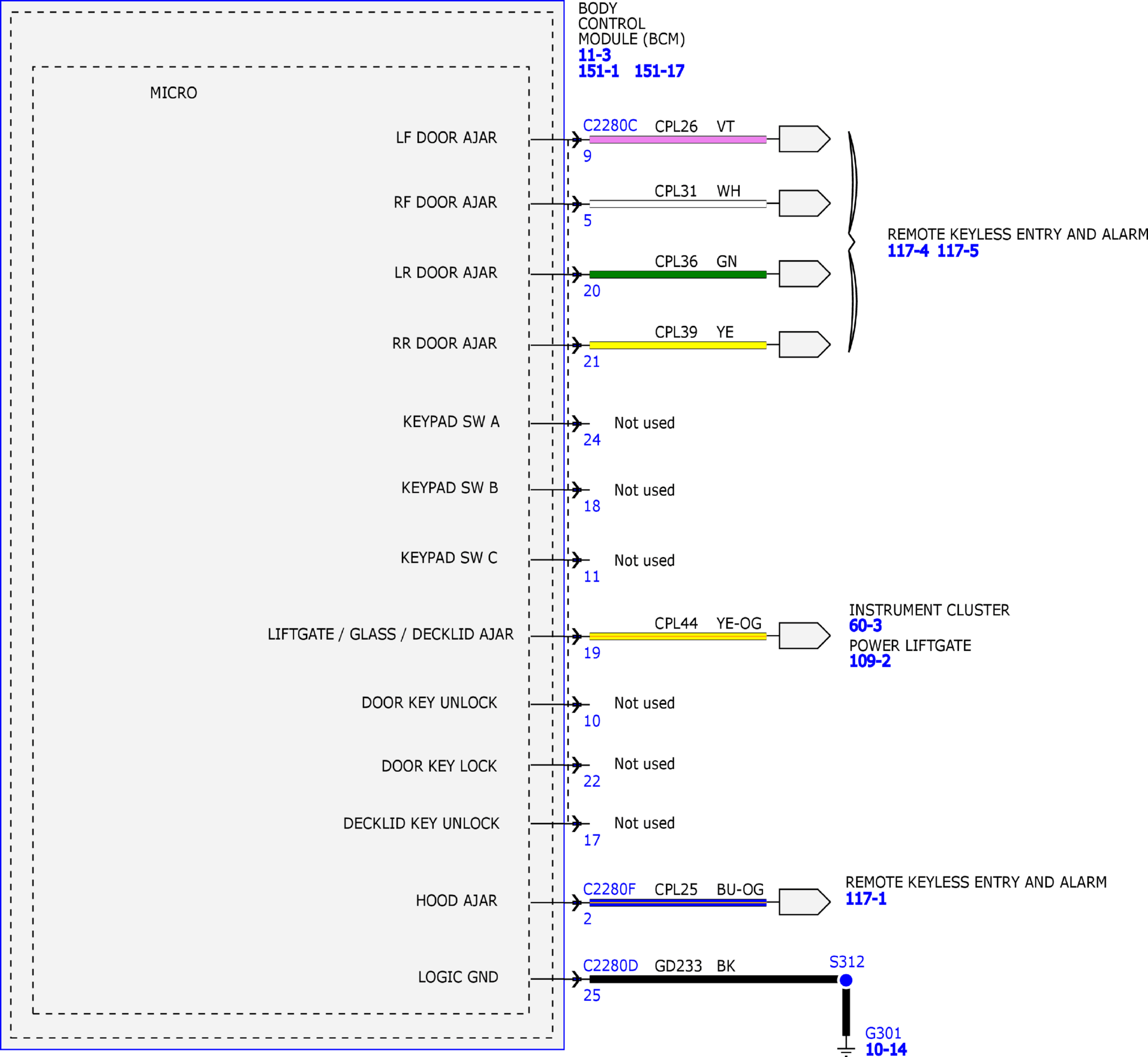

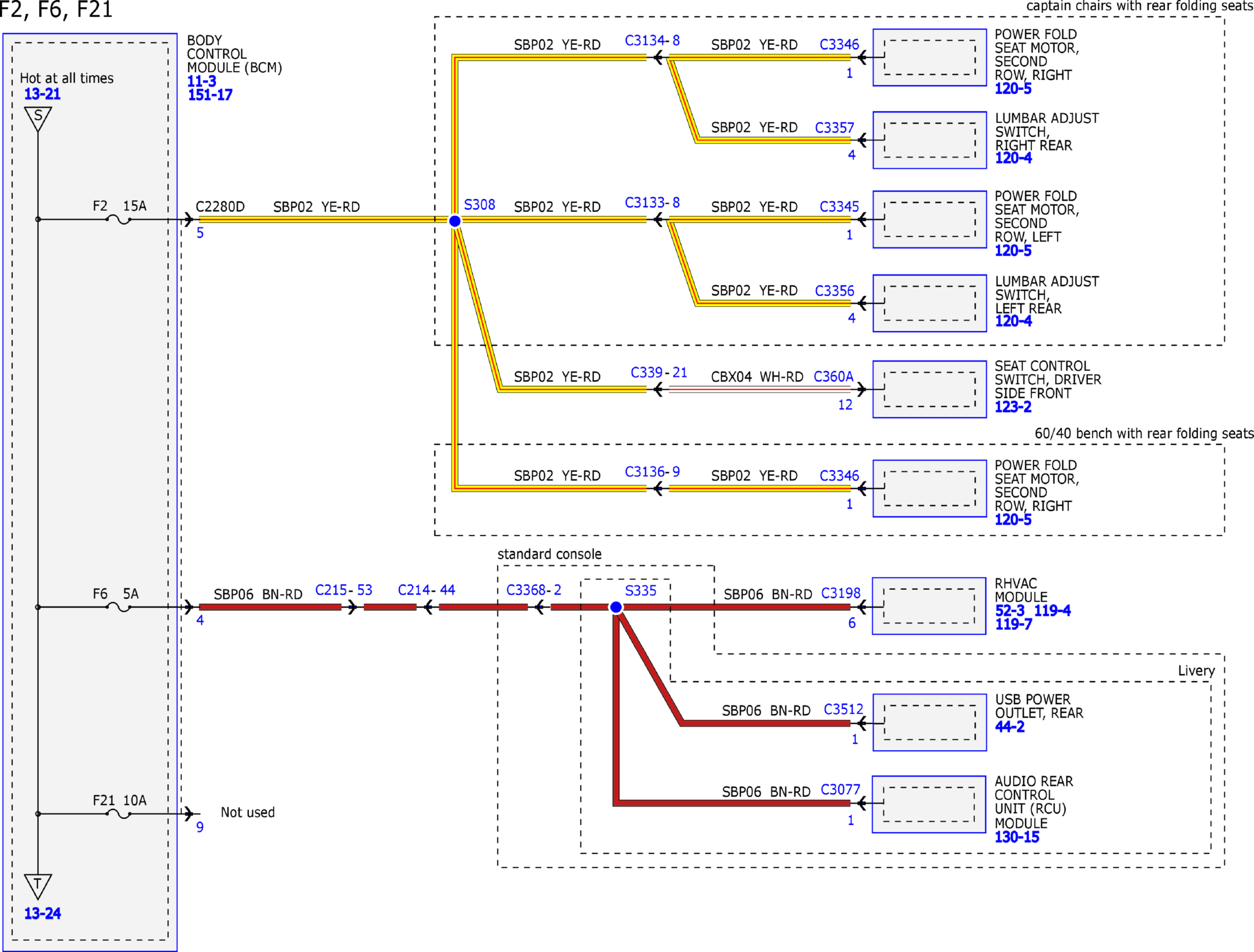

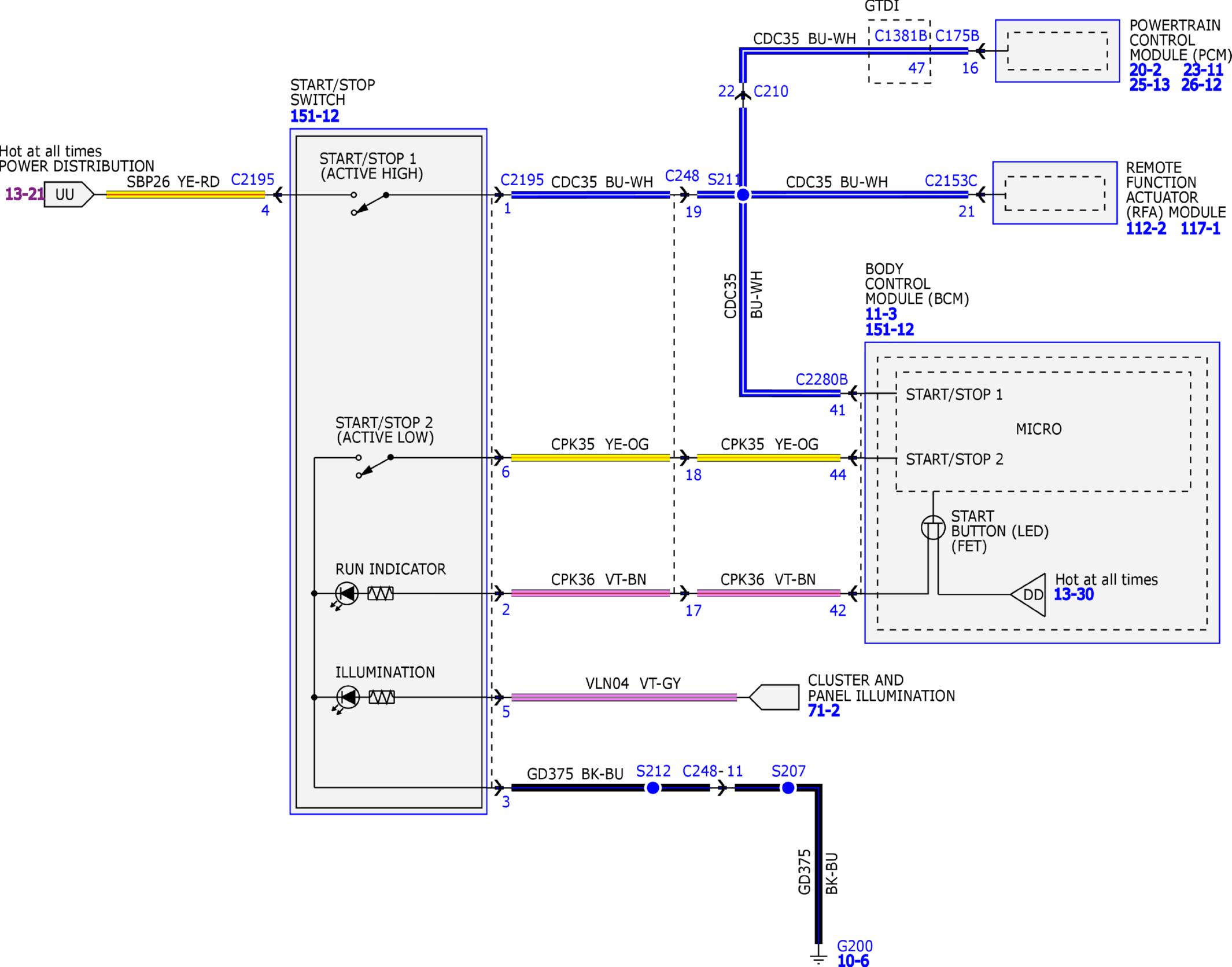

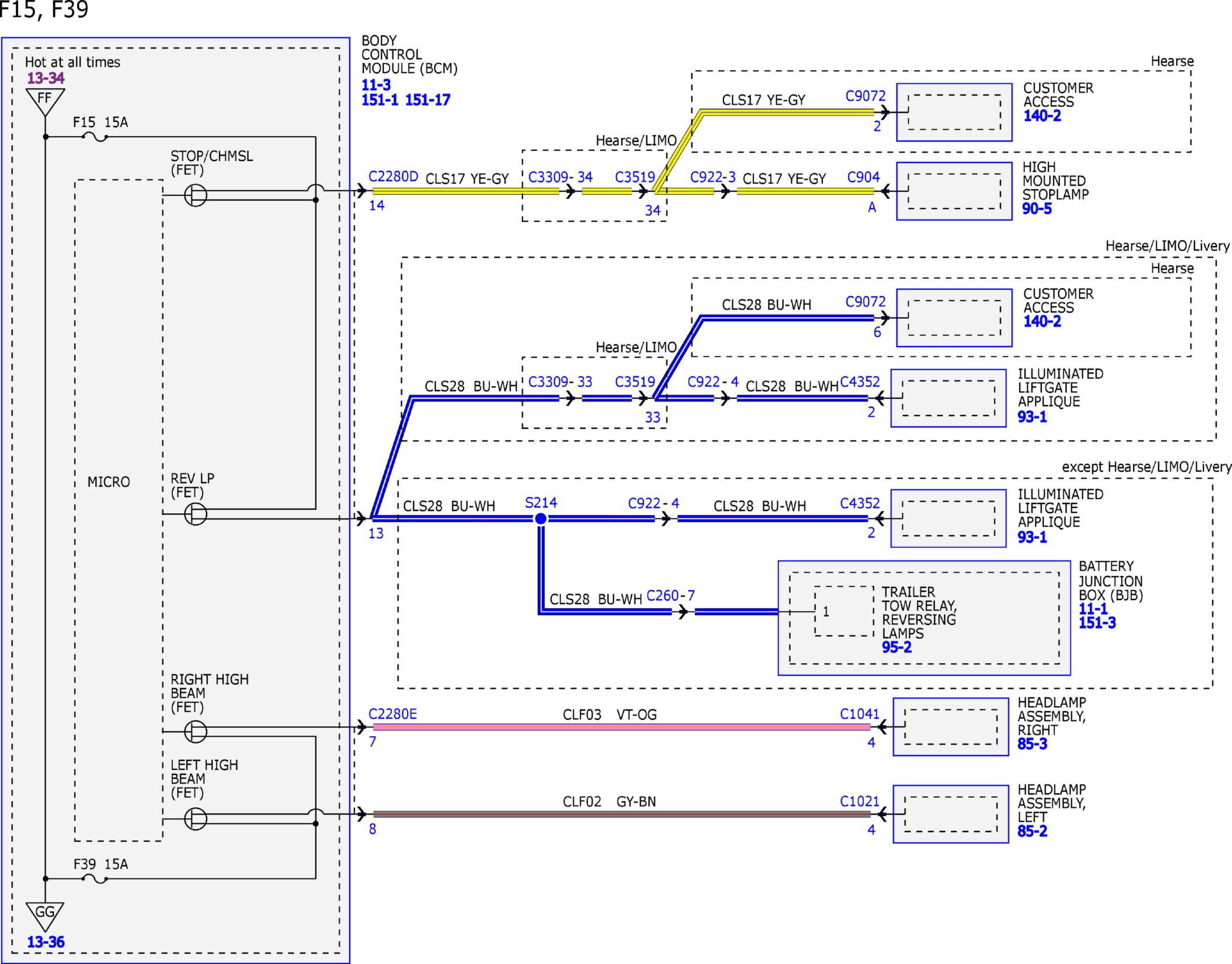

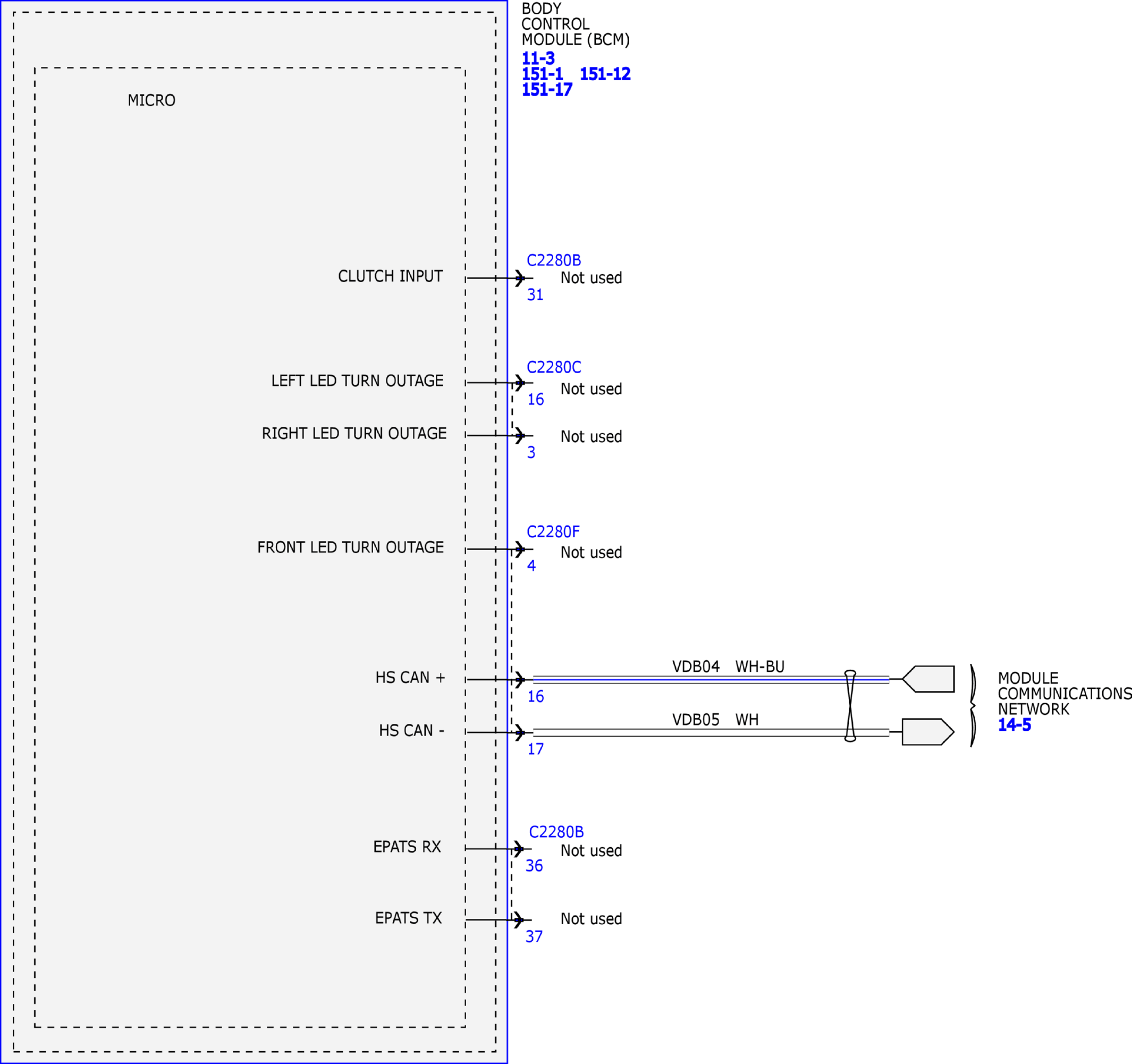

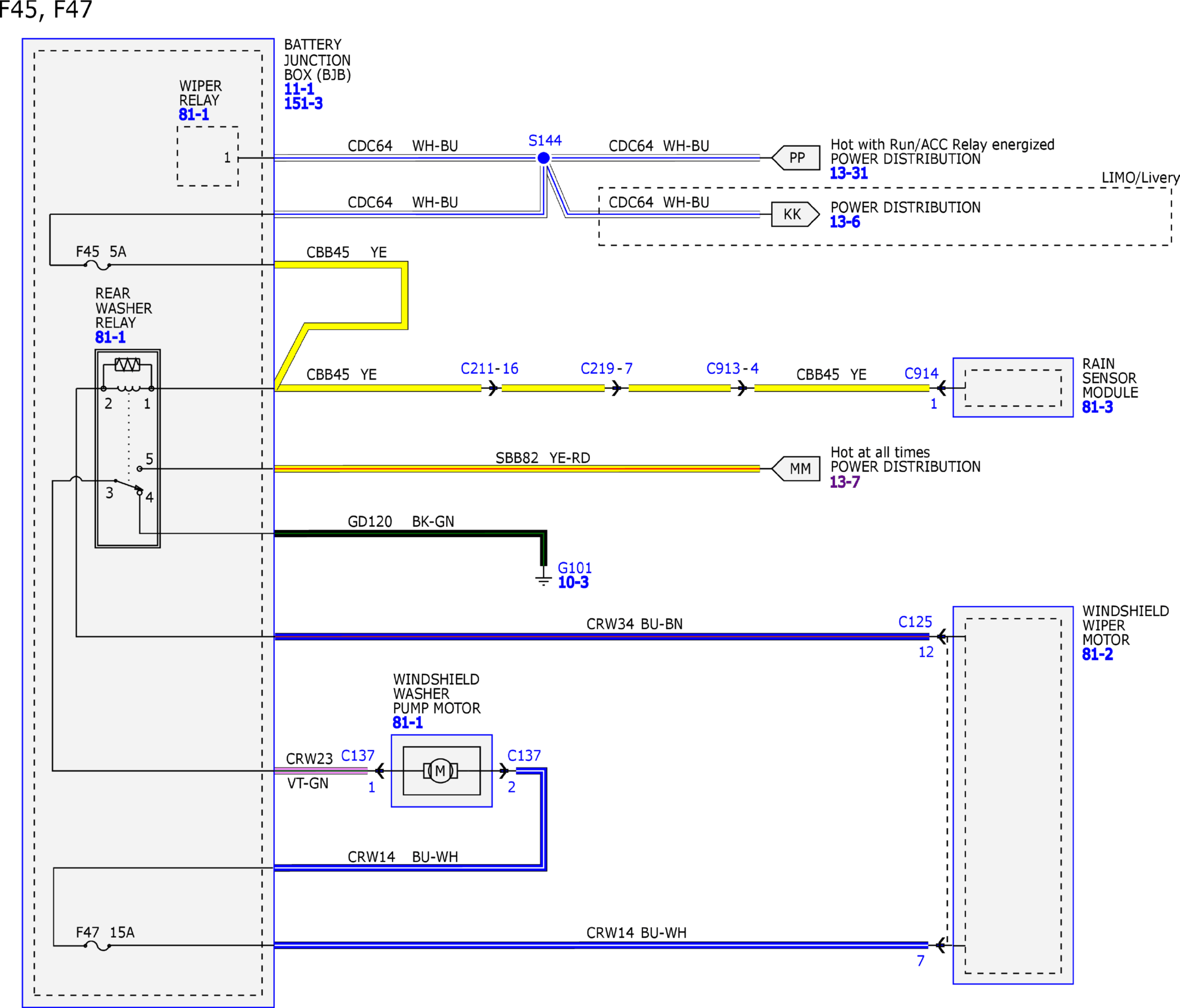

Fig 1: Power Distribution Wiring Diagram (1 of 42)
Courtesy of FORD MOTOR COMPANY

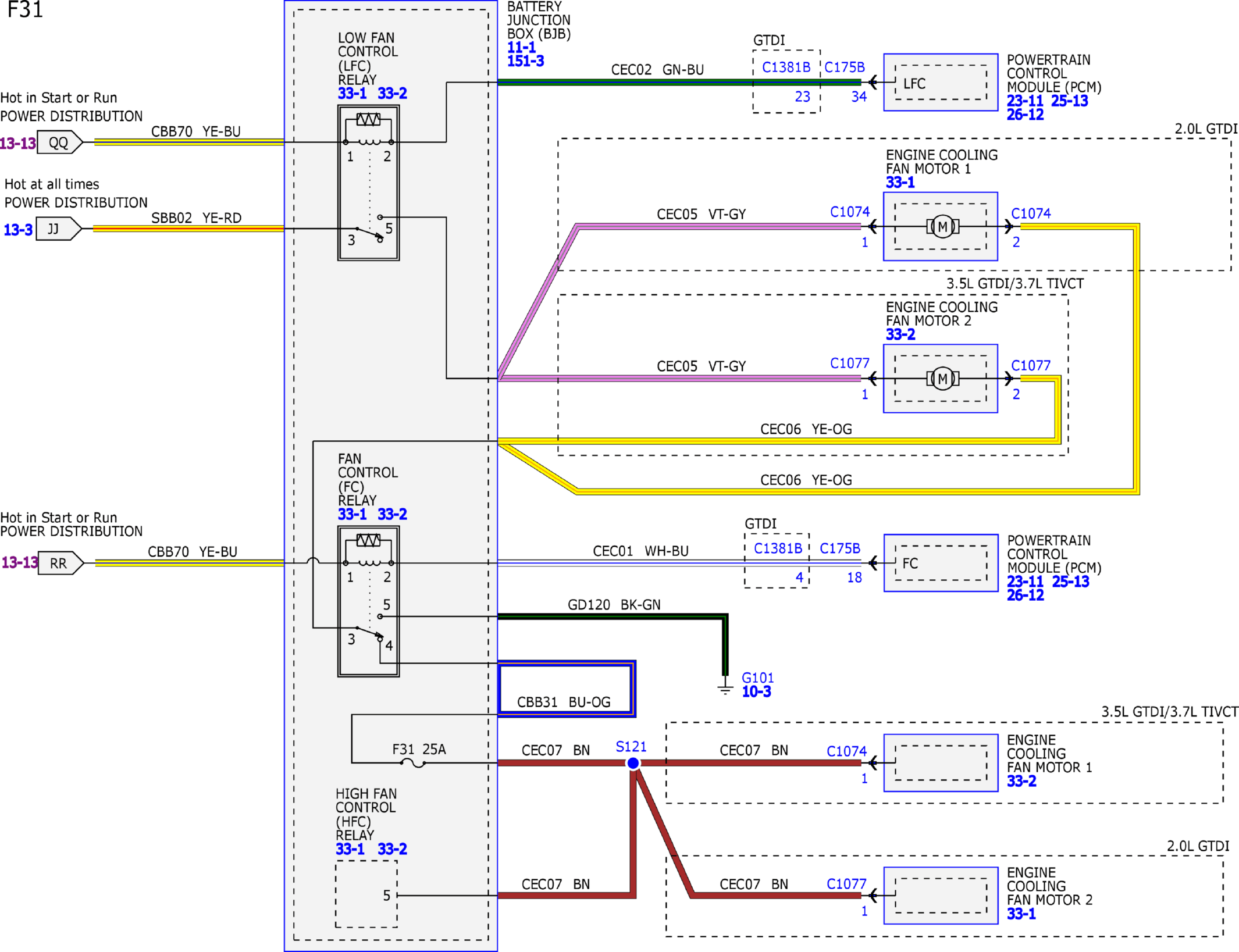

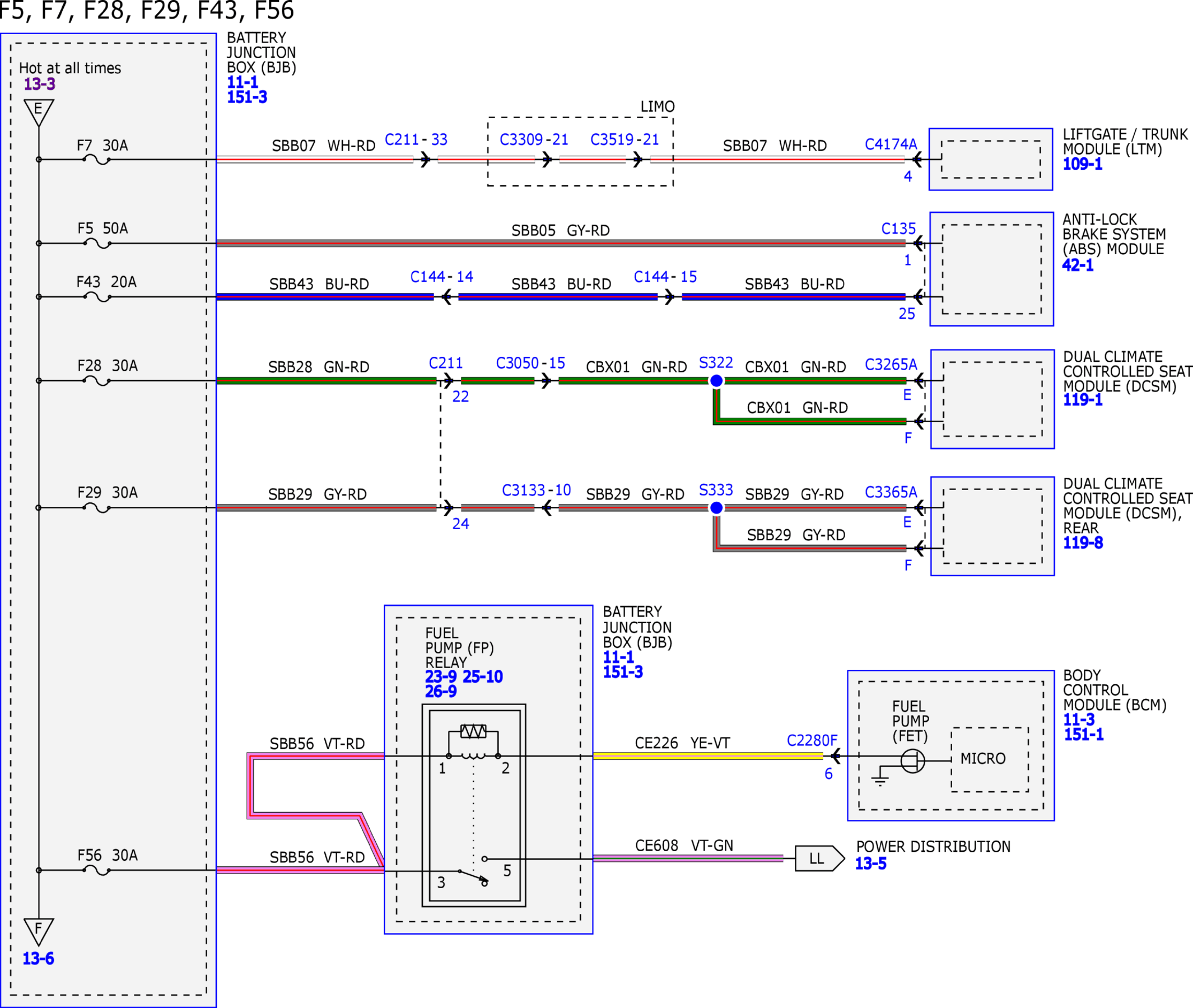

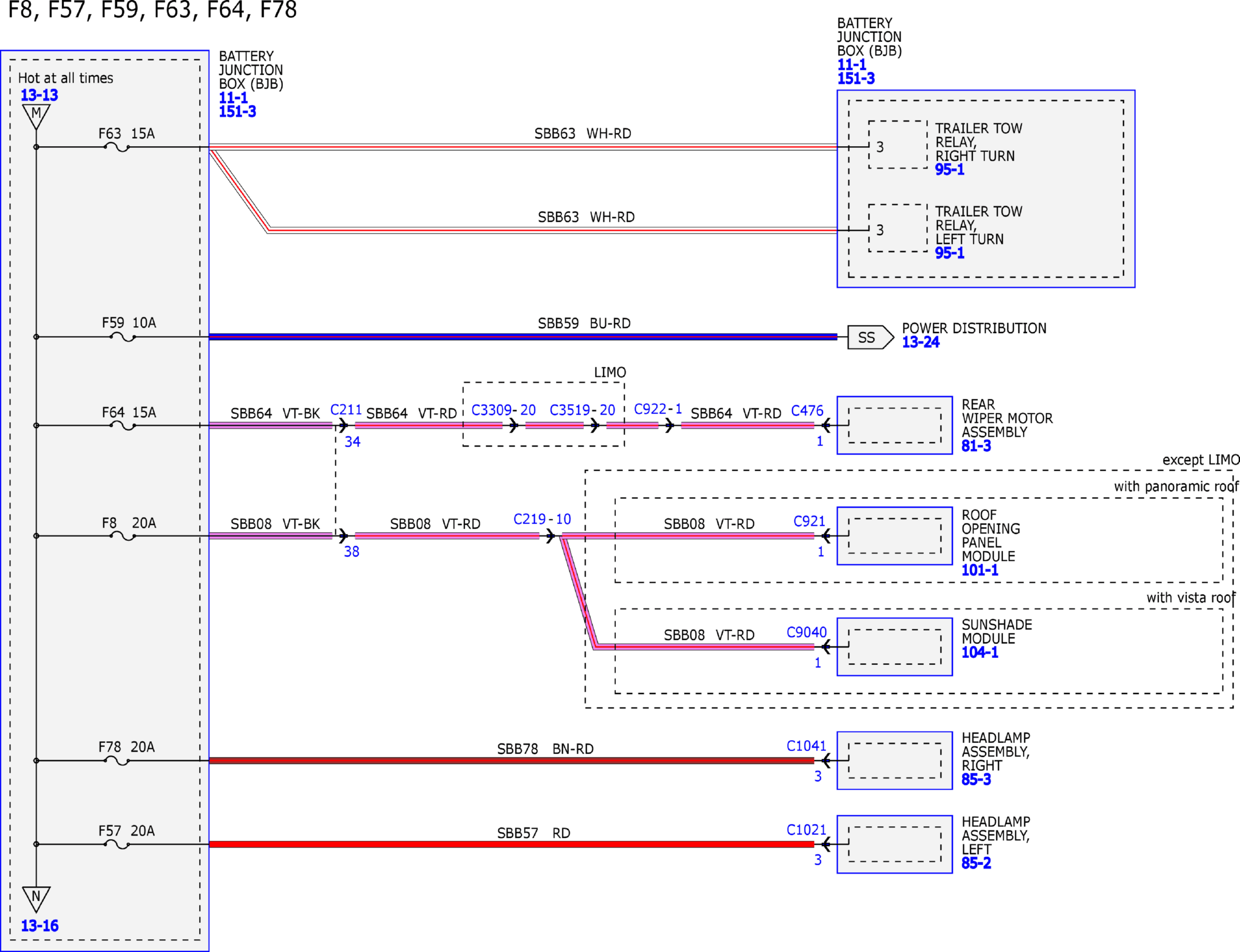

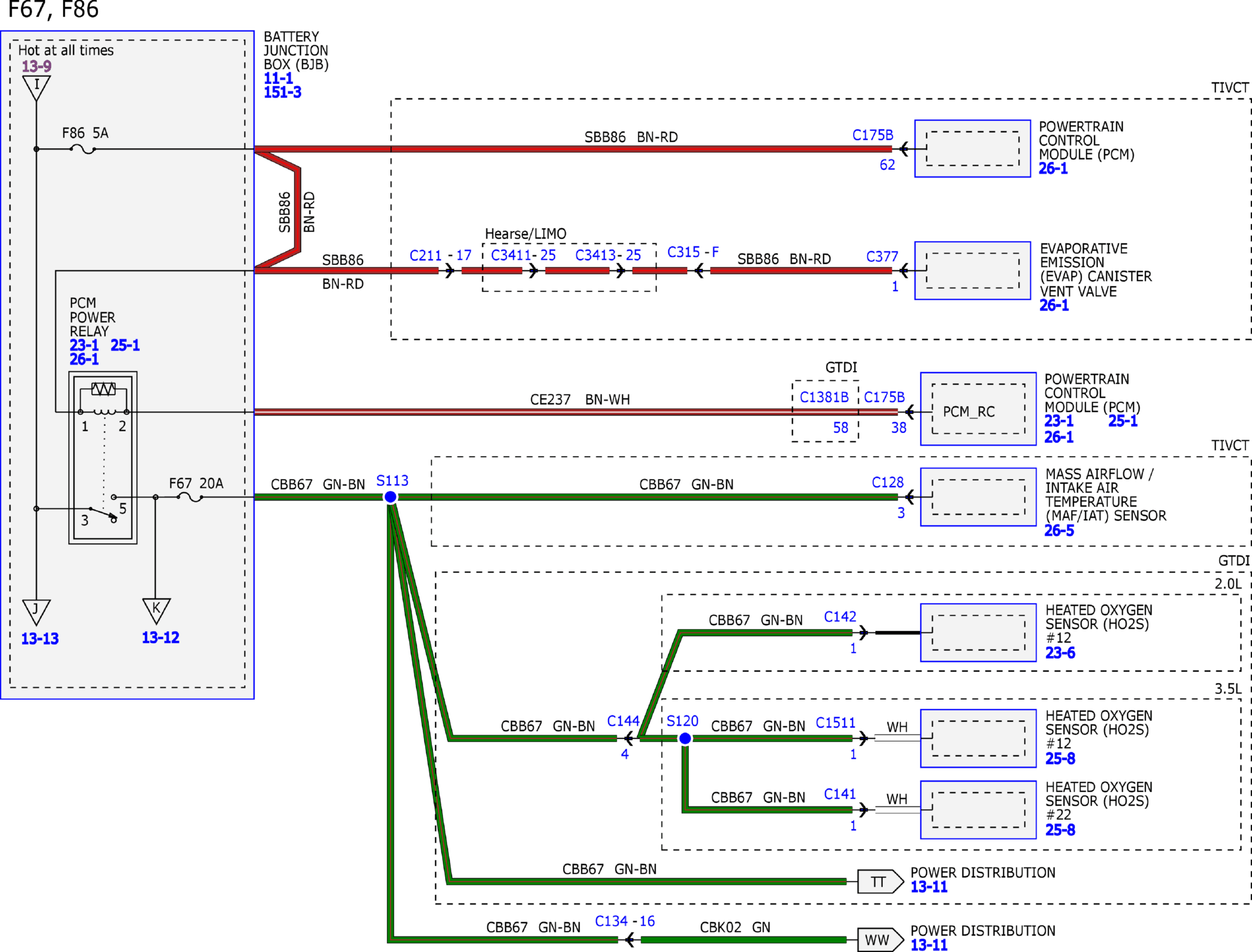

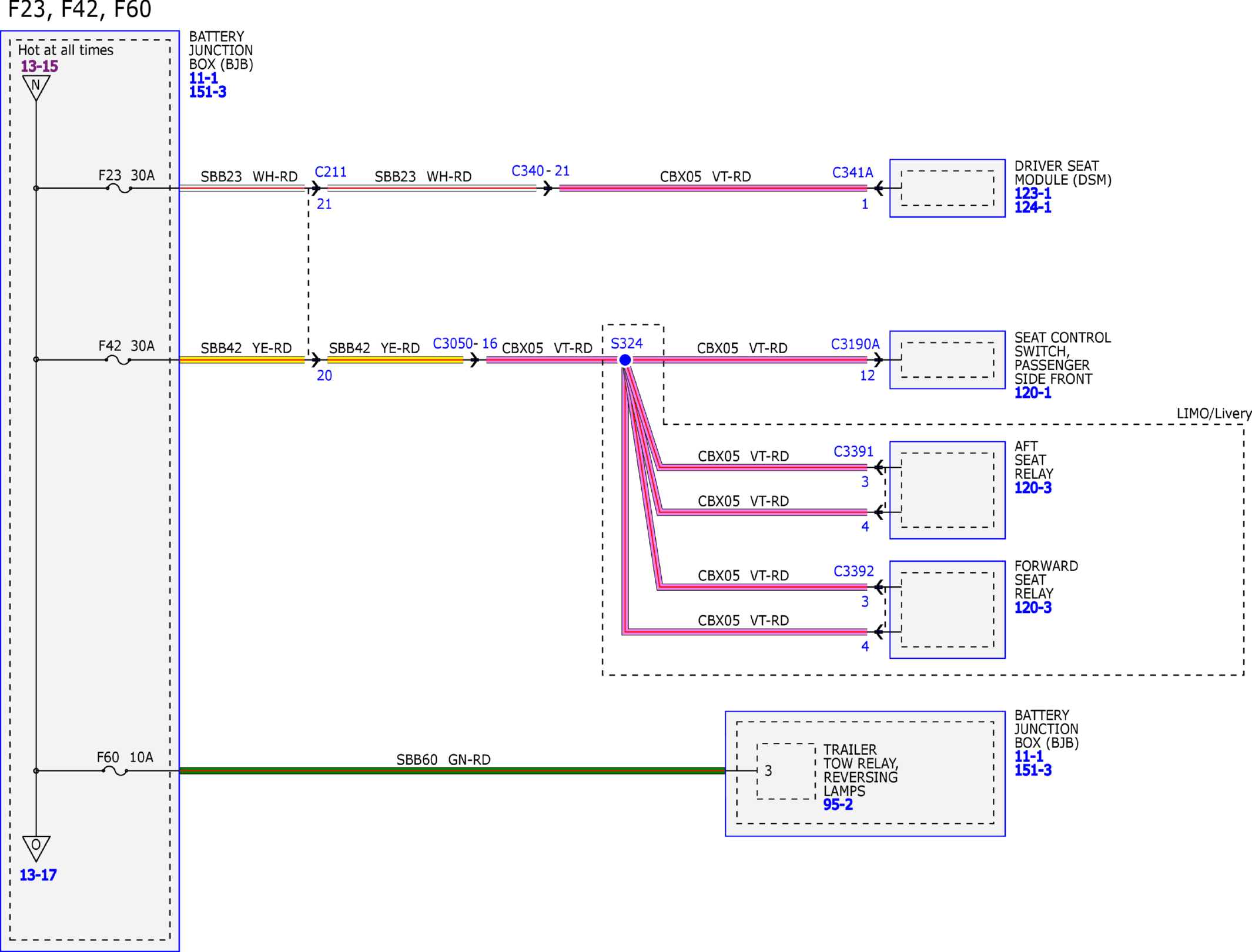

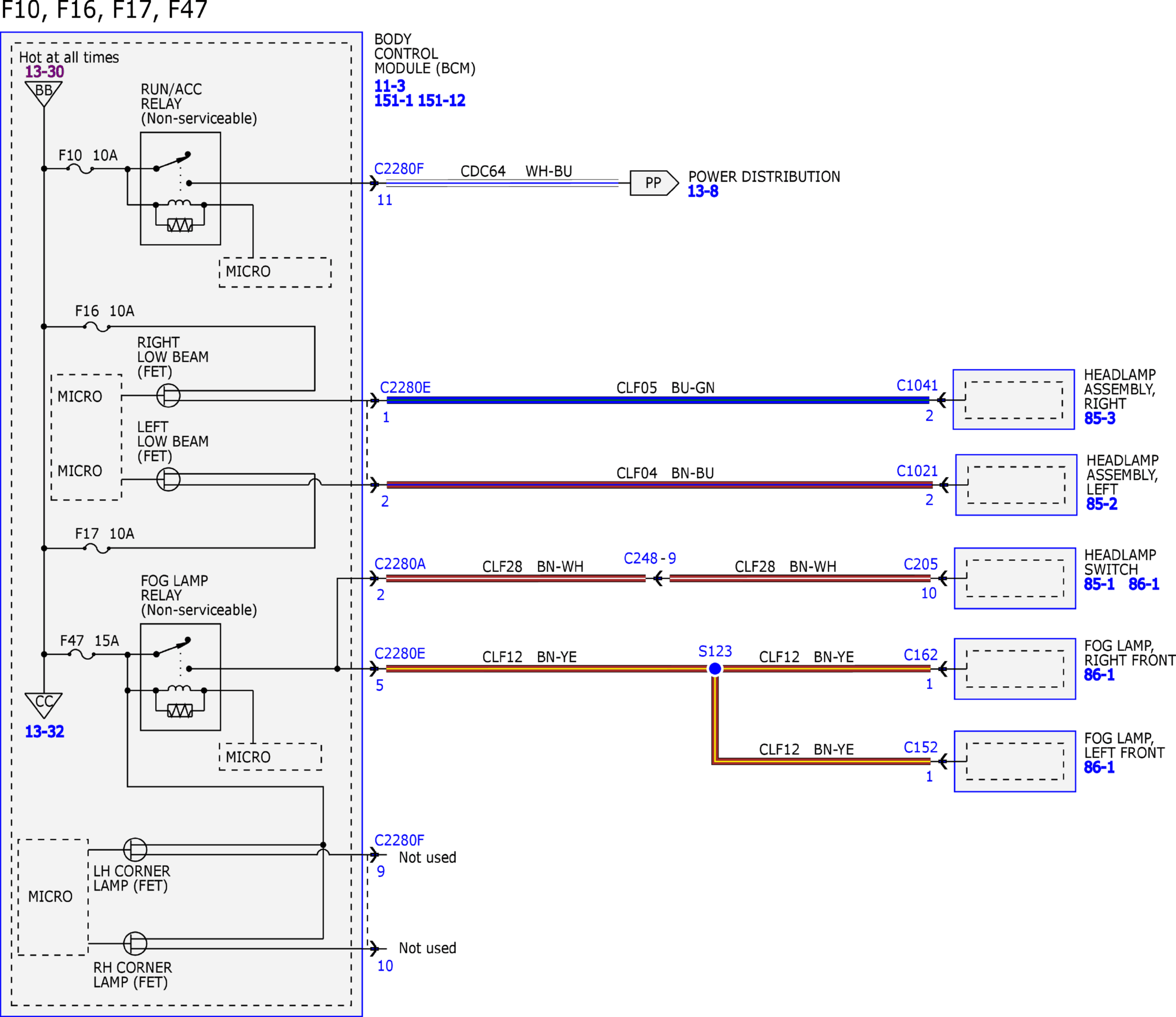

Fig 2: Power Distribution Wiring Diagram (2 of 42)
Courtesy of FORD MOTOR COMPANY

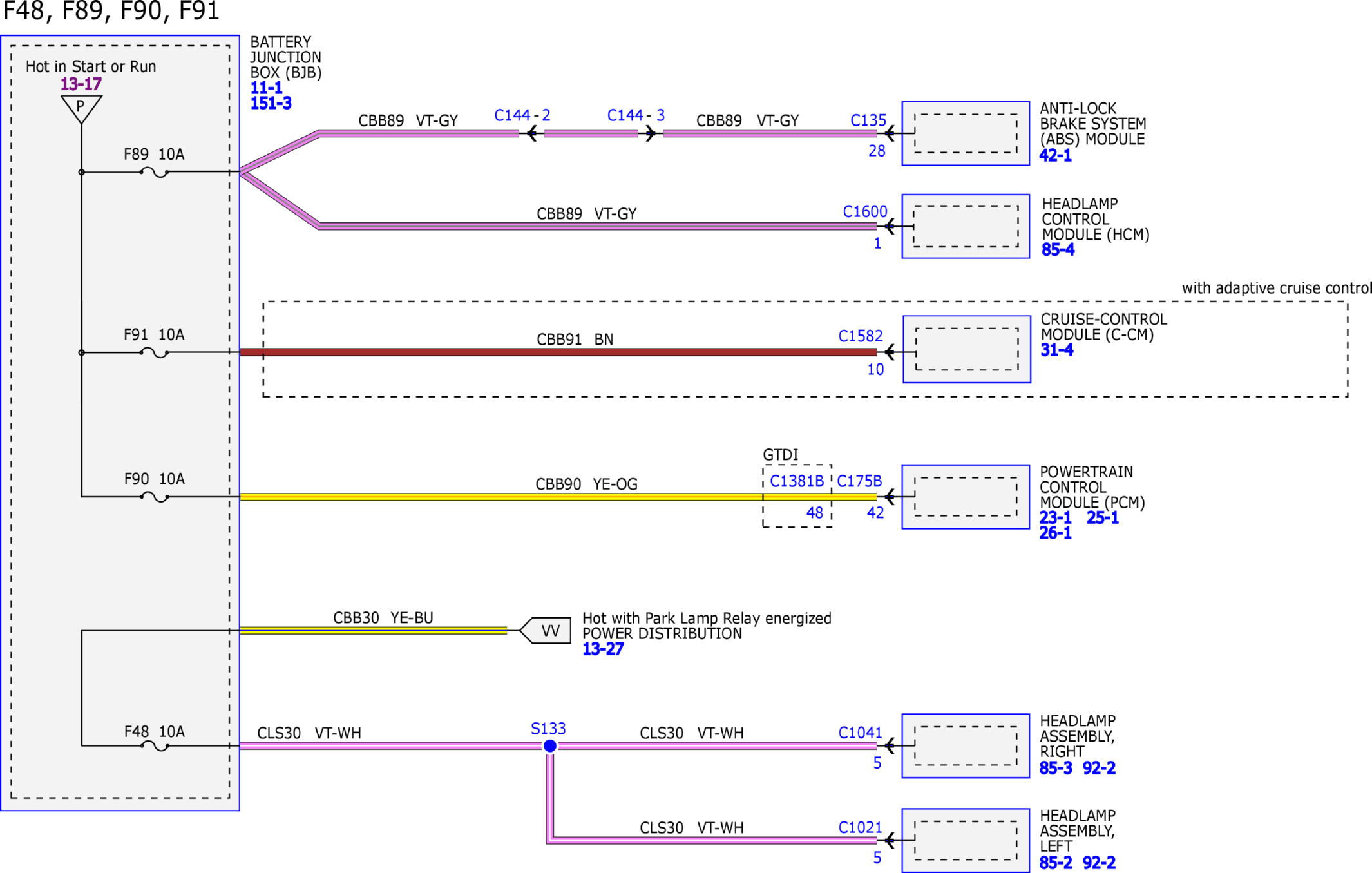

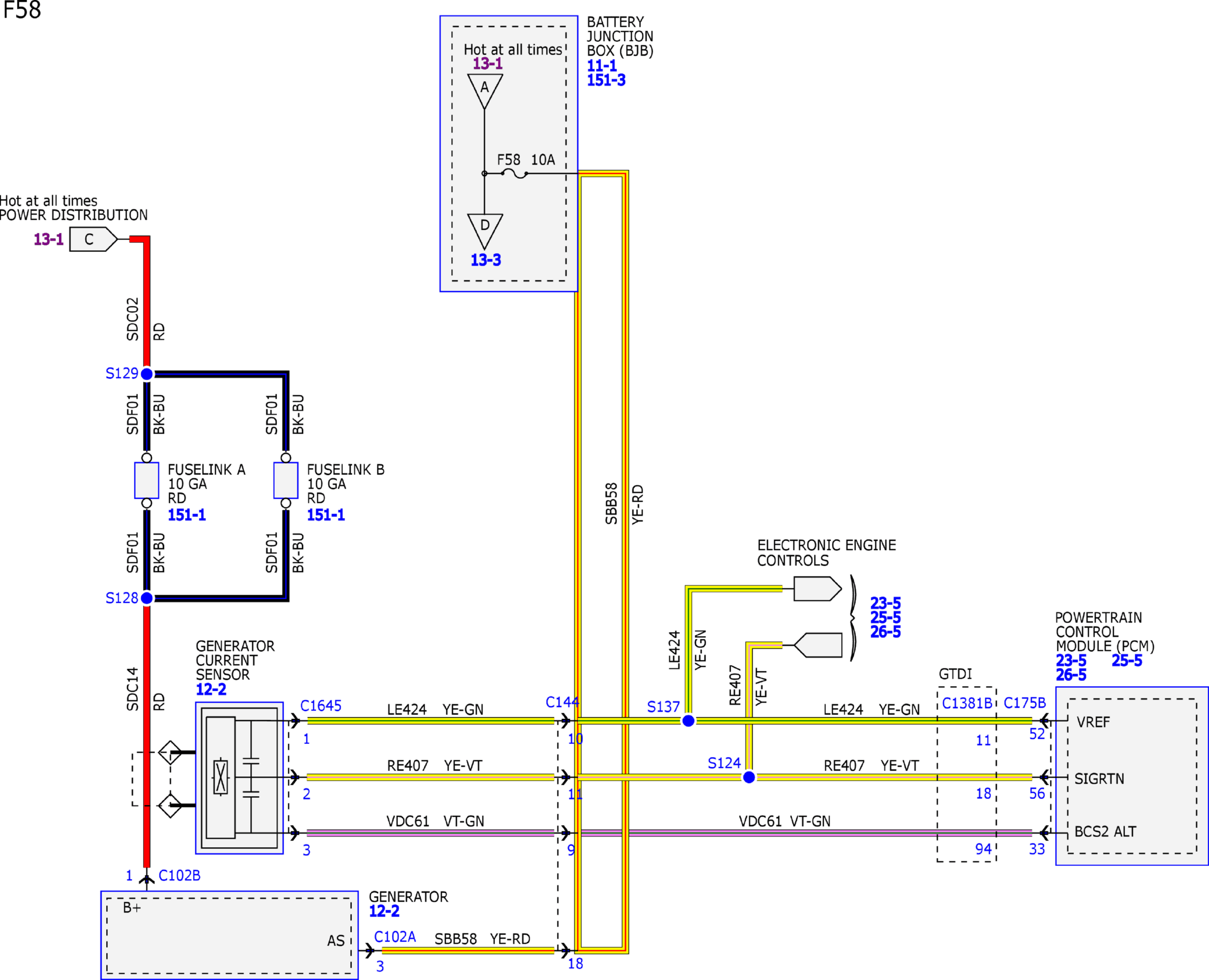

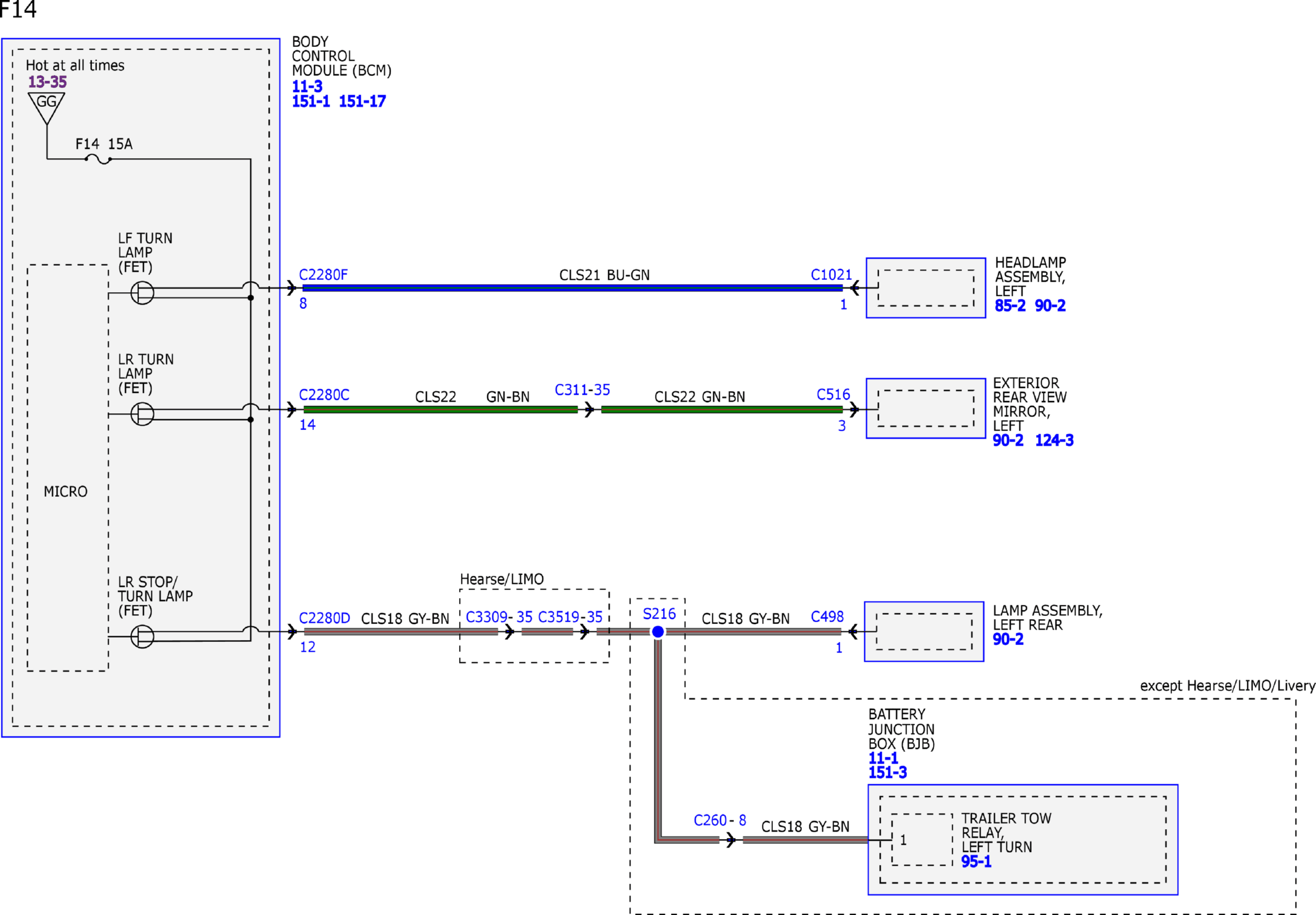

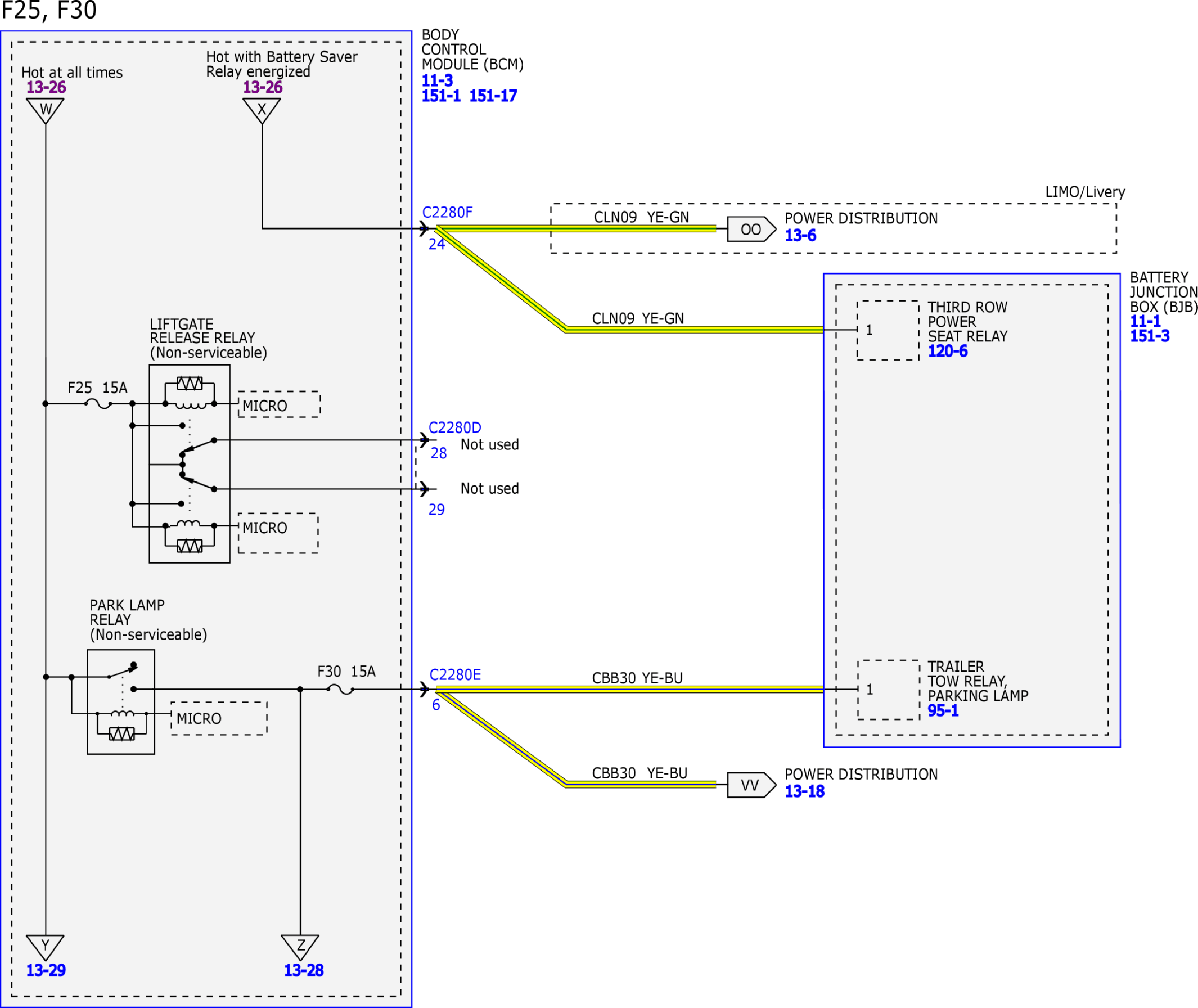

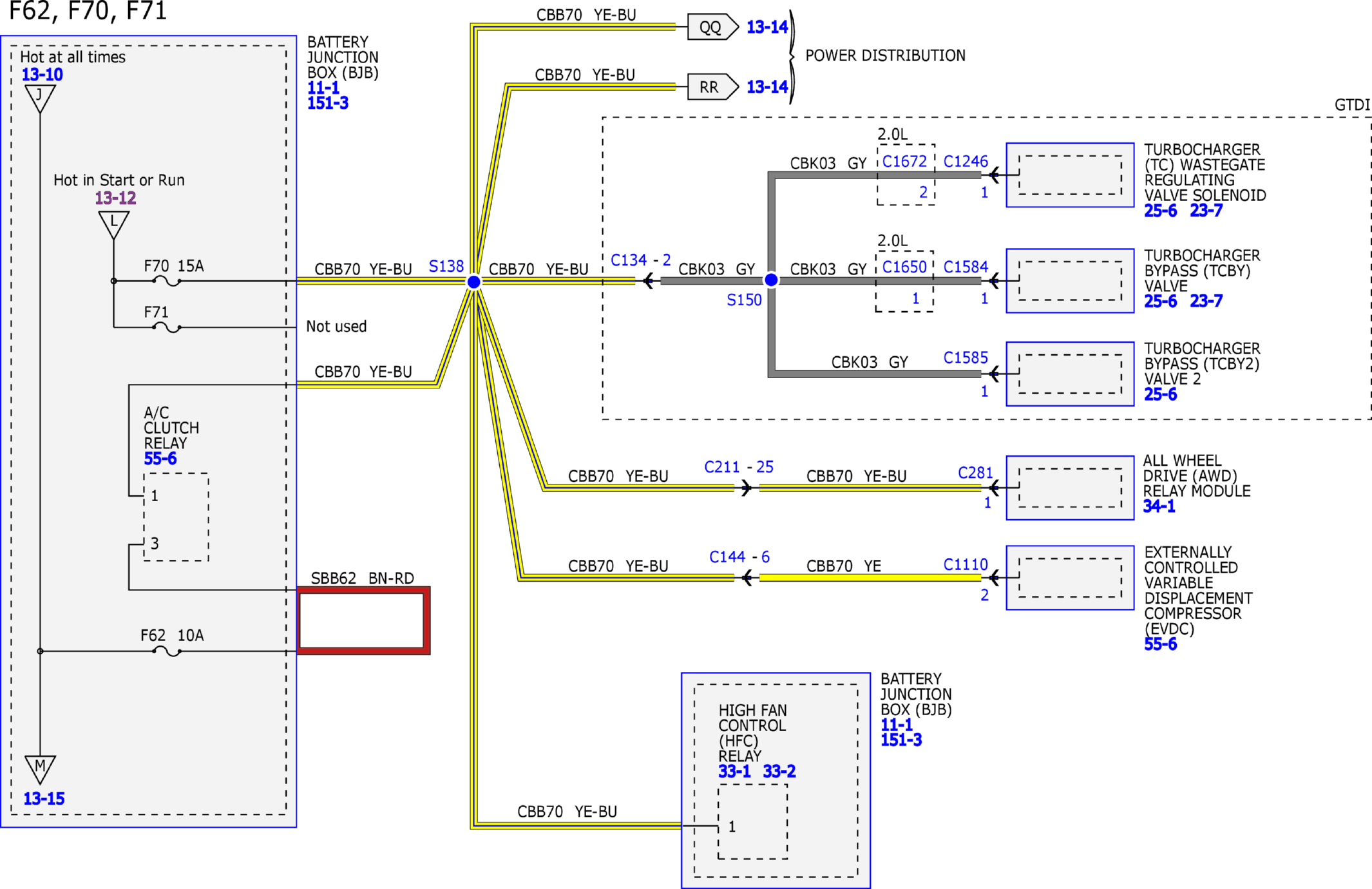

Fig 3: Power Distribution Wiring Diagram (3 of 42)
Courtesy of FORD MOTOR COMPANY

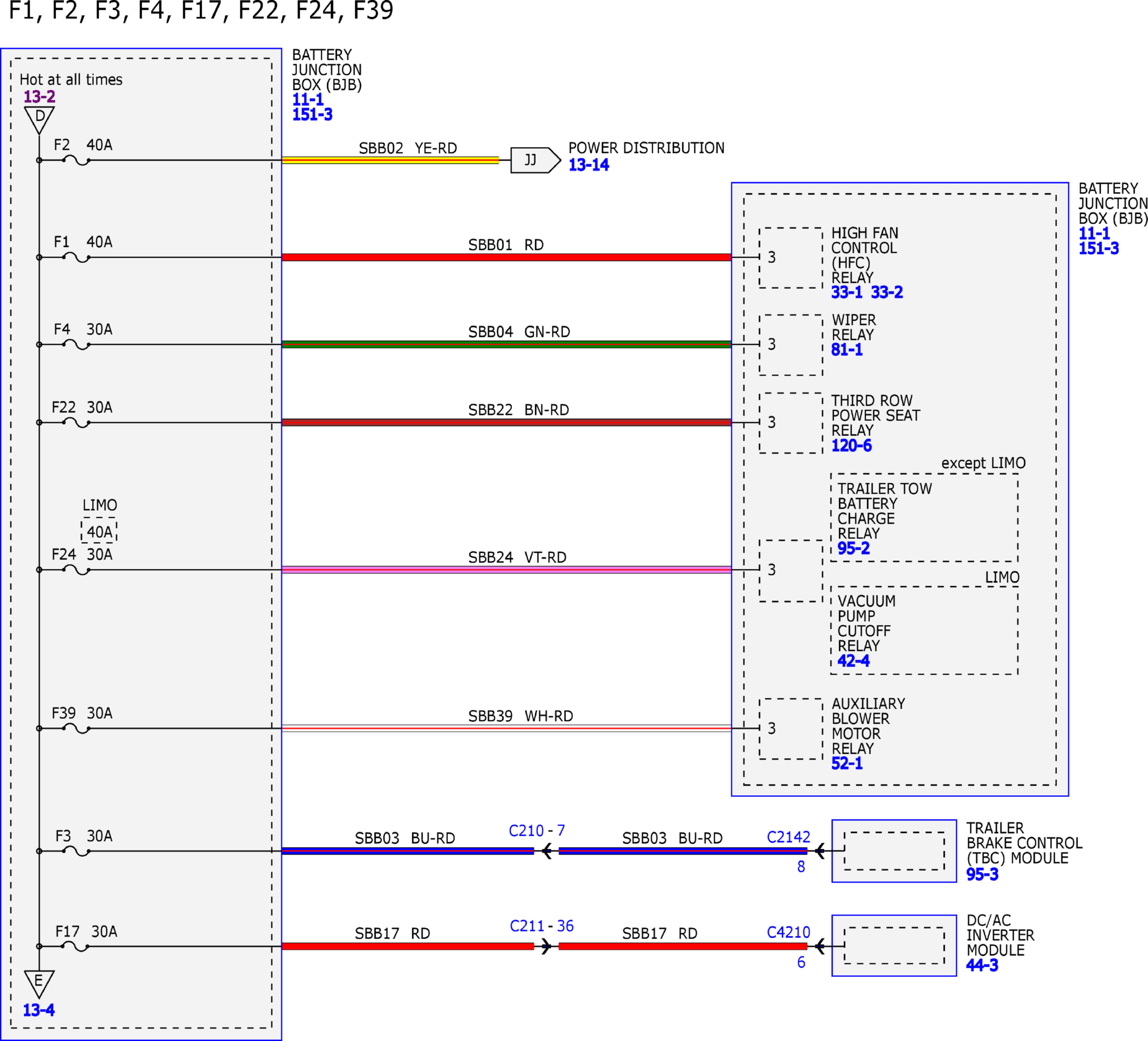

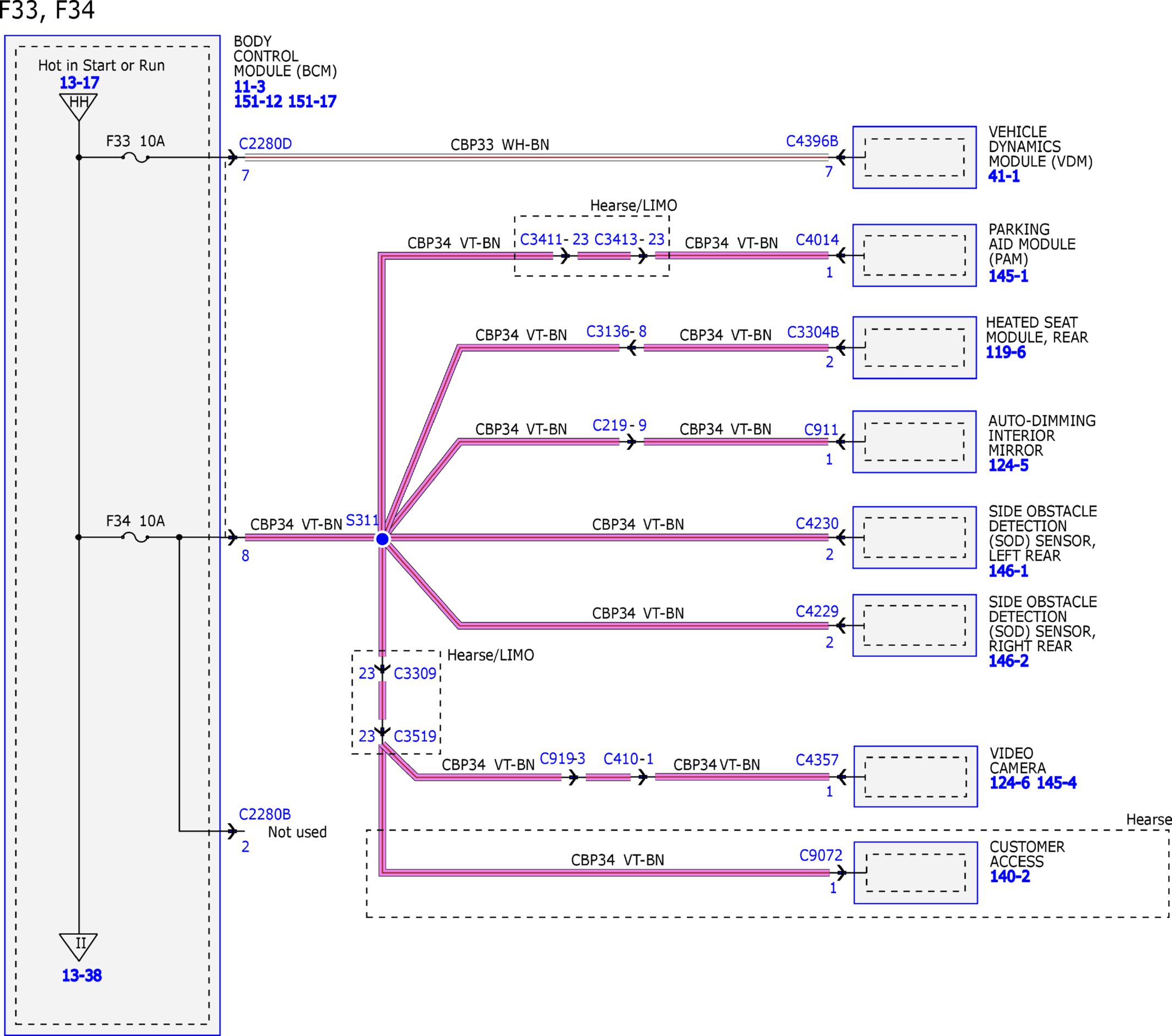

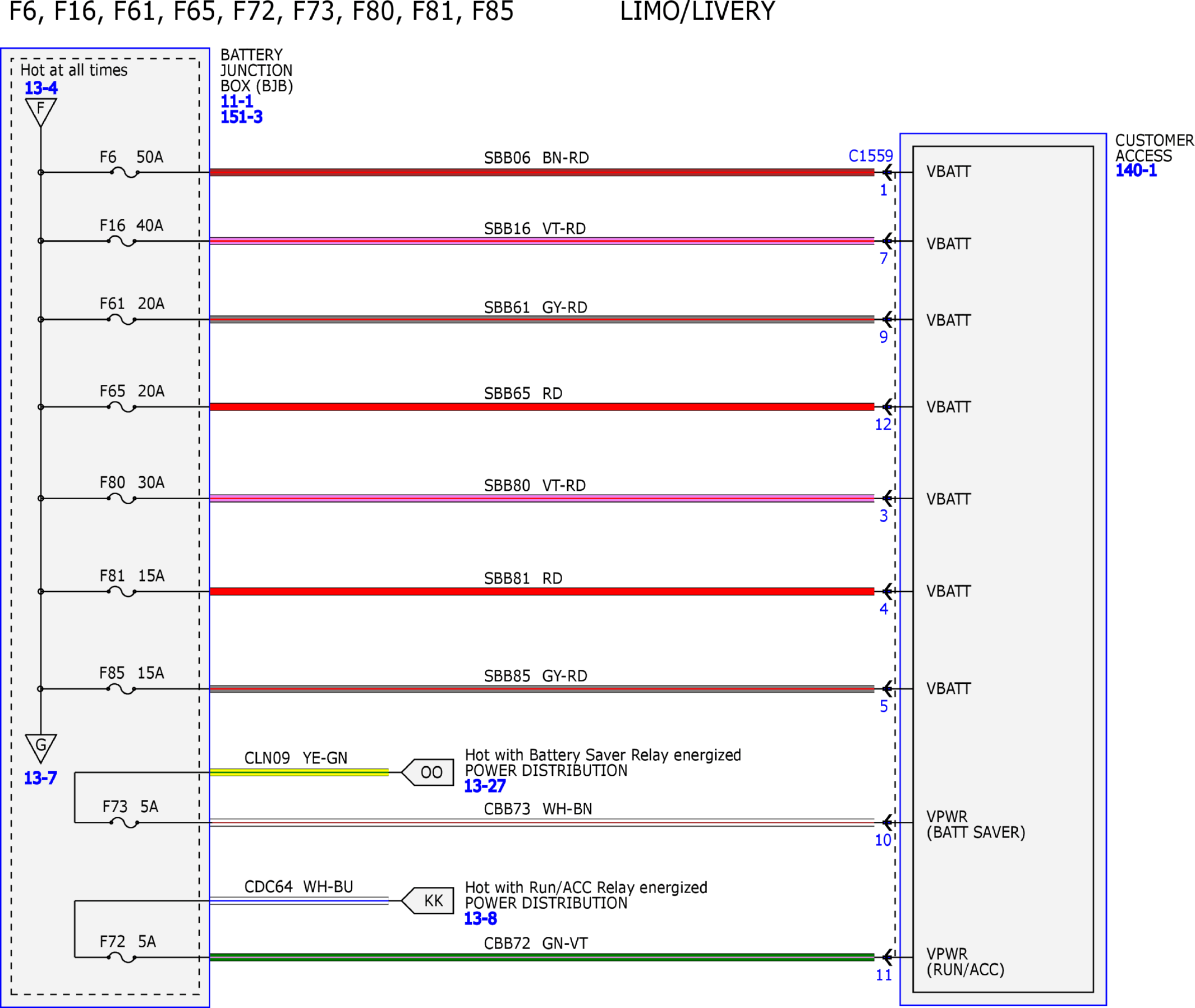

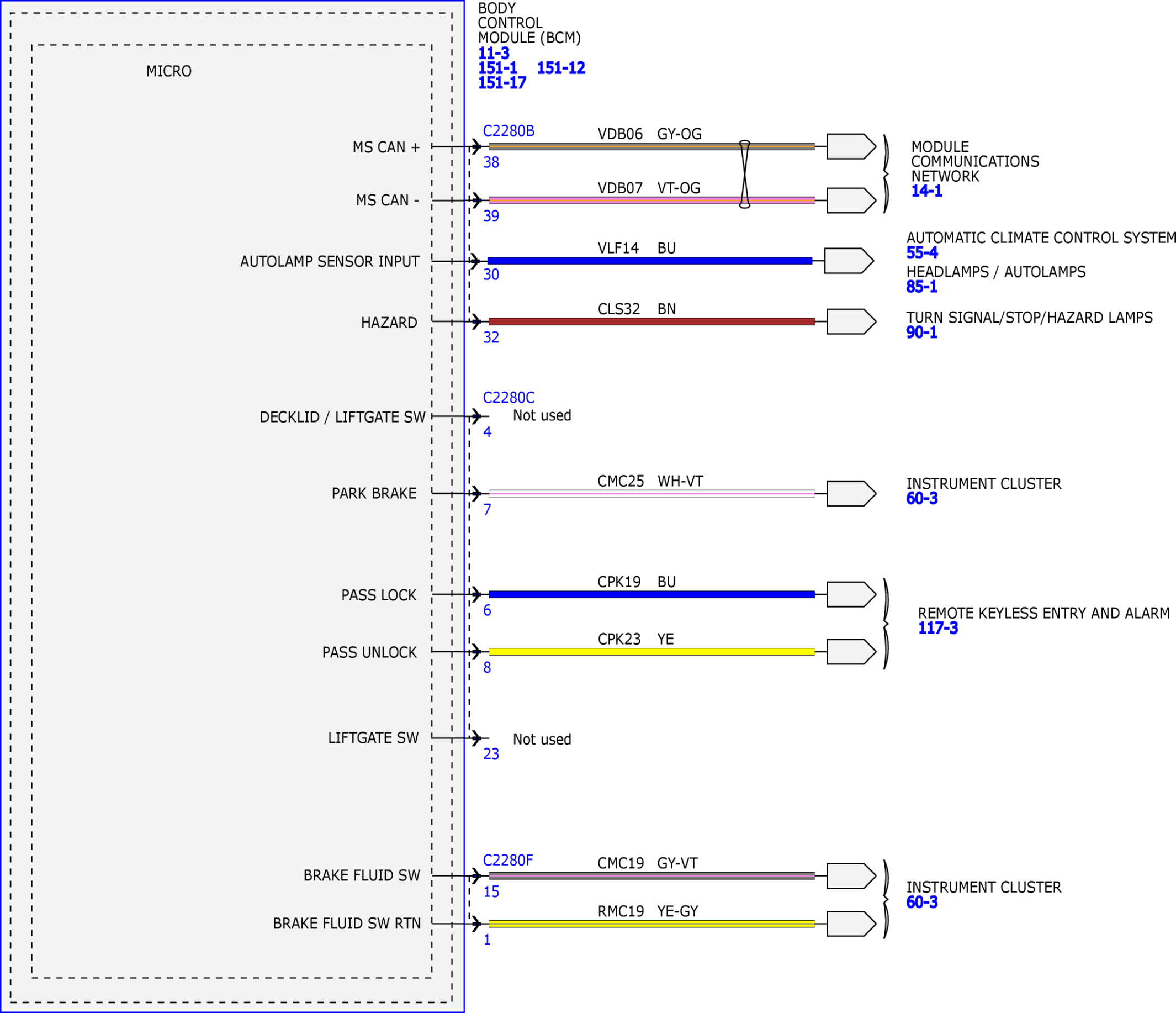

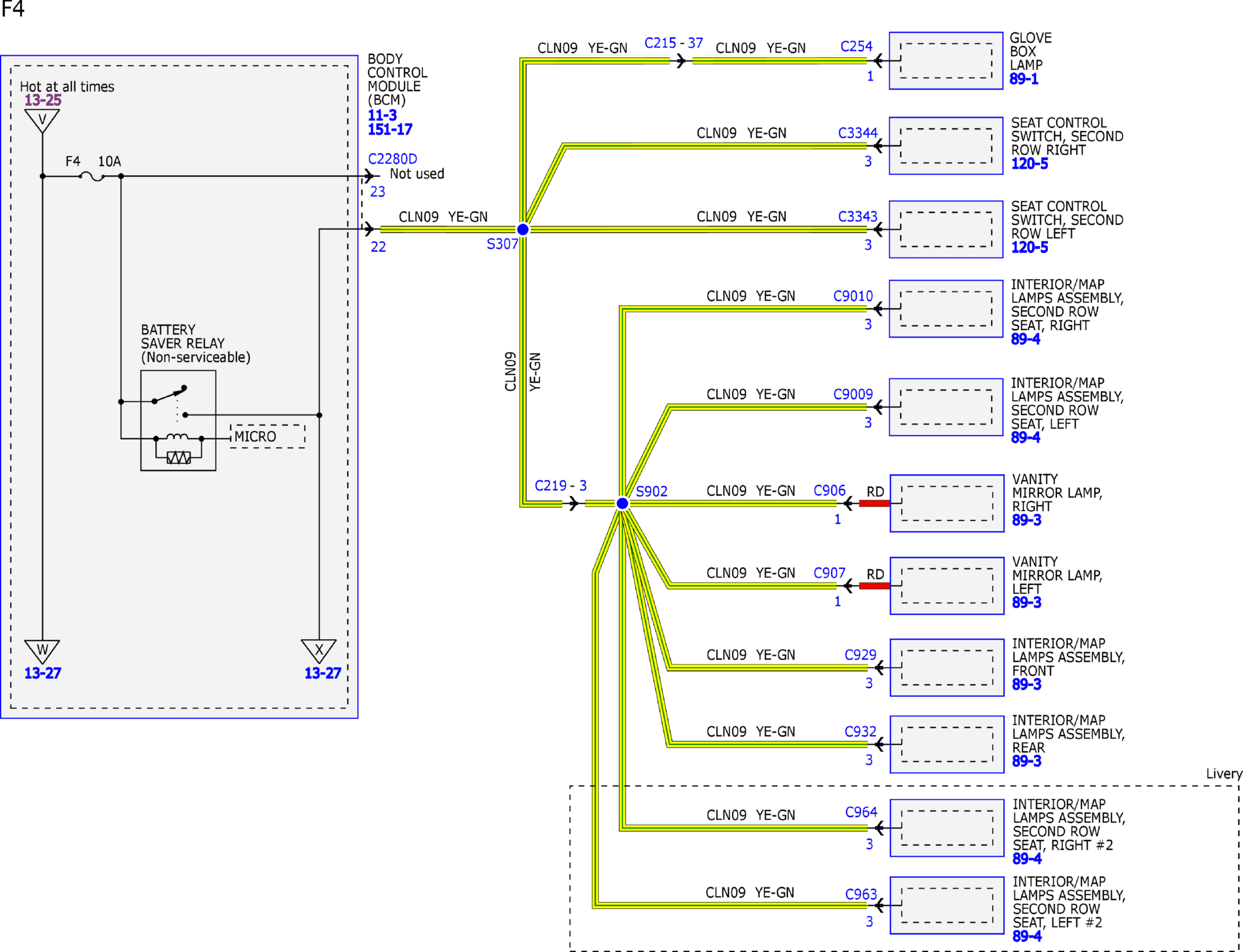

Fig 4: Power Distribution Wiring Diagram (4 of 42)
Courtesy of FORD MOTOR COMPANY

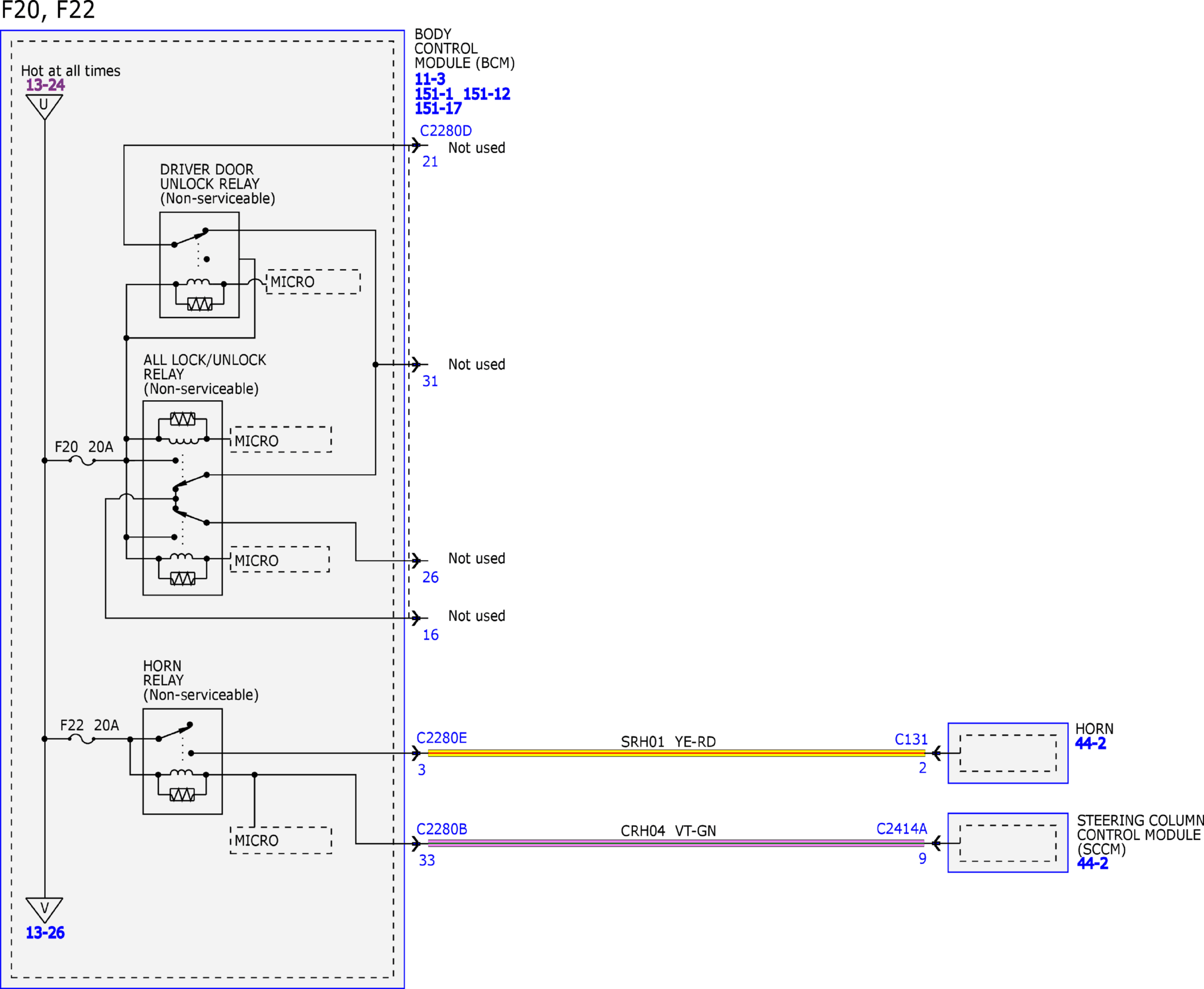

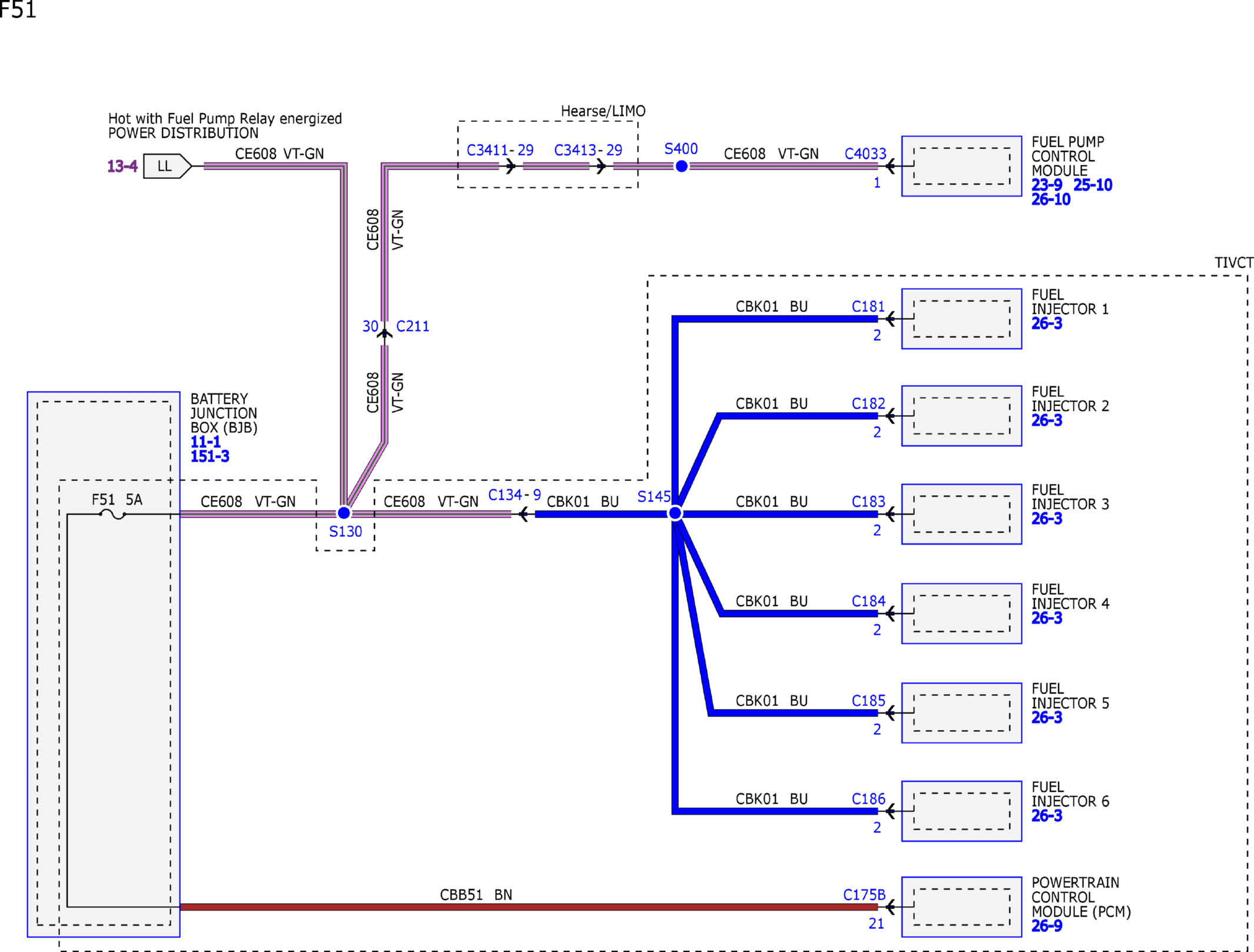

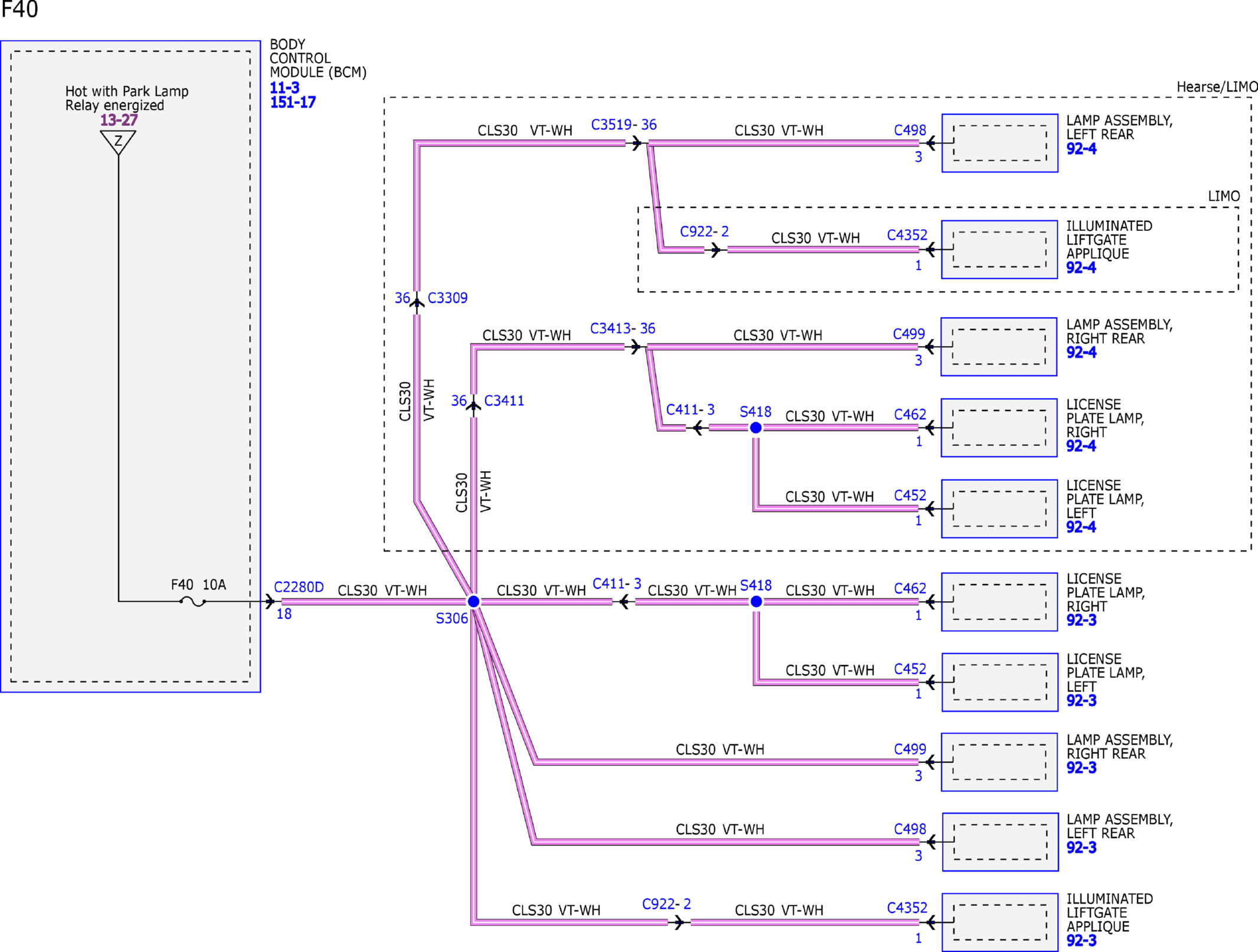

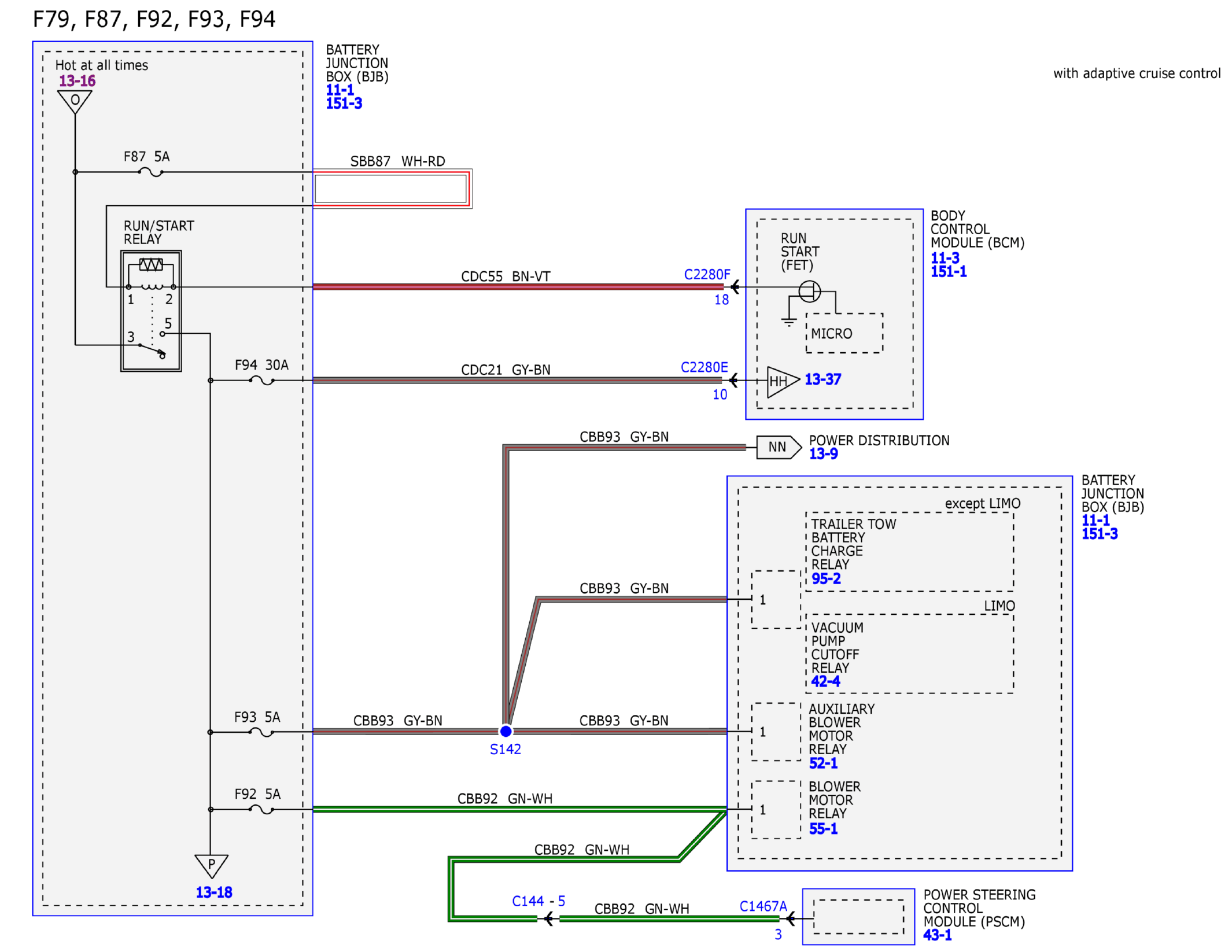

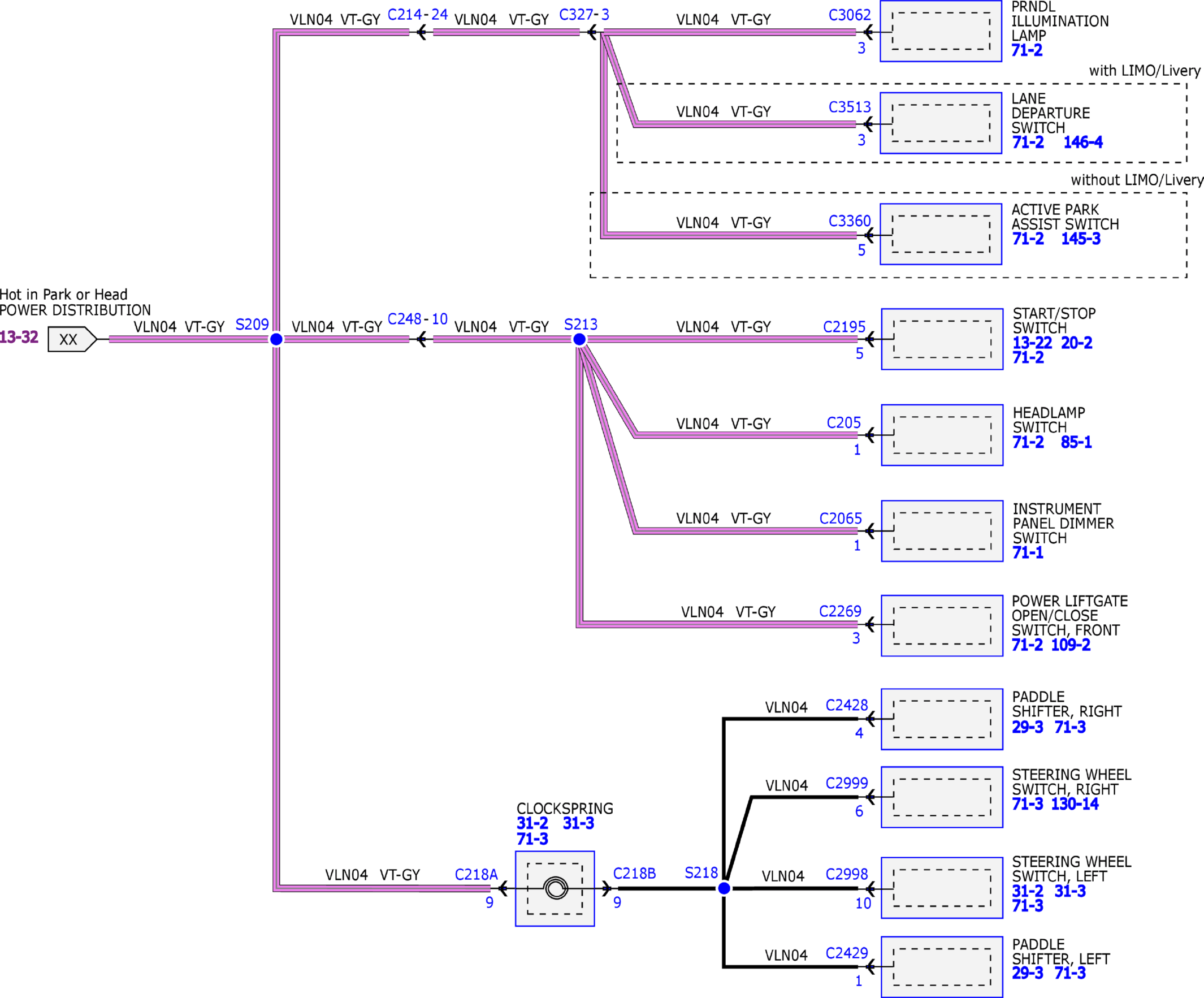

Fig 5: Power Distribution Wiring Diagram (5 of 42)
Courtesy of FORD MOTOR COMPANY

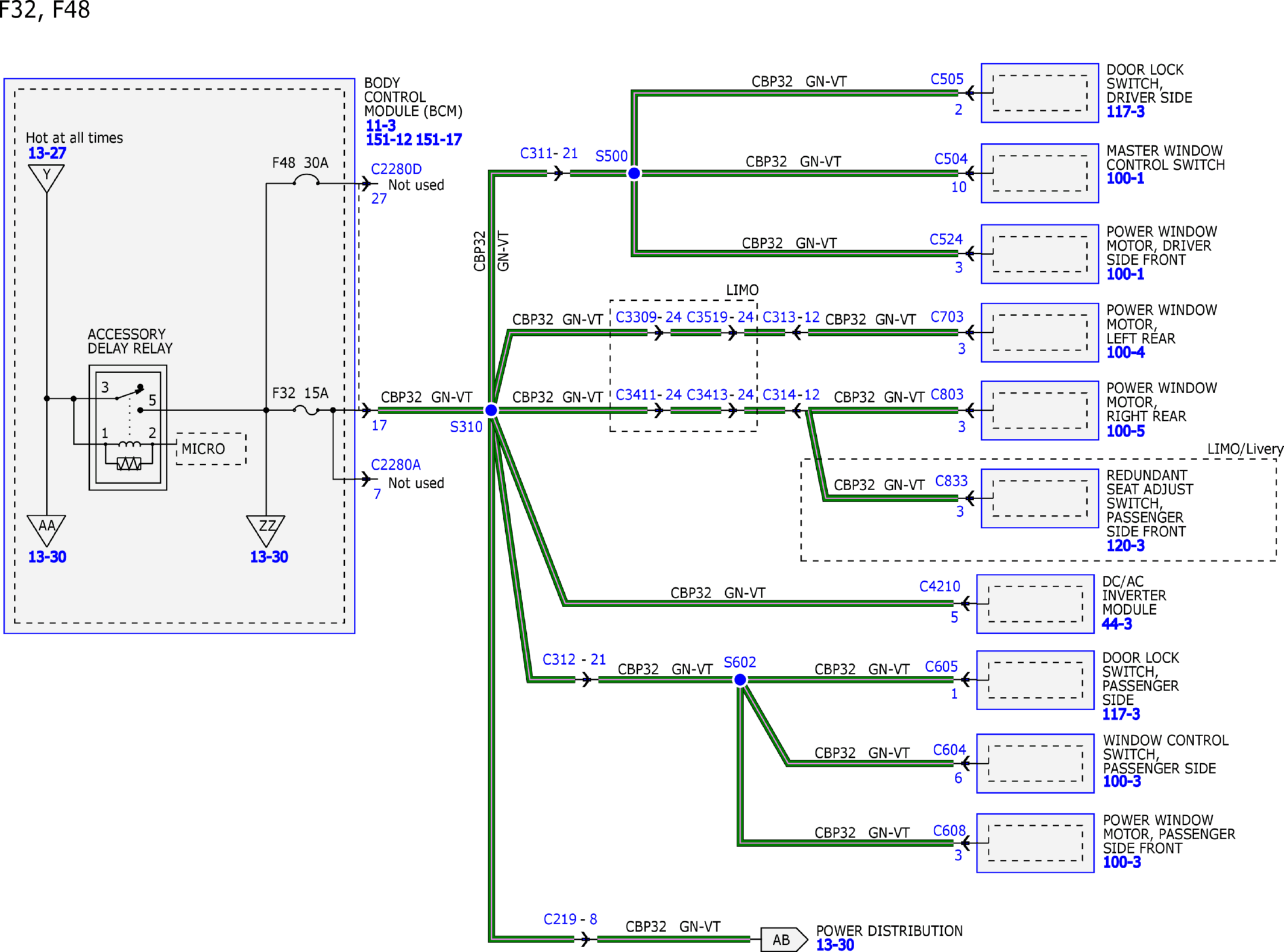

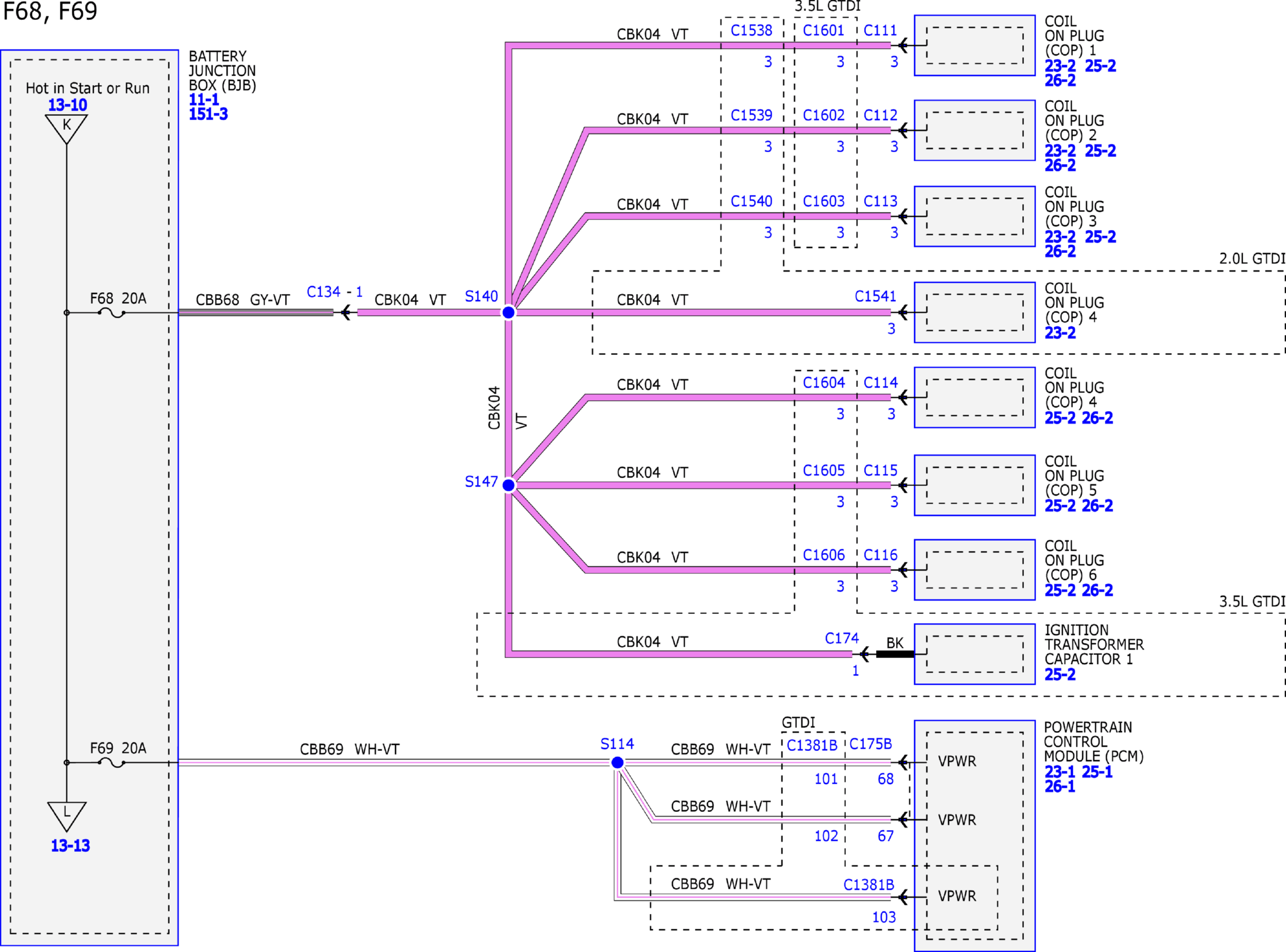

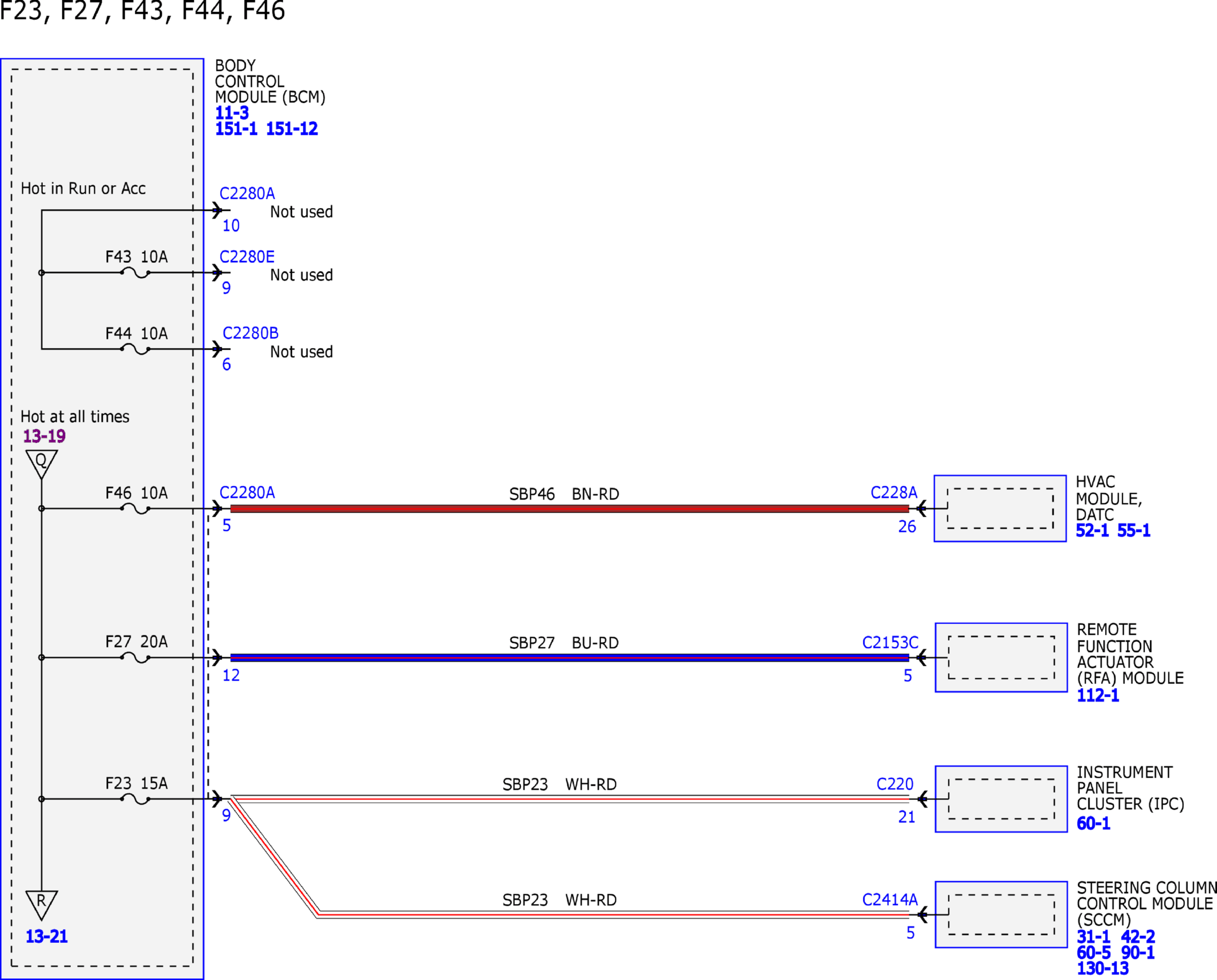

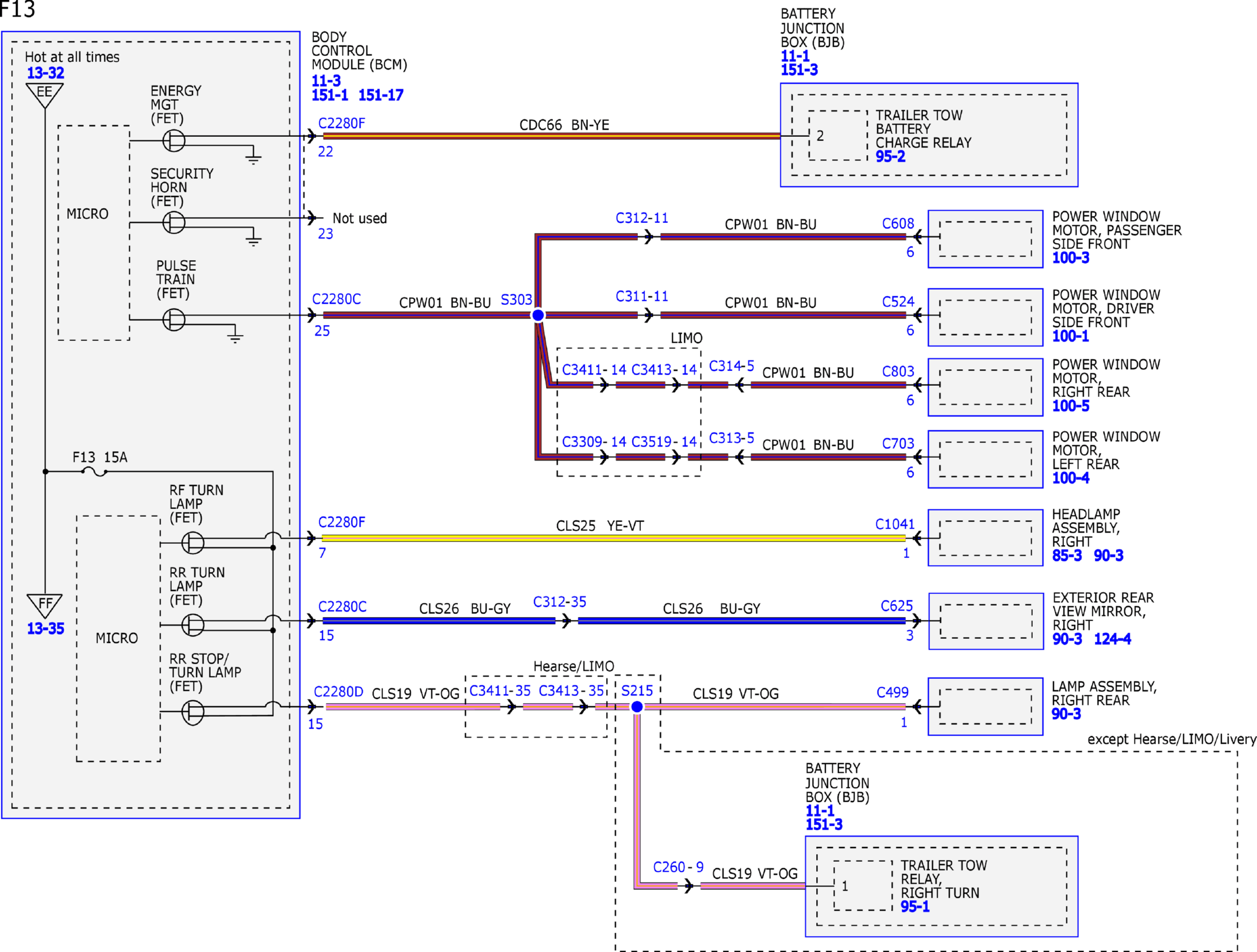

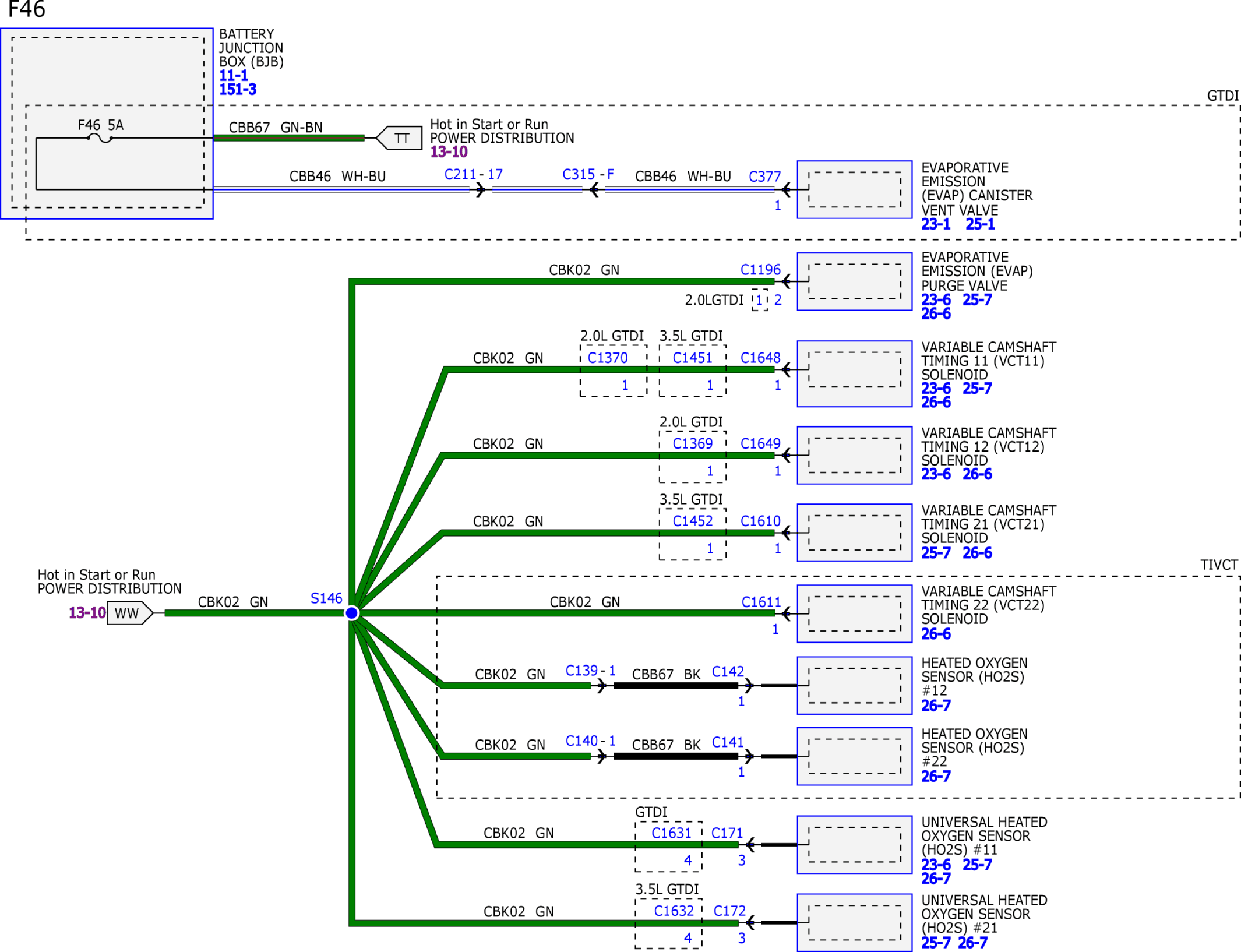

Fig 6: Power Distribution Wiring Diagram (6 of 42)
Courtesy of FORD MOTOR COMPANY

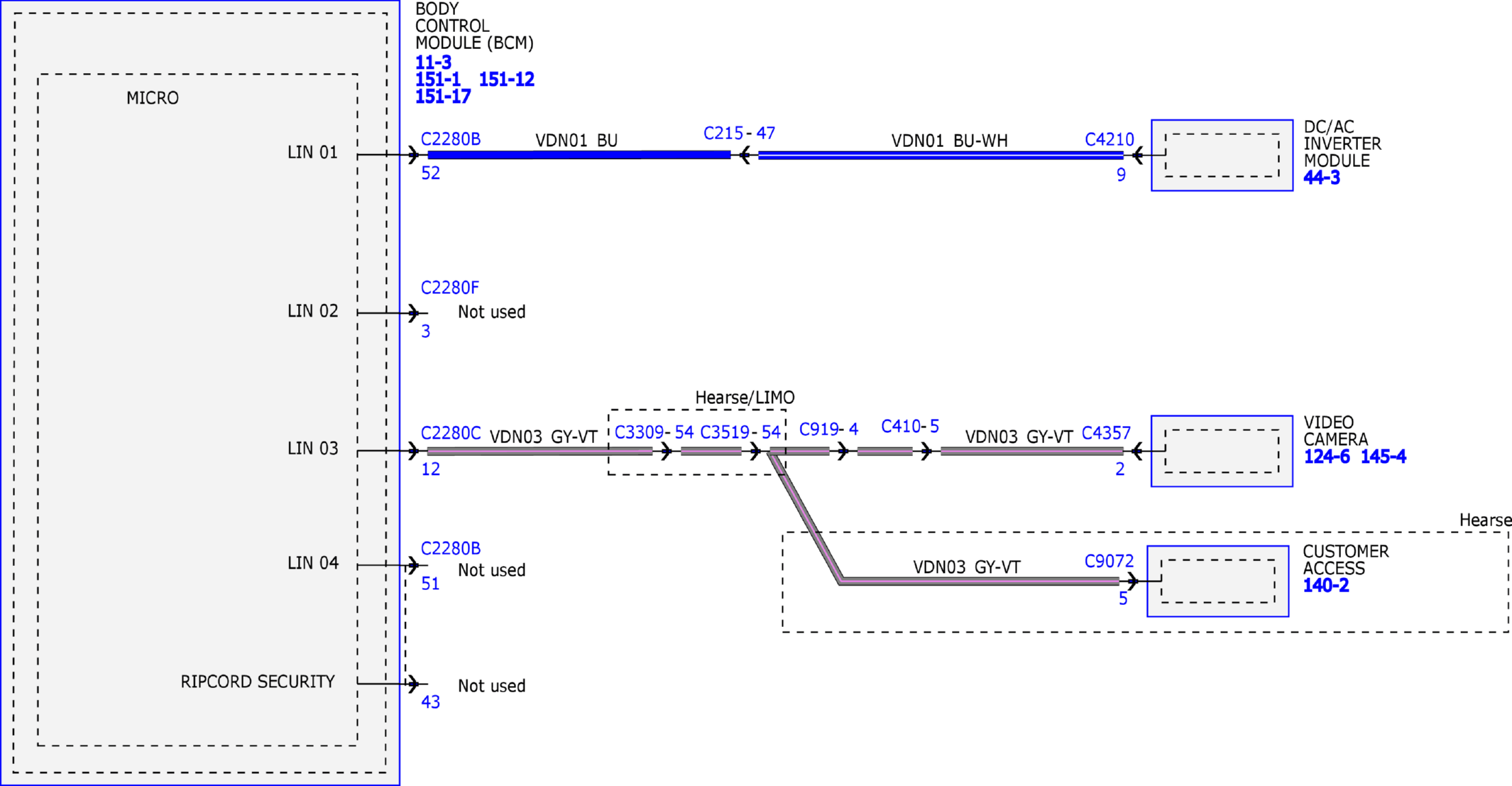

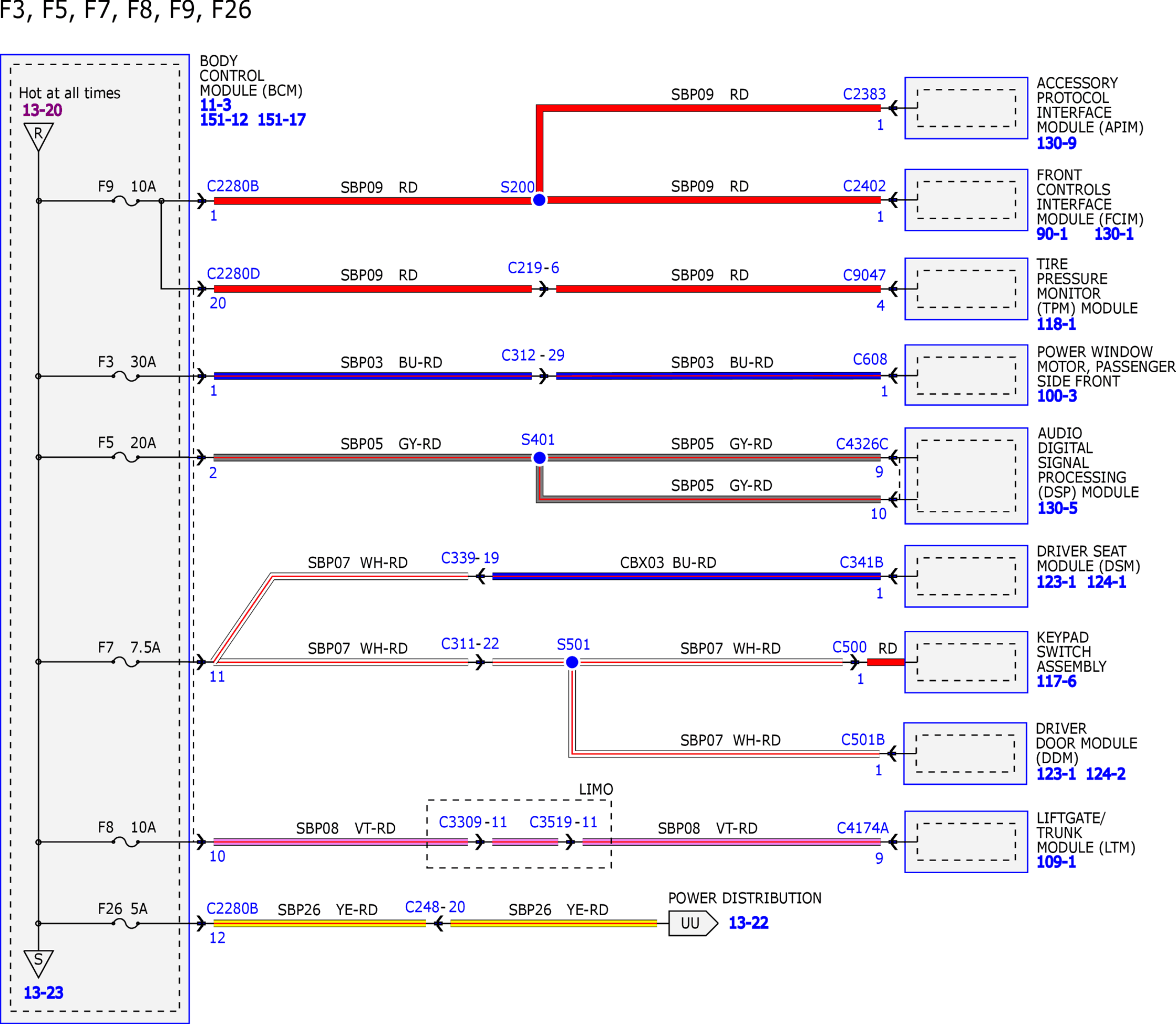

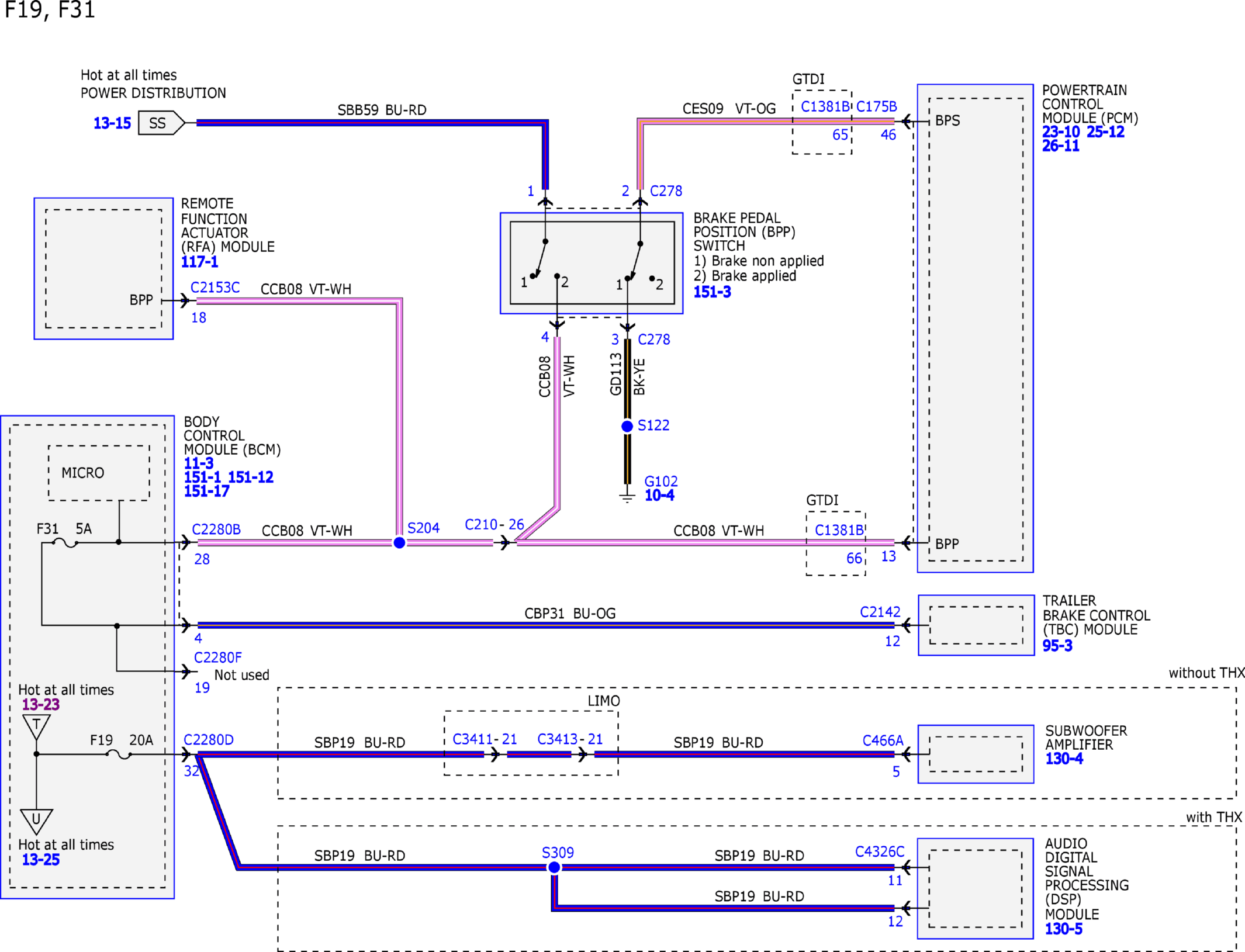

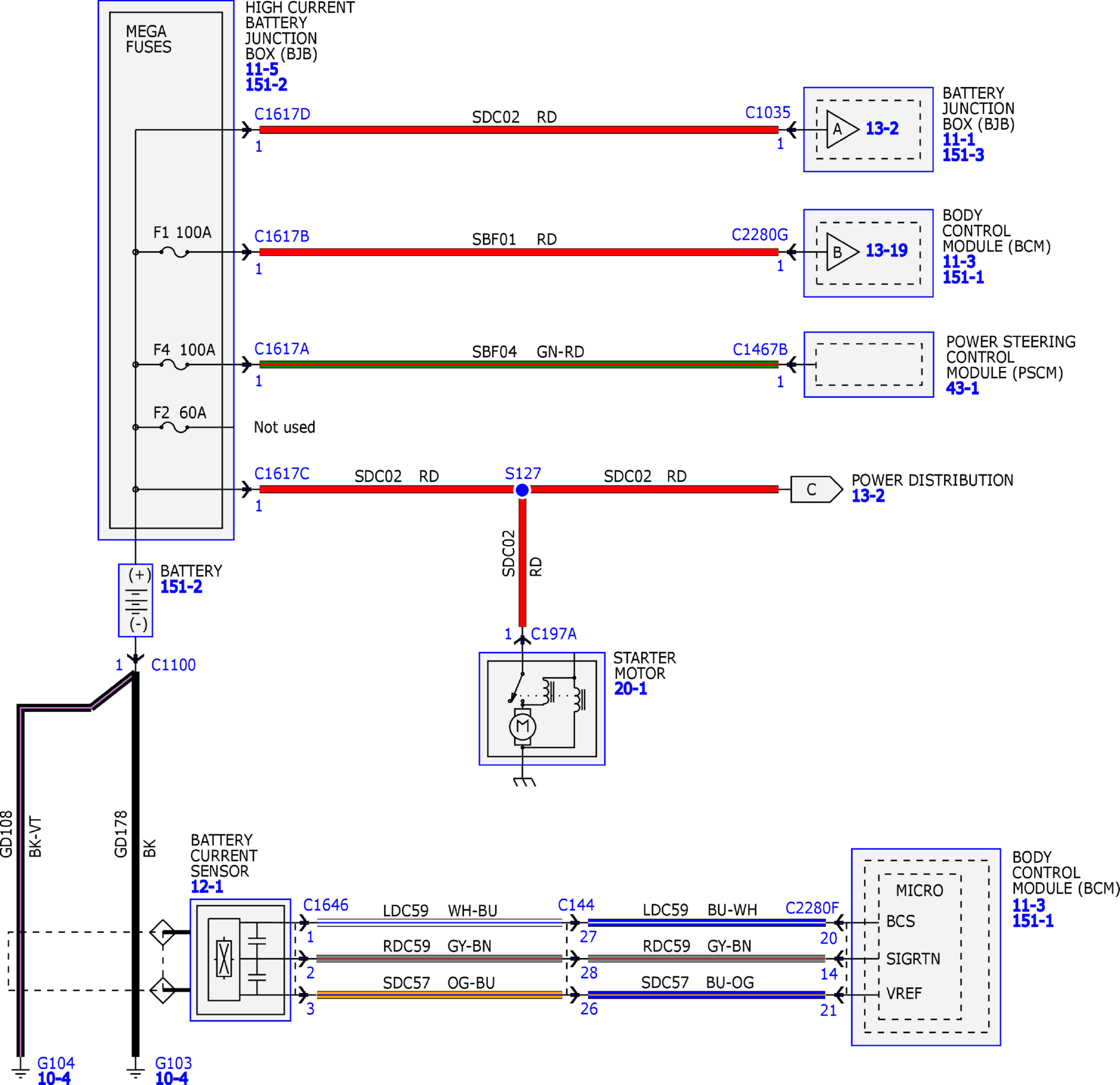

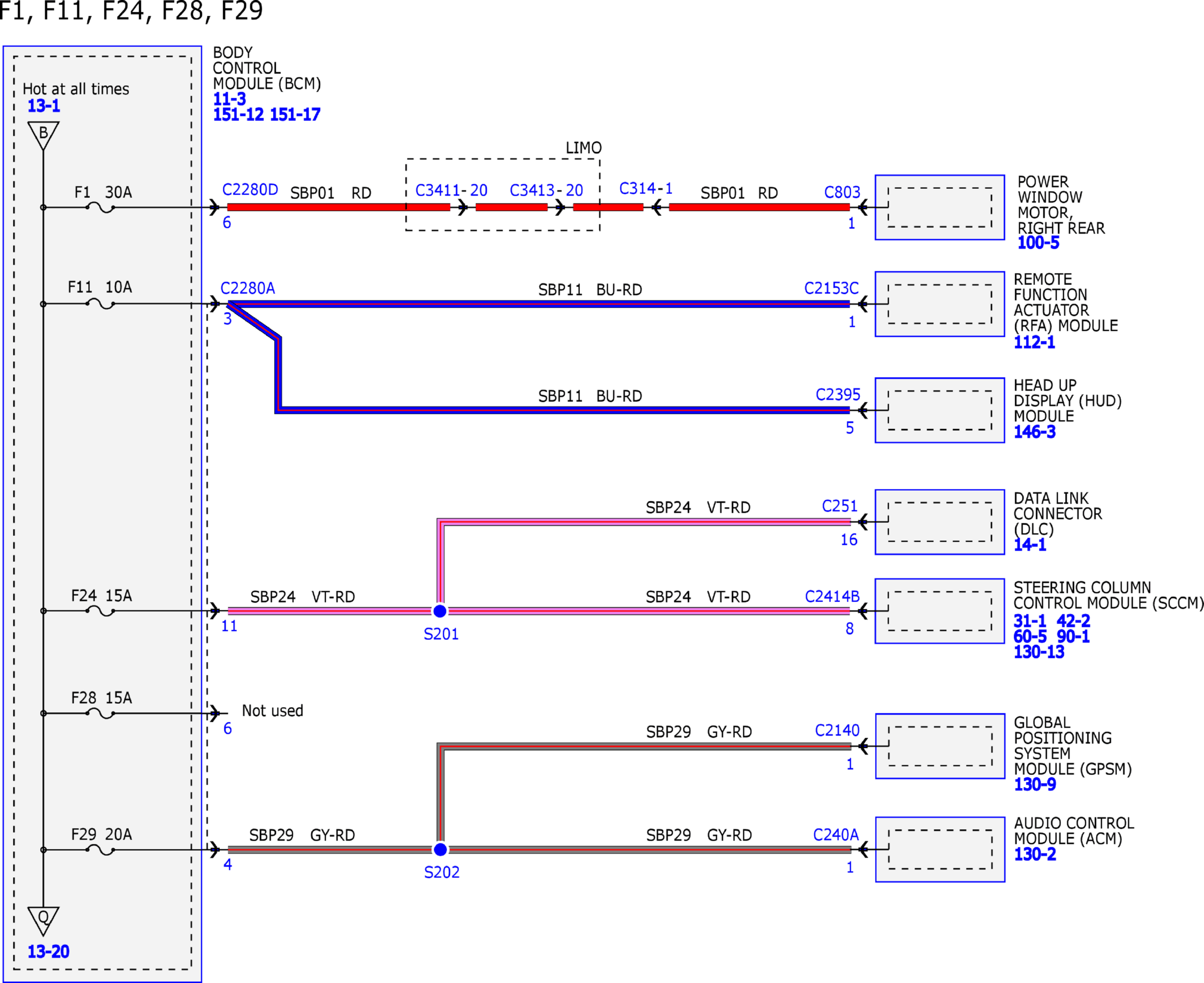

Fig 7: Power Distribution Wiring Diagram (7 of 42)
Courtesy of FORD MOTOR COMPANY

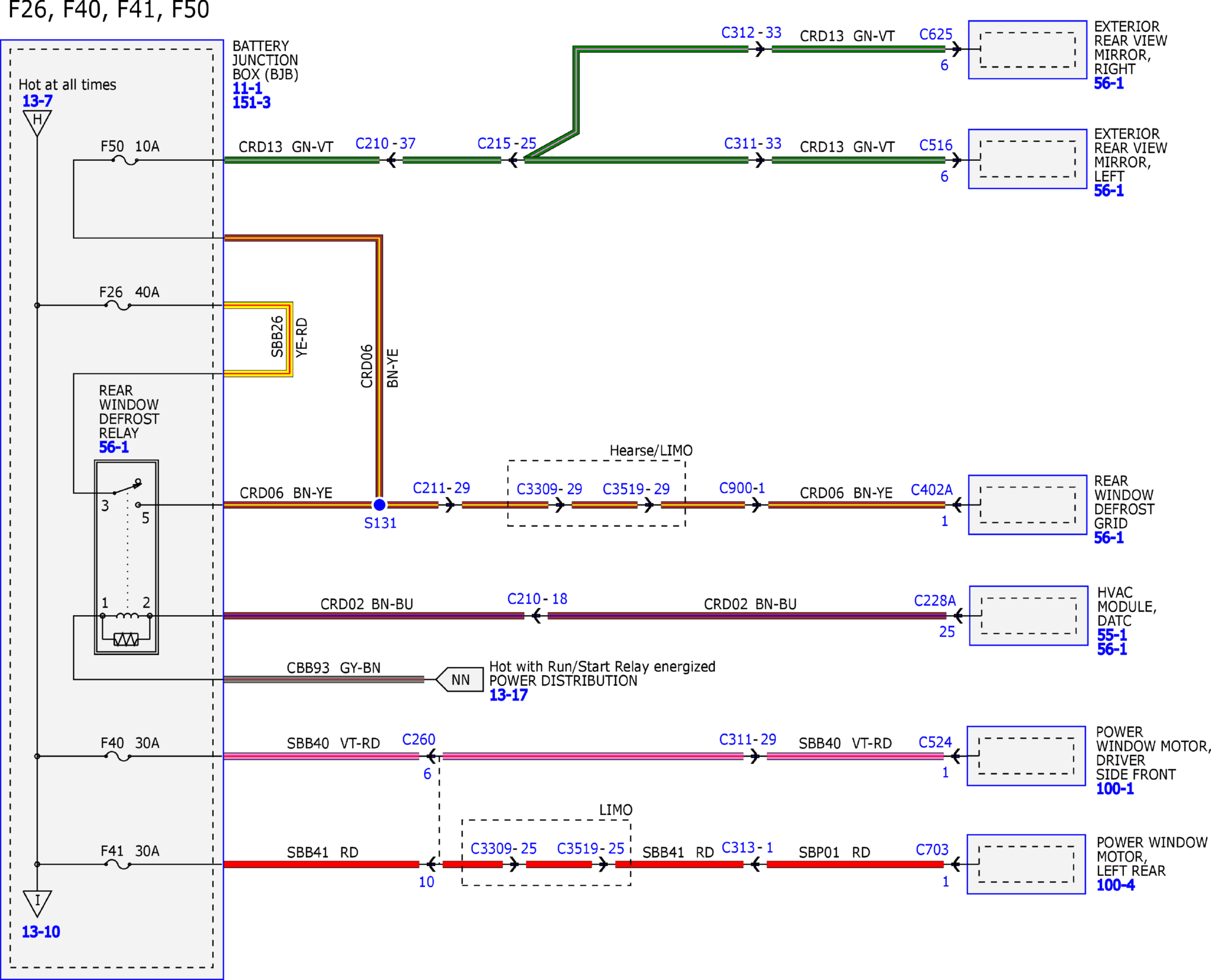

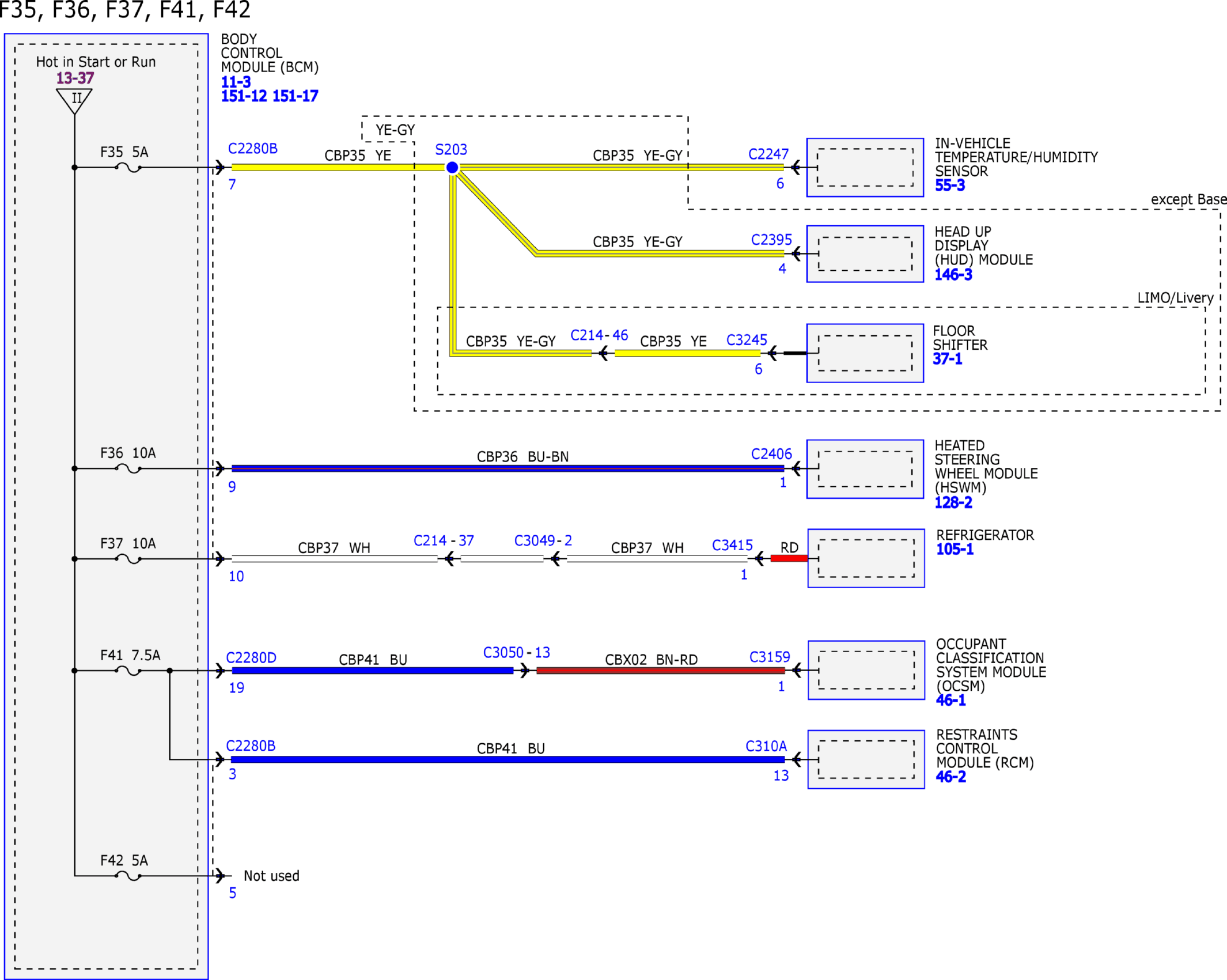

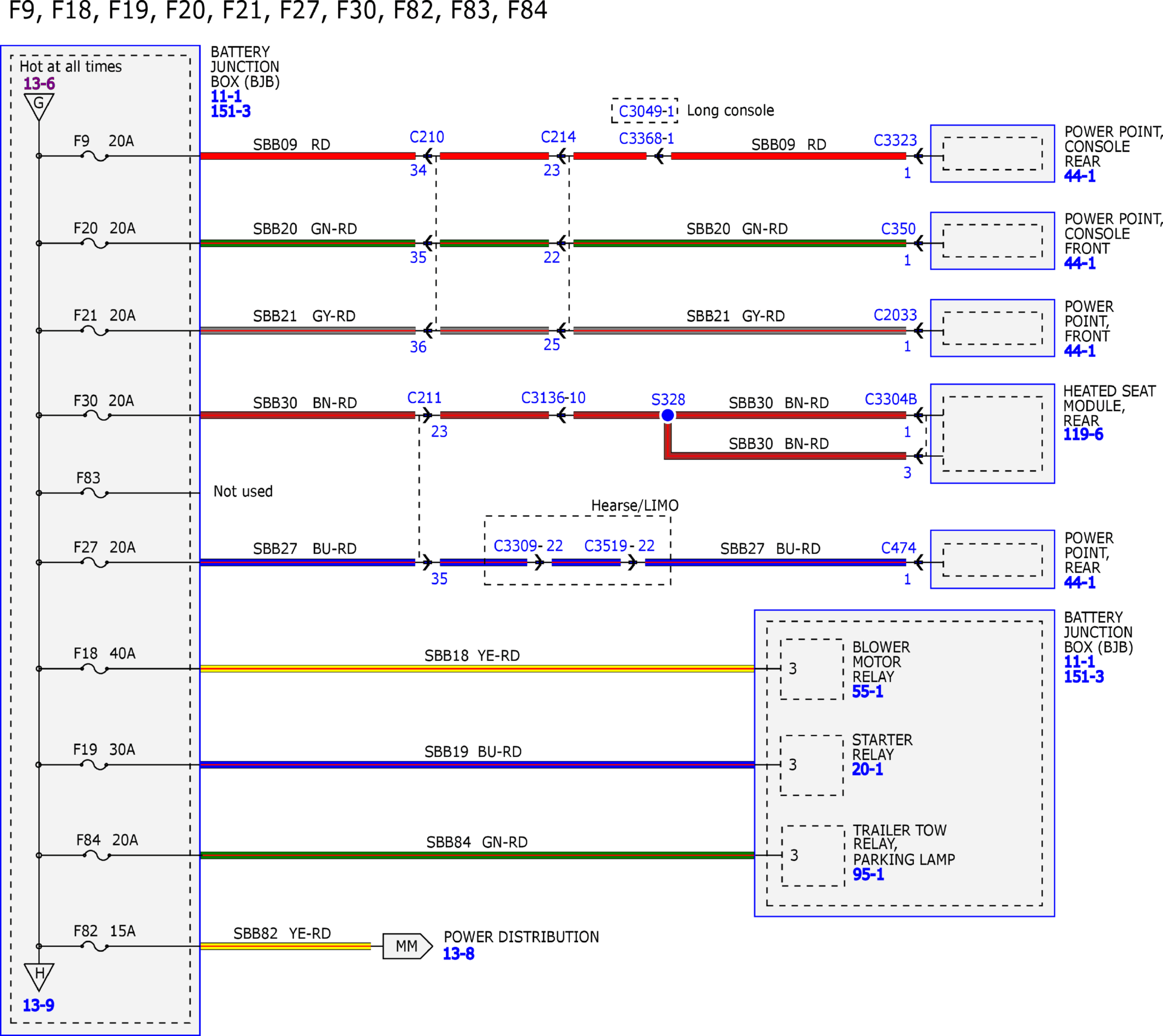

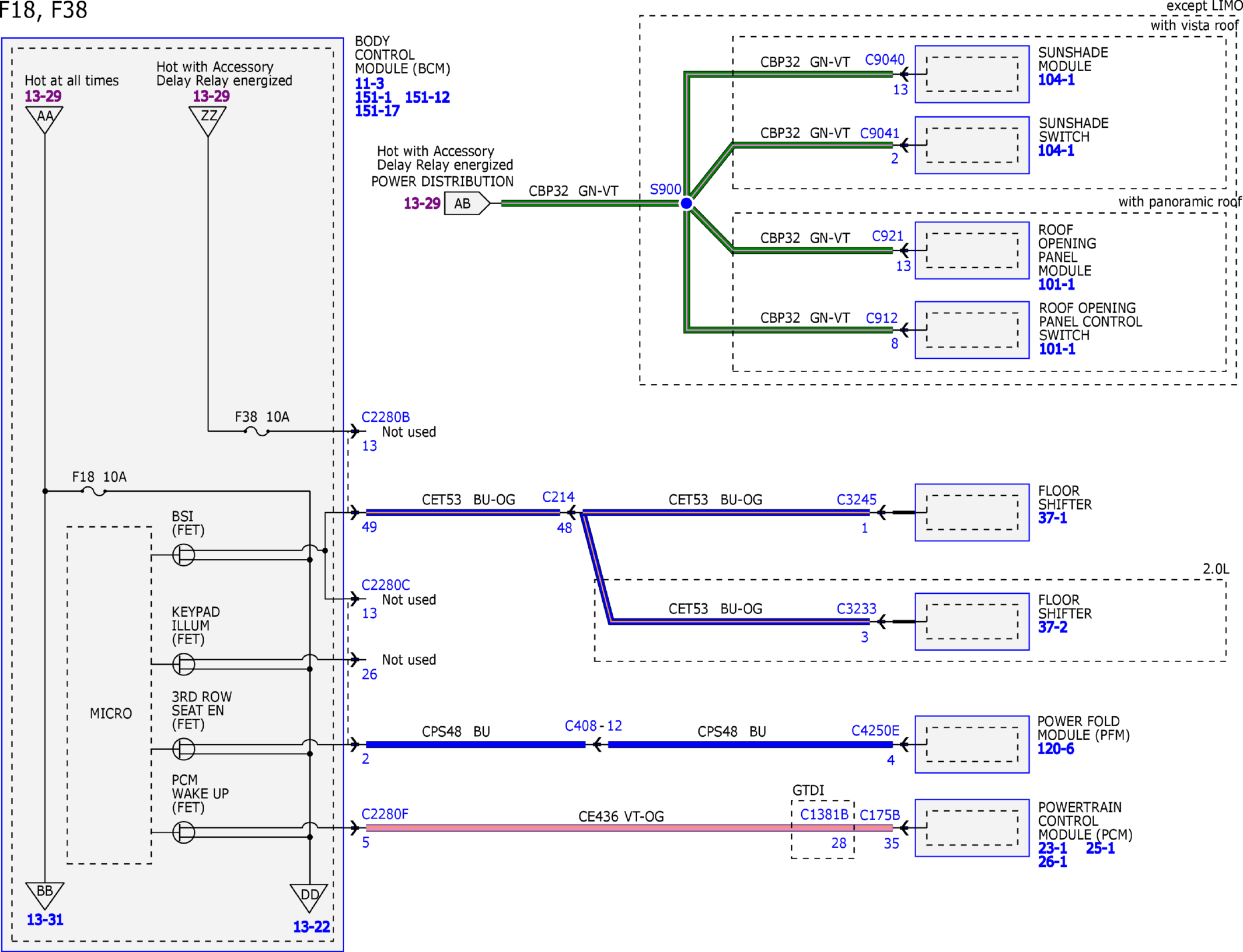

Fig 8: Power Distribution Wiring Diagram (8 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 9: Power Distribution Wiring Diagram (9 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 10: Power Distribution Wiring Diagram (10 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 11: Power Distribution Wiring Diagram (11 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 12: Power Distribution Wiring Diagram (12 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 13: Power Distribution Wiring Diagram (13 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 14: Power Distribution Wiring Diagram (14 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 15: Power Distribution Wiring Diagram (15 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 16: Power Distribution Wiring Diagram (16 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 17: Power Distribution Wiring Diagram (17 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 18: Power Distribution Wiring Diagram (18 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 19: Power Distribution Wiring Diagram (19 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 20: Power Distribution Wiring Diagram (20 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 21: Power Distribution Wiring Diagram (21 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 22: Power Distribution Wiring Diagram (22 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 23: Power Distribution Wiring Diagram (23 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 24: Power Distribution Wiring Diagram (24 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 25: Power Distribution Wiring Diagram (25 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 26: Power Distribution Wiring Diagram (26 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 27: Power Distribution Wiring Diagram (27 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 28: Power Distribution Wiring Diagram (28 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 29: Power Distribution Wiring Diagram (29 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 30: Power Distribution Wiring Diagram (30 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 31: Power Distribution Wiring Diagram (31 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 32: Power Distribution Wiring Diagram (32 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 33: Power Distribution Wiring Diagram (33 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 34: Power Distribution Wiring Diagram (34 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 35: Power Distribution Wiring Diagram (35 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 36: Power Distribution Wiring Diagram (36 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 37: Power Distribution Wiring Diagram (37 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 38: Power Distribution Wiring Diagram (38 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 39: Power Distribution Wiring Diagram (39 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 40: Power Distribution Wiring Diagram (40 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 41: Power Distribution Wiring Diagram (41 of 42)
Courtesy of FORD MOTOR COMPANY
Fig 42: Power Distribution Wiring Diagram (42 of 42)
