Seat Backrest Rear: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

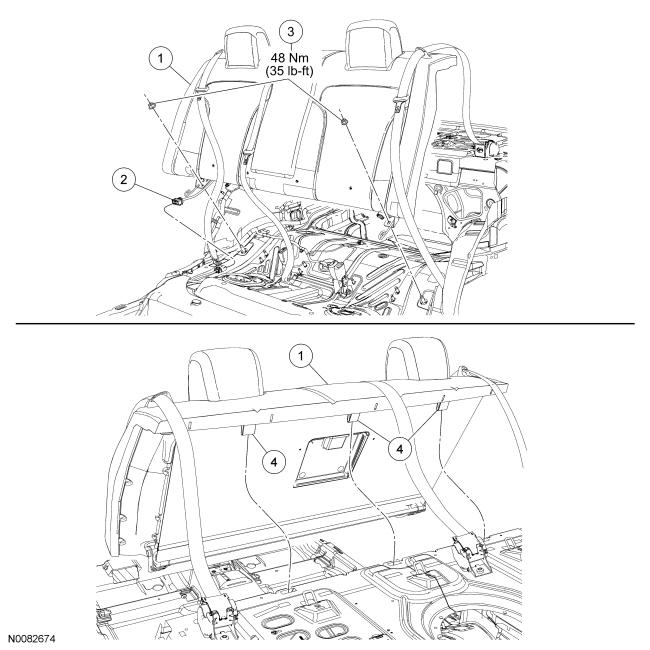

Seat Backrest - Rear
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Backrest assembly |
| 2 | - | Heated seat electrical connector (part of 19K315) |
| 3 | W505433 | Backrest mounting nuts |
| 4 | - | Backrest frame upper retainers (part of 613A38) |
