Heated Seat Switch Rear: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

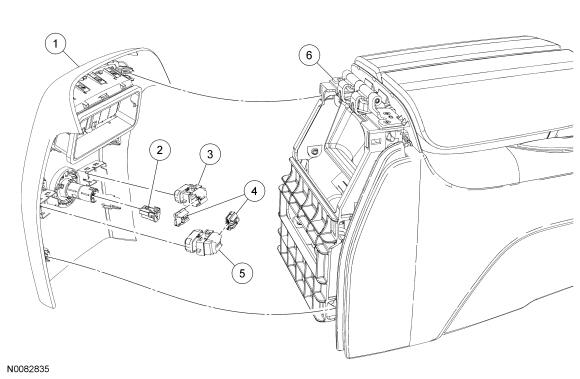

Heated Seat Switch - Rear
| Item | Part Number | Description |
|---|---|---|
| 1 | 045A36 | Front floor console rear panel |
| 2 | - | Power point electrical connector (part of 14B079) |
| 3 | 14D695 | LH rear heated seat switch |
| 4 | - | LH and RH rear heated seat switch electrical connectors (part of 14B079) |
| 5 | 14D694 | RH rear heated seat switch |
| 6 | - | Front floor console assembly |
