Transfer Case Fluid Level Check

Materials

Check

• 1.

  Follow the health and safety precautions. Refer to: Health and Safety Precautions .

• 2.

  With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

• 3.

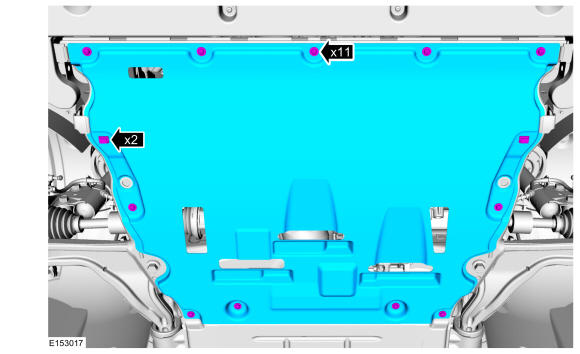

  If equipped. Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

• 4.

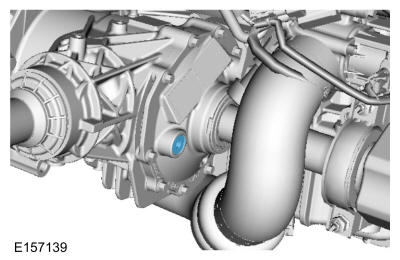

  Remove the PTU (Power Transfer Unit) fill plug.

Courtesy of FORD MOTOR COMPANY

• 5.

  Fill the PTU with clean fluid, level with the fill plug opening.

  Material: Motorcraft ® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)

Courtesy of FORD MOTOR COMPANY

• 6.

  Install the PTU fill plug.

  Torque: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY

• 7.

  If equipped. Install the underbody shield.

Courtesy of FORD MOTOR COMPANY
