Removal And Installation: Clockspring: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

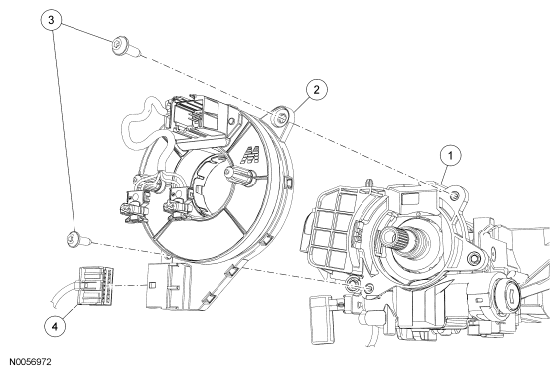

Fig 1: Identifying Clockspring Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3F888	Multifunction switch carrier
2	14A664	Clockspring
3	W506943	Clockspring screws
4	-	Clockspring electrical connector (part of 14401)
