Seat Control Switch, 10-way - Left: Schematic

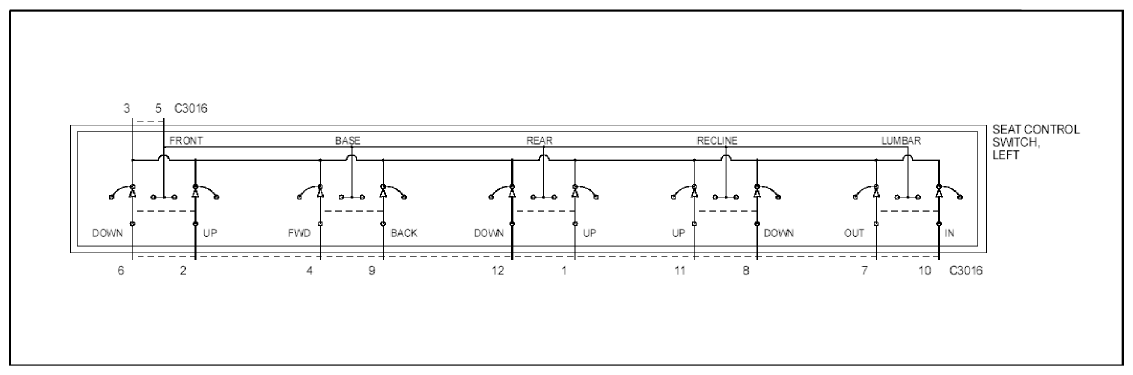

Fig 1: Seat Control Switch, 10-Way - Left Schematic

G09224503

Courtesy of FORD MOTOR CO.
