Master Window Adjust Switch - Expedition: Schematic

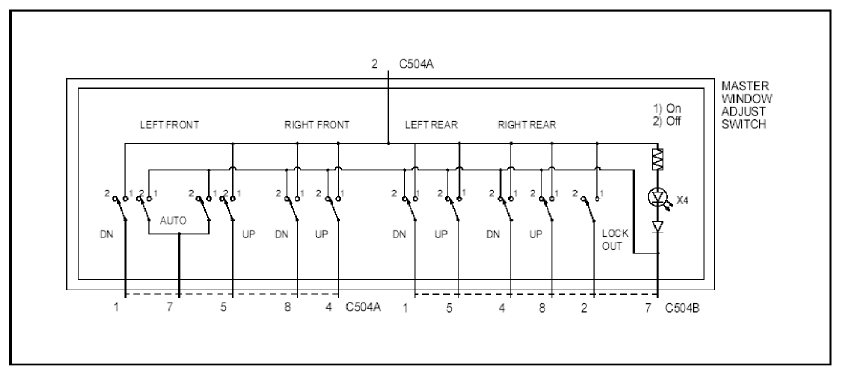

Fig 1: Master Window Adjust Switch - Expedition Schematic

G09224511

Courtesy of FORD MOTOR CO.
