OEM Ground Distribution: Grounds: G400

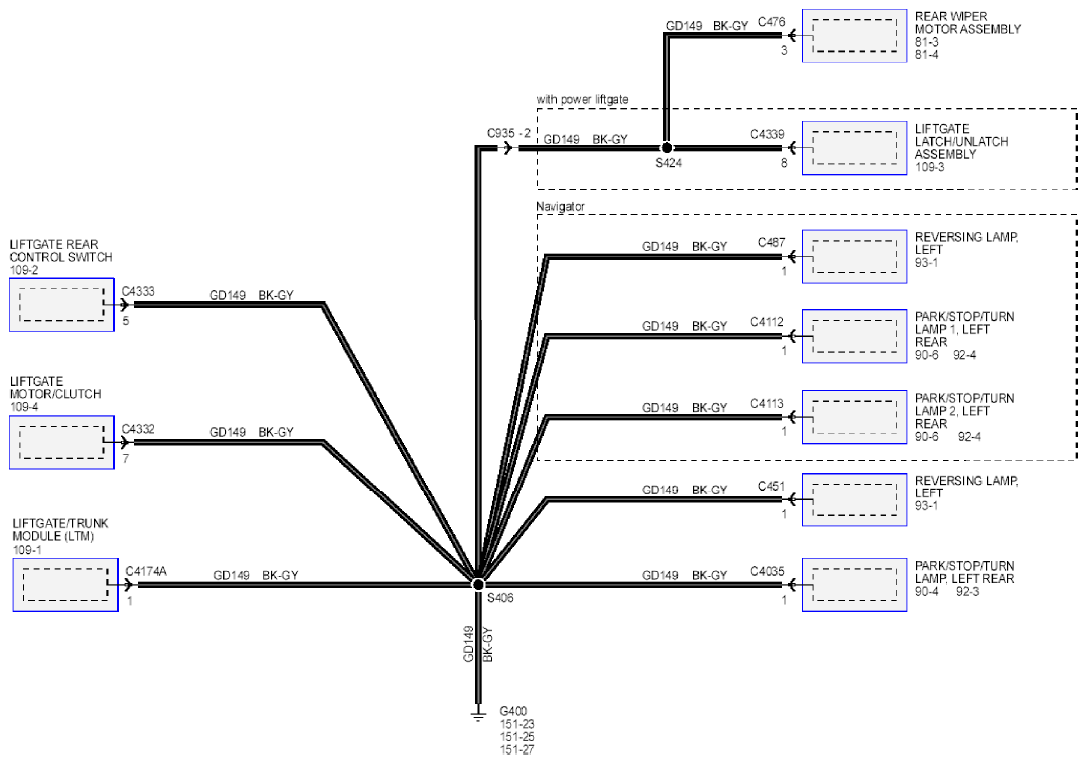

Fig 1: Grounds System - Wiring Diagram - G400

G09220358

Courtesy of FORD MOTOR CO.
