OEM Ground Distribution: Grounds: G302

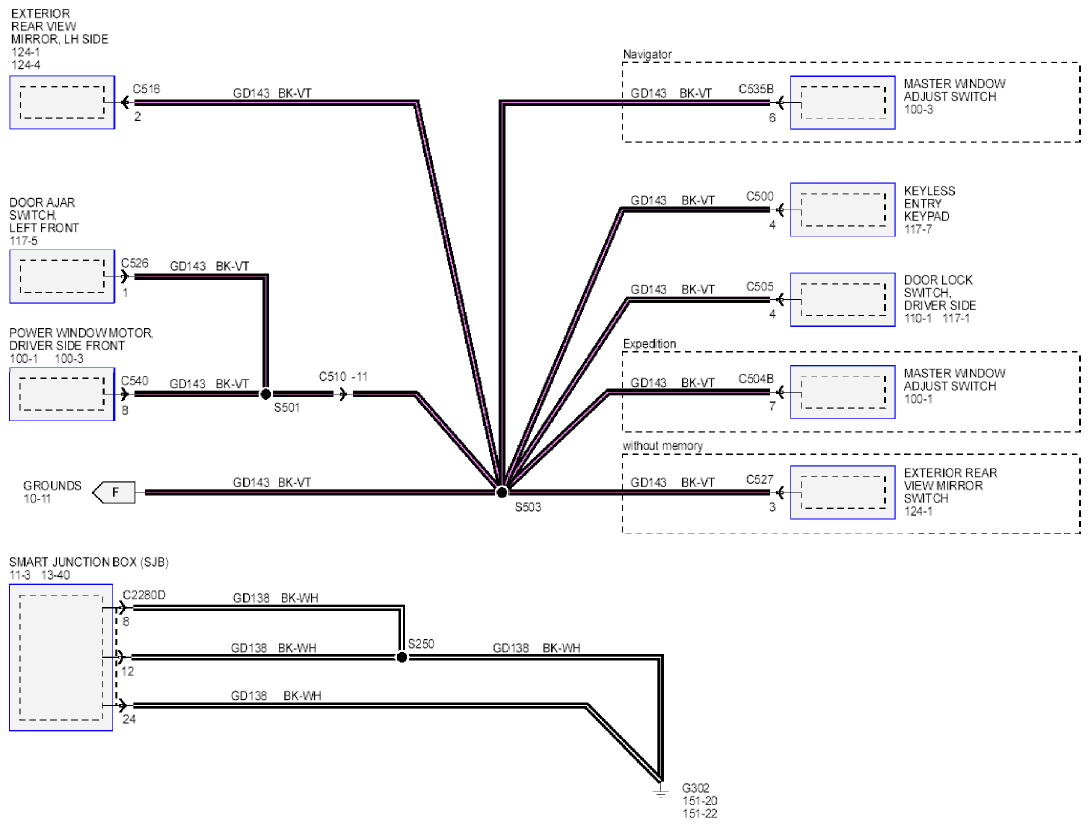

Fig 1: Grounds System - Wiring Diagram - G302

G09220357

Courtesy of FORD MOTOR CO.
