Component Location Views

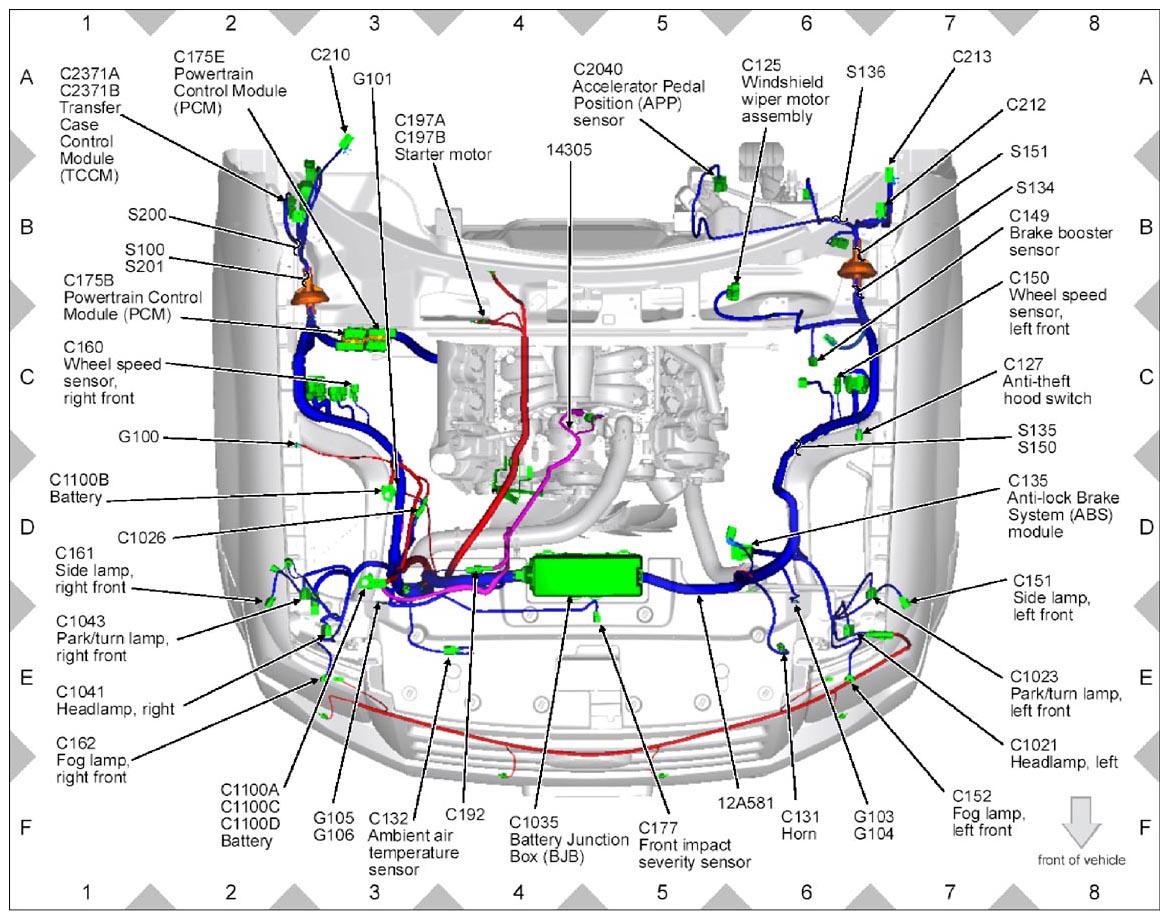

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 4)

G09225039

Courtesy of FORD MOTOR CO.

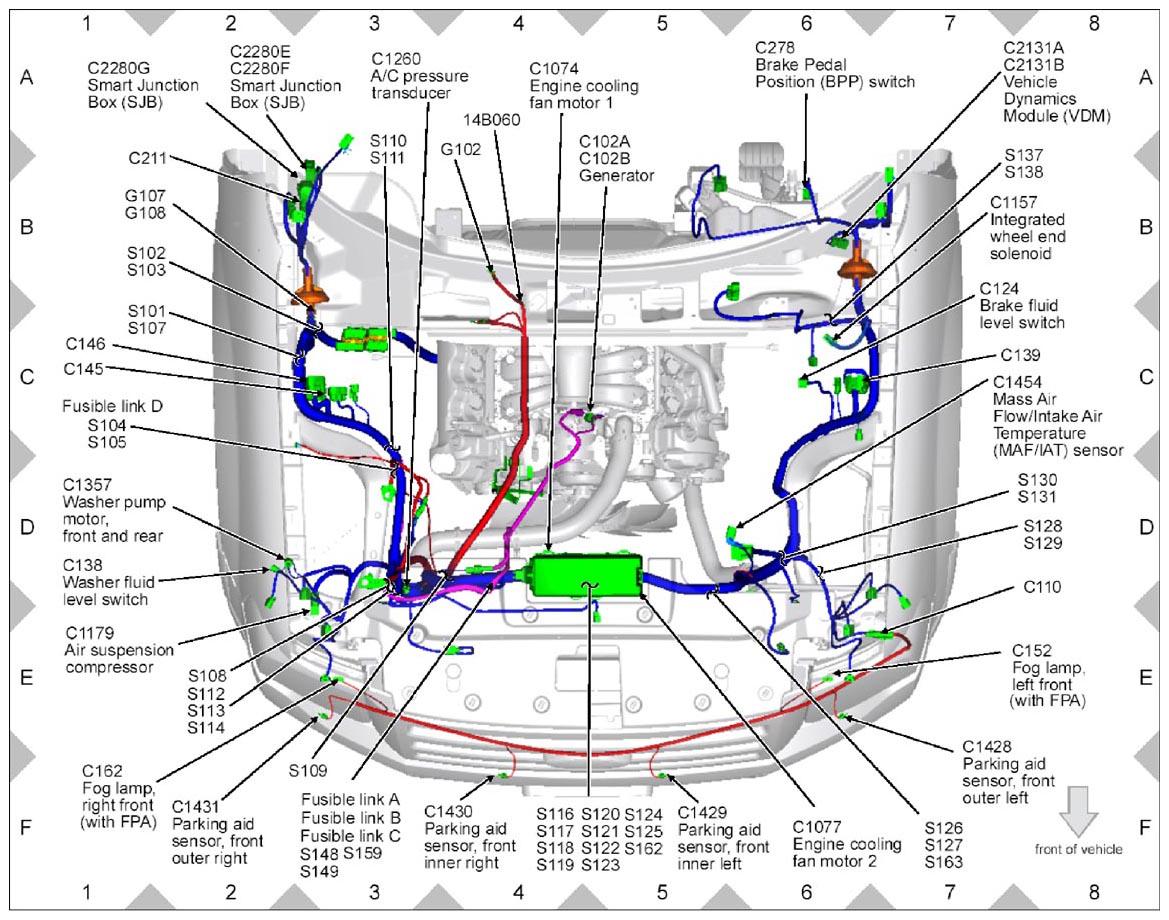

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 4)

G09225040

Courtesy of FORD MOTOR CO.

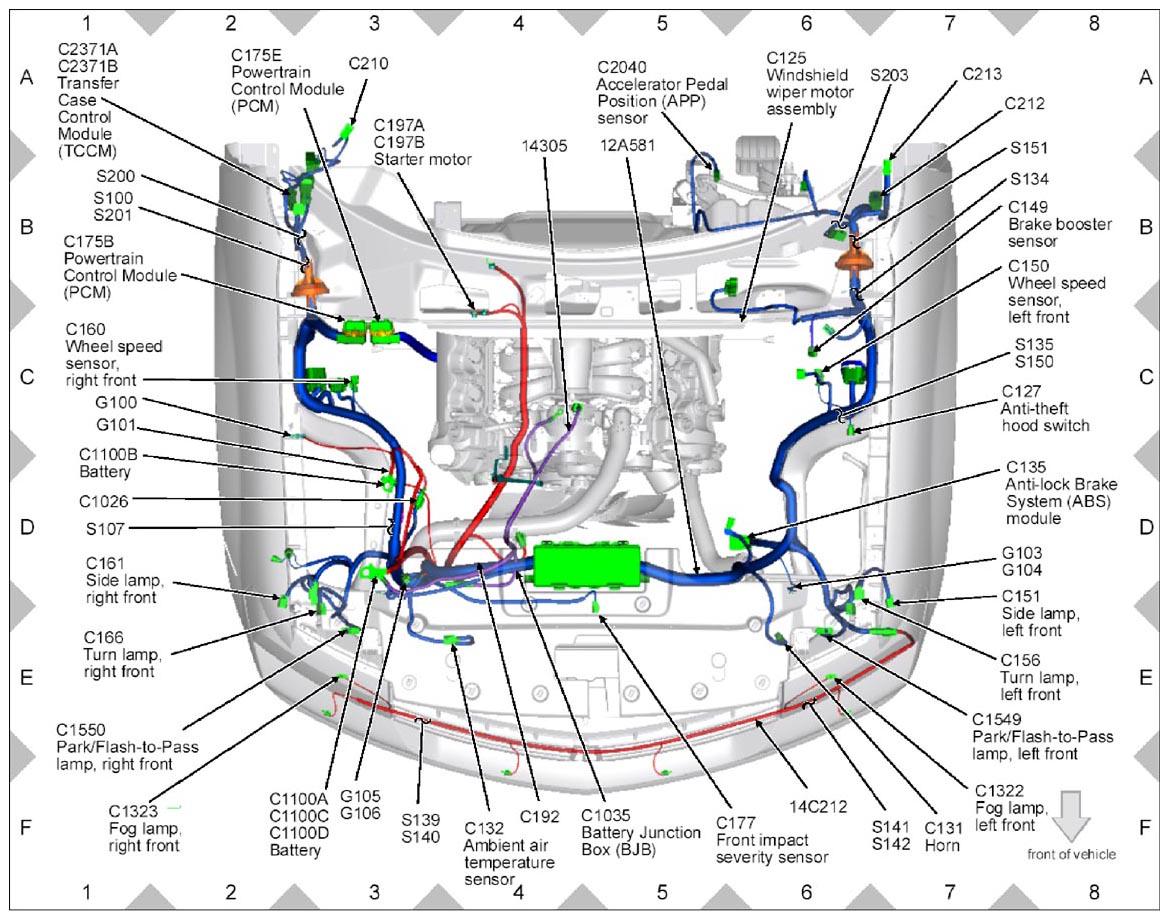

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 4)

G09225041

Courtesy of FORD MOTOR CO.

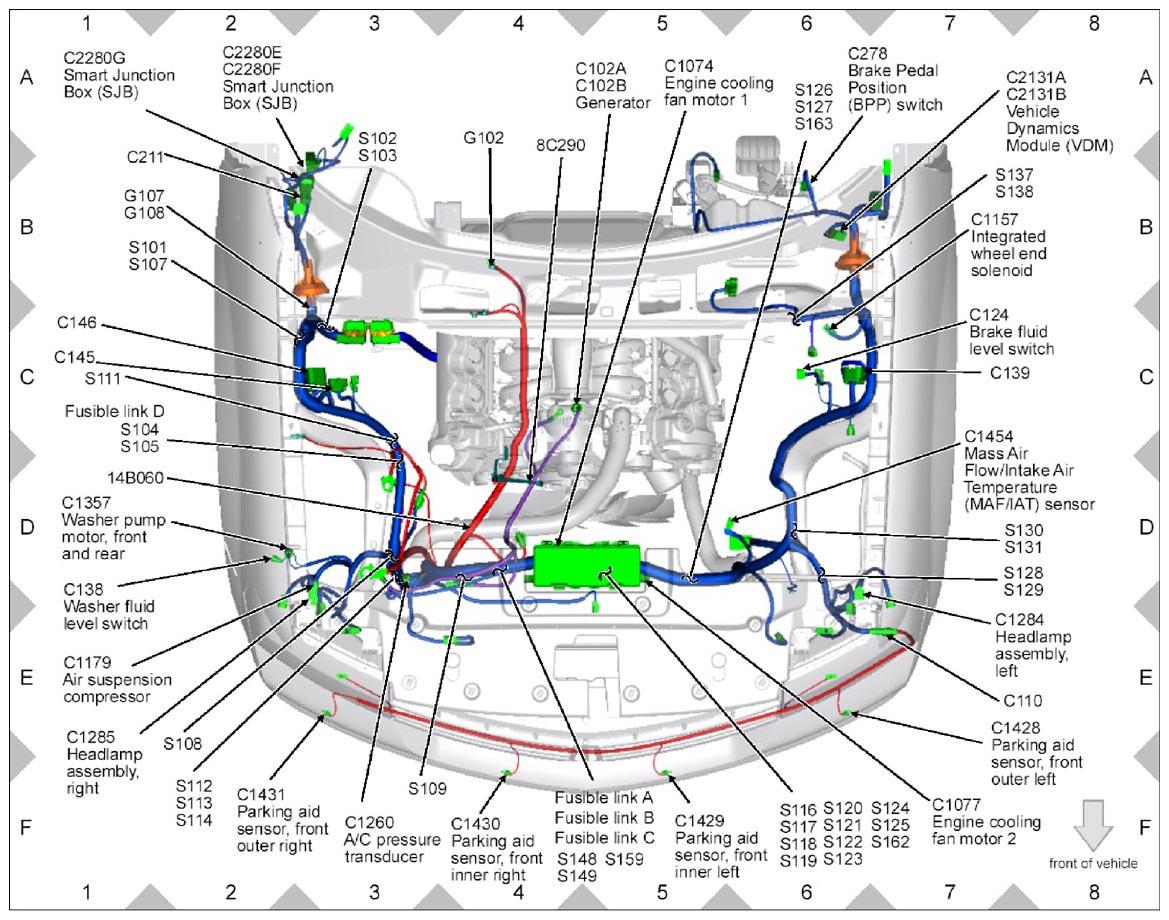

Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 4)

G09225042

Courtesy of FORD MOTOR CO.

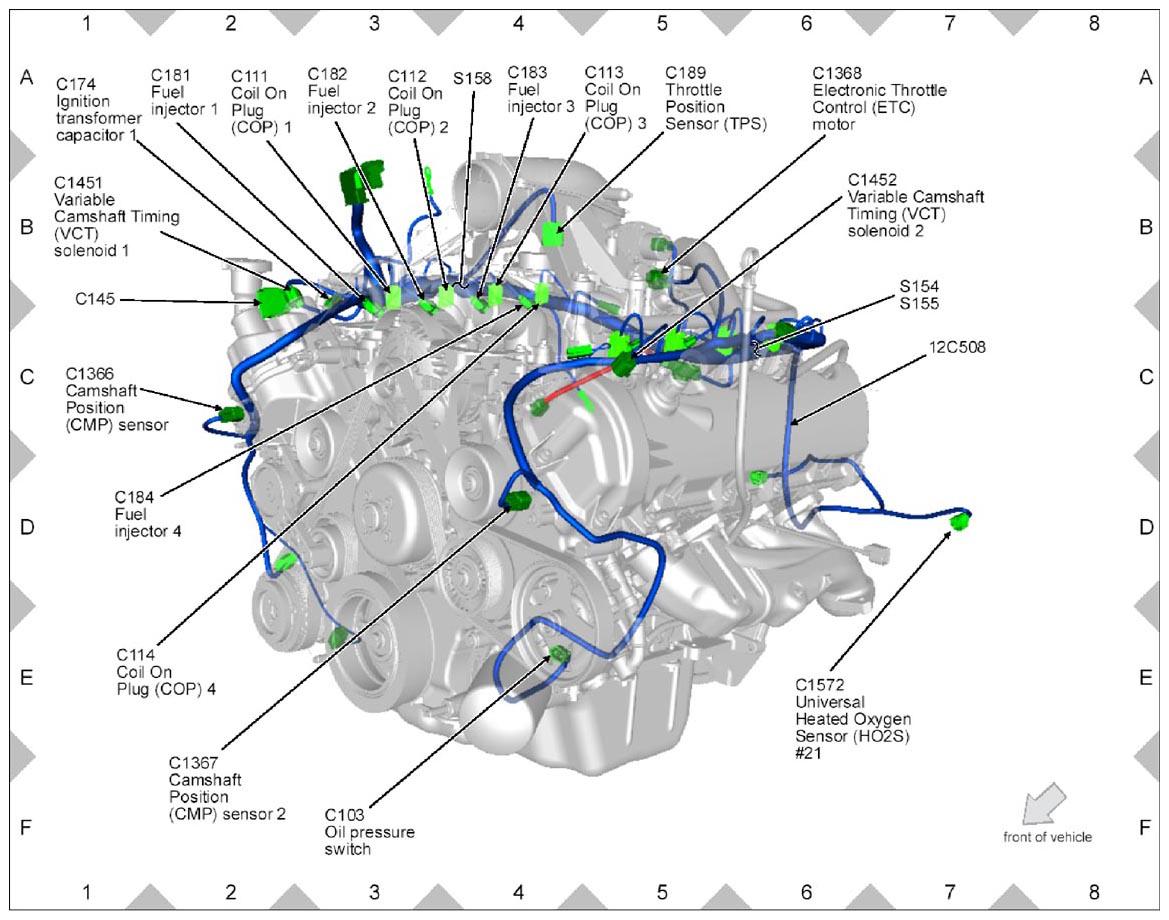

Fig 5: Engine Wiring Harness Connectors Location (1 Of 2)

G09225043

Courtesy of FORD MOTOR CO.

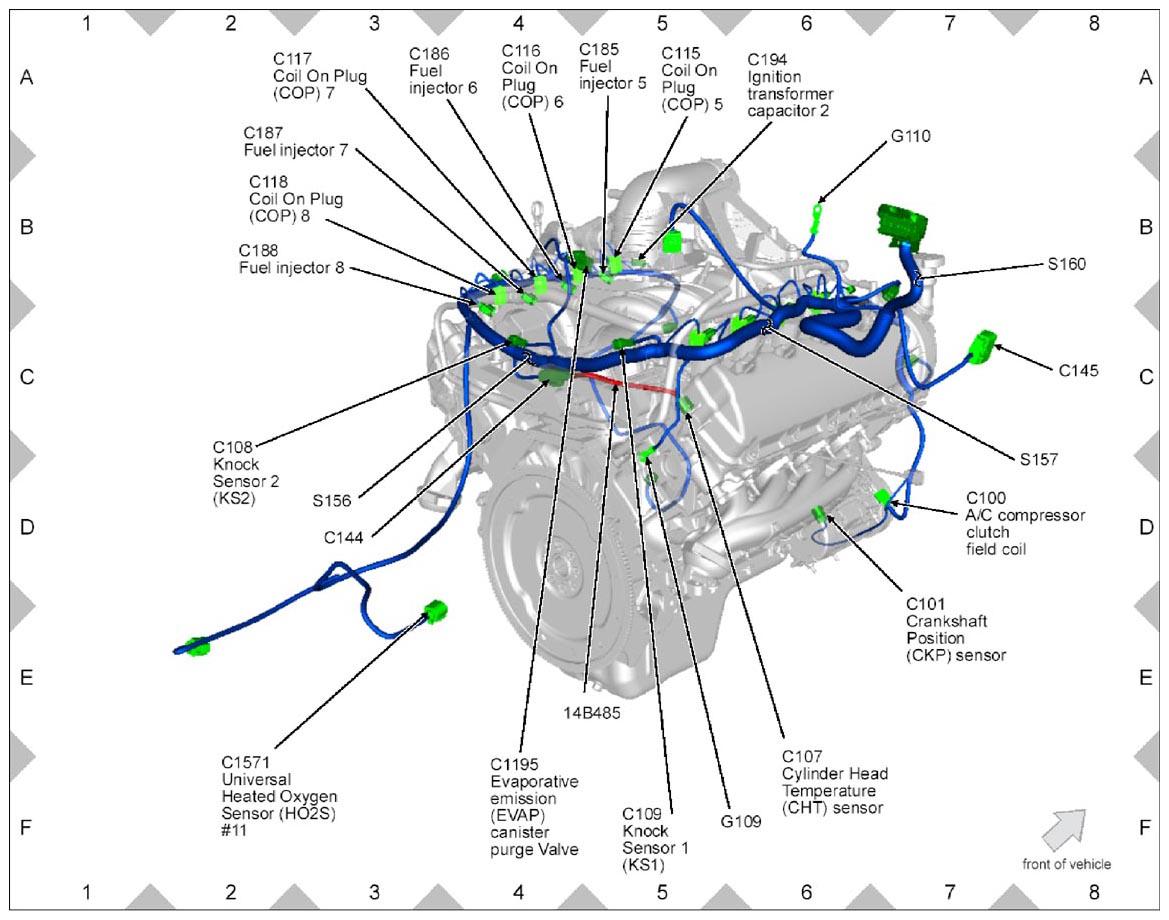

Fig 6: Engine Wiring Harness Connectors Location (2 Of 2)

G09225044

Courtesy of FORD MOTOR CO.

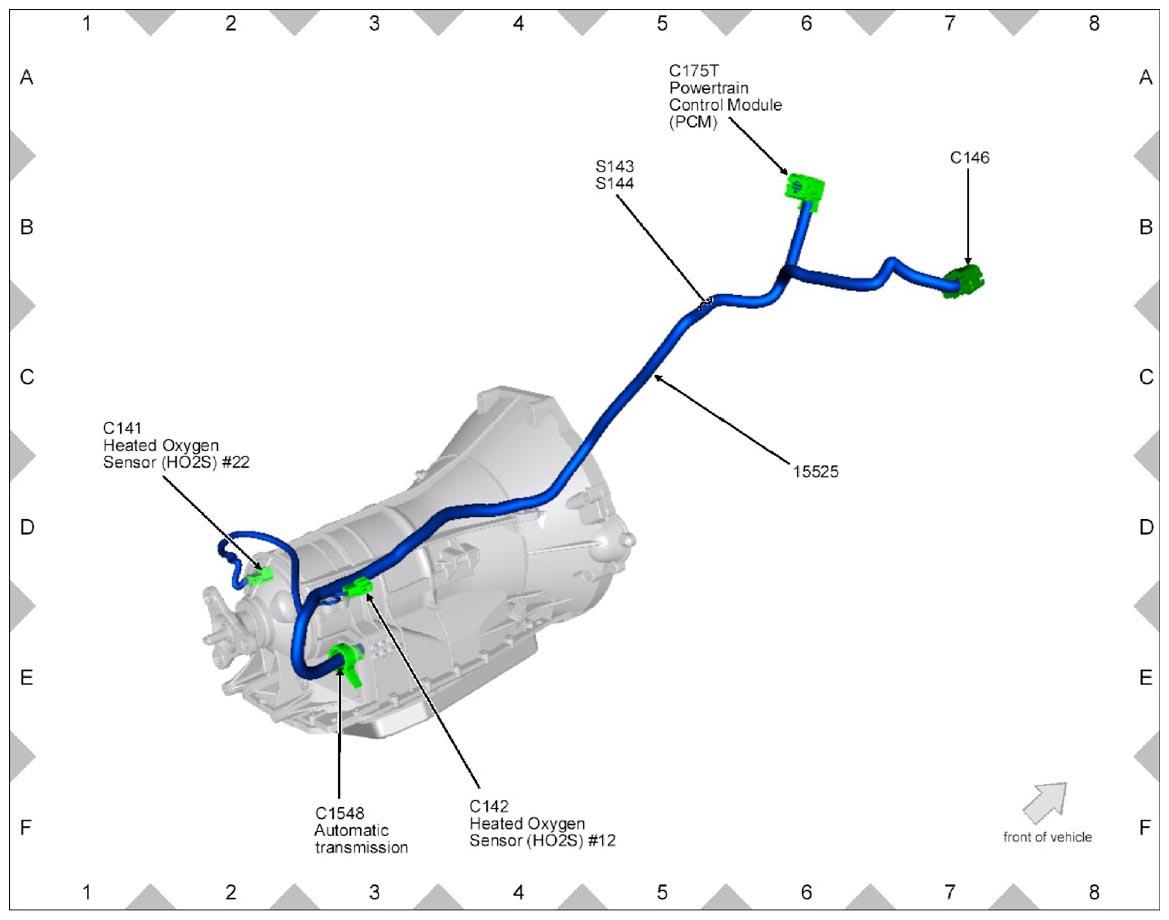

Fig 7: Automatic Transmission Wiring Harness Connectors Location (1 Of 2)

G09225045

Courtesy of FORD MOTOR CO.

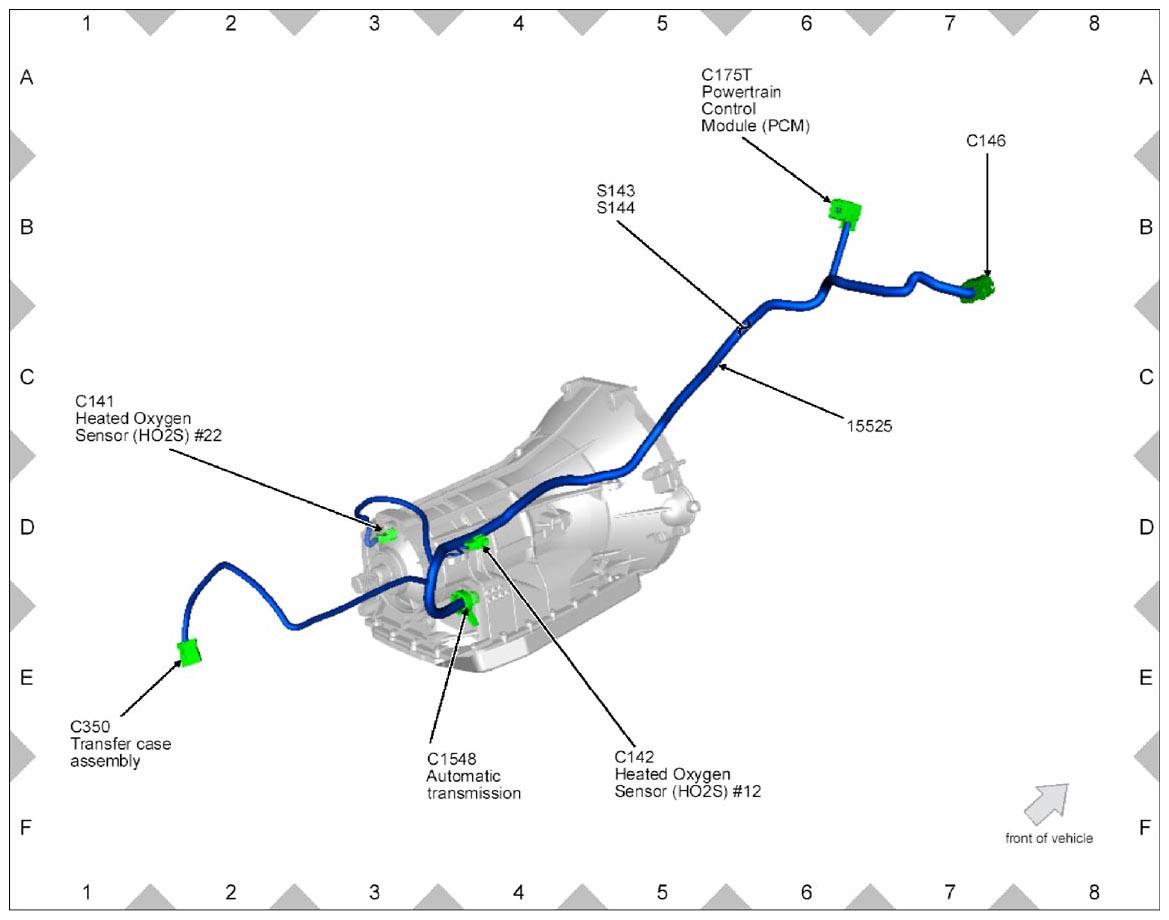

Fig 8: Automatic Transmission Wiring Harness Connectors Location (2 Of 2)

G09225046

Courtesy of FORD MOTOR CO.

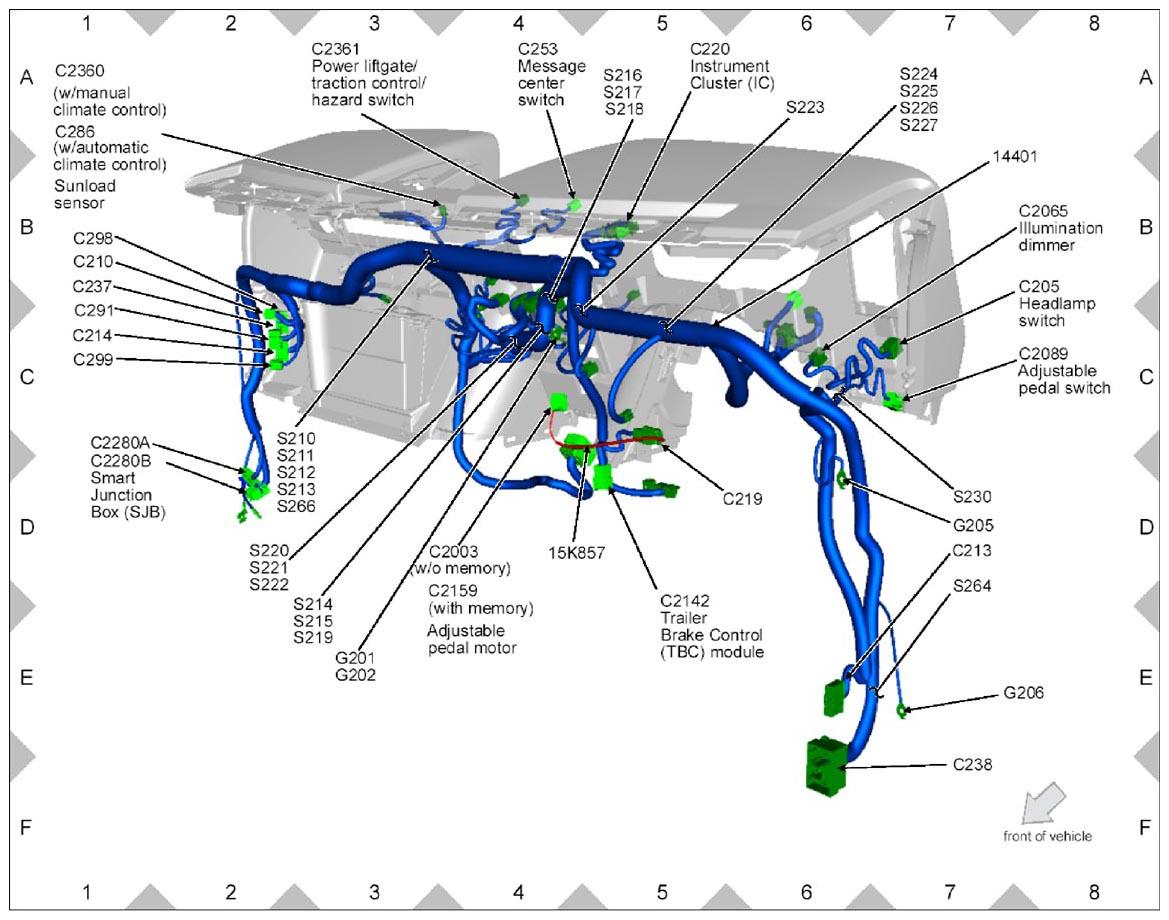

Fig 9: Dashboard Wiring Harness Connectors Location (1 Of 4)

G09225047

Courtesy of FORD MOTOR CO.

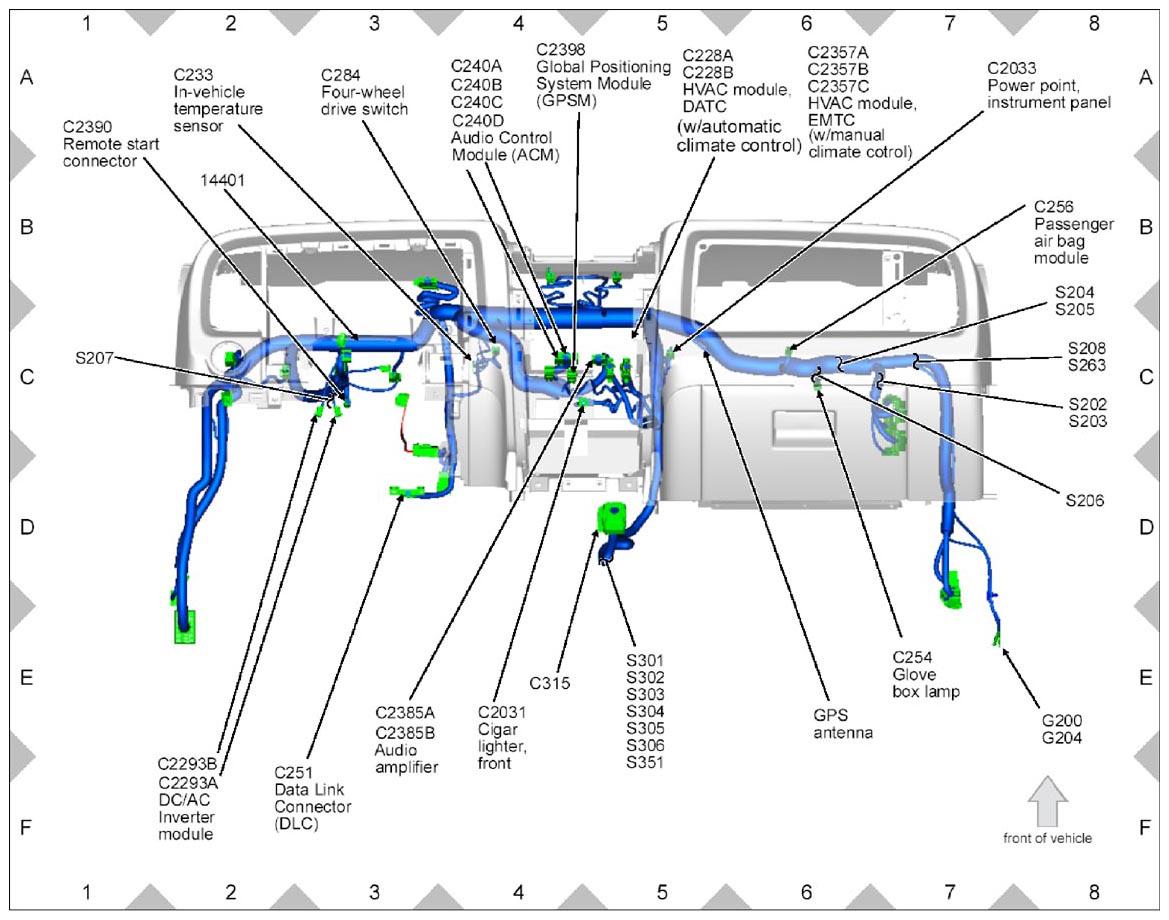

Fig 10: Dashboard Wiring Harness Connectors Location (2 Of 4)

G09225048

Courtesy of FORD MOTOR CO.

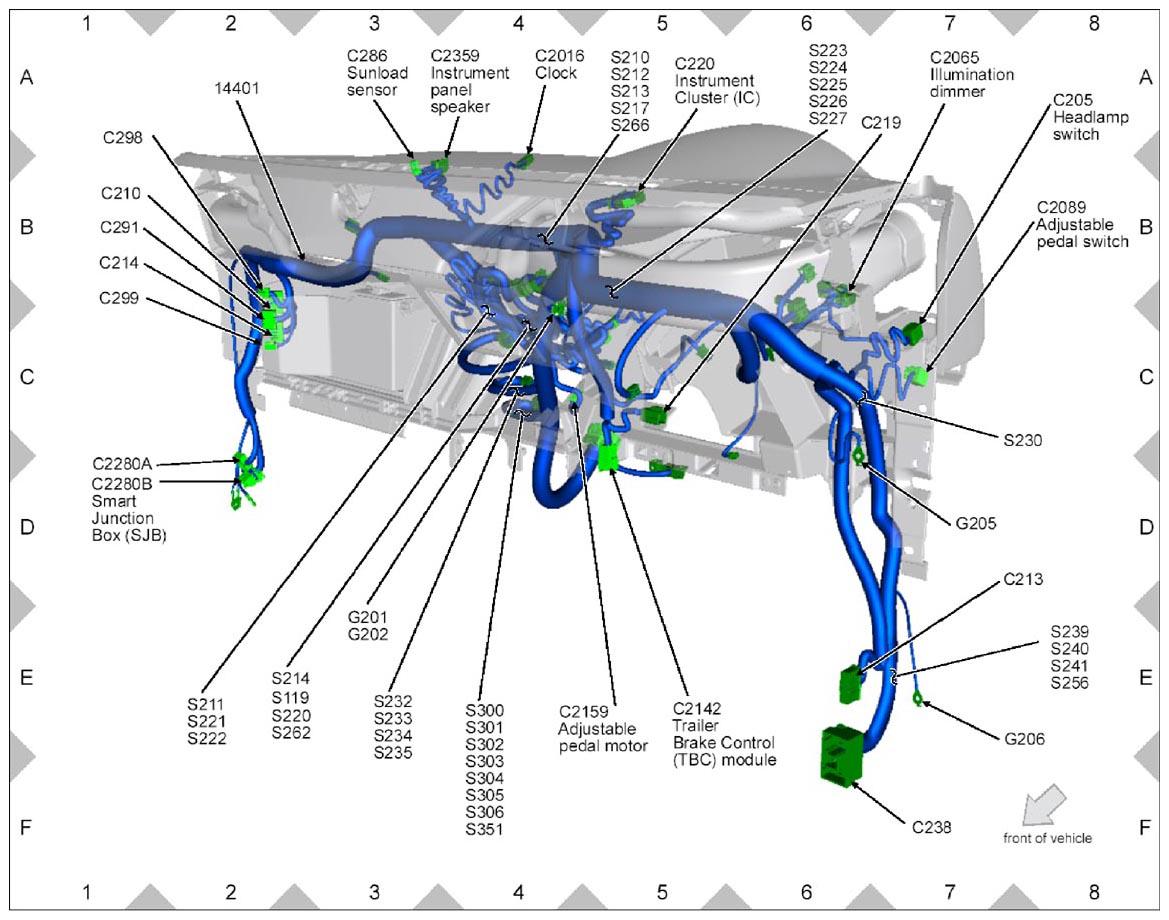

Fig 11: Dashboard Wiring Harness Connectors Location (3 Of 4)

G09225049

Courtesy of FORD MOTOR CO.

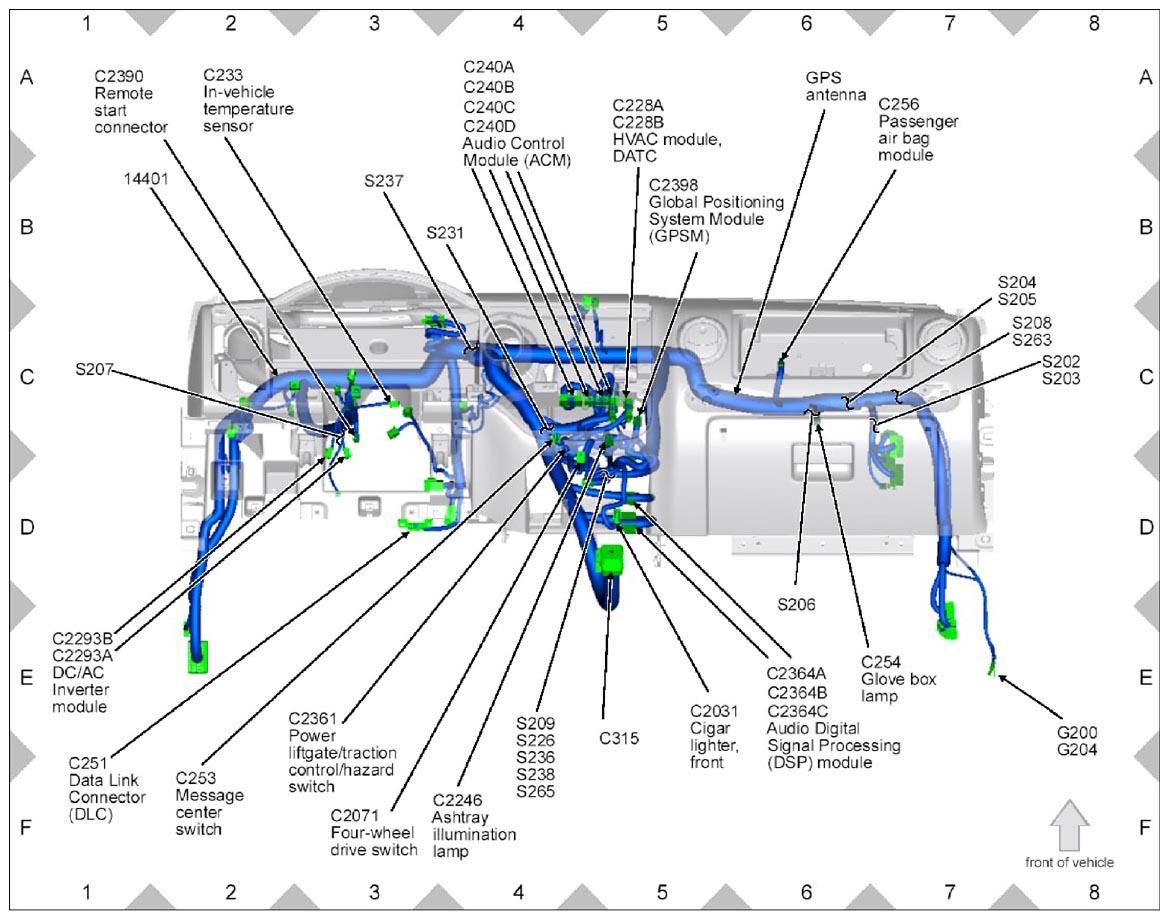

Fig 12: Dashboard Wiring Harness Connectors Location (4 Of 4)

G09225050

Courtesy of FORD MOTOR CO.

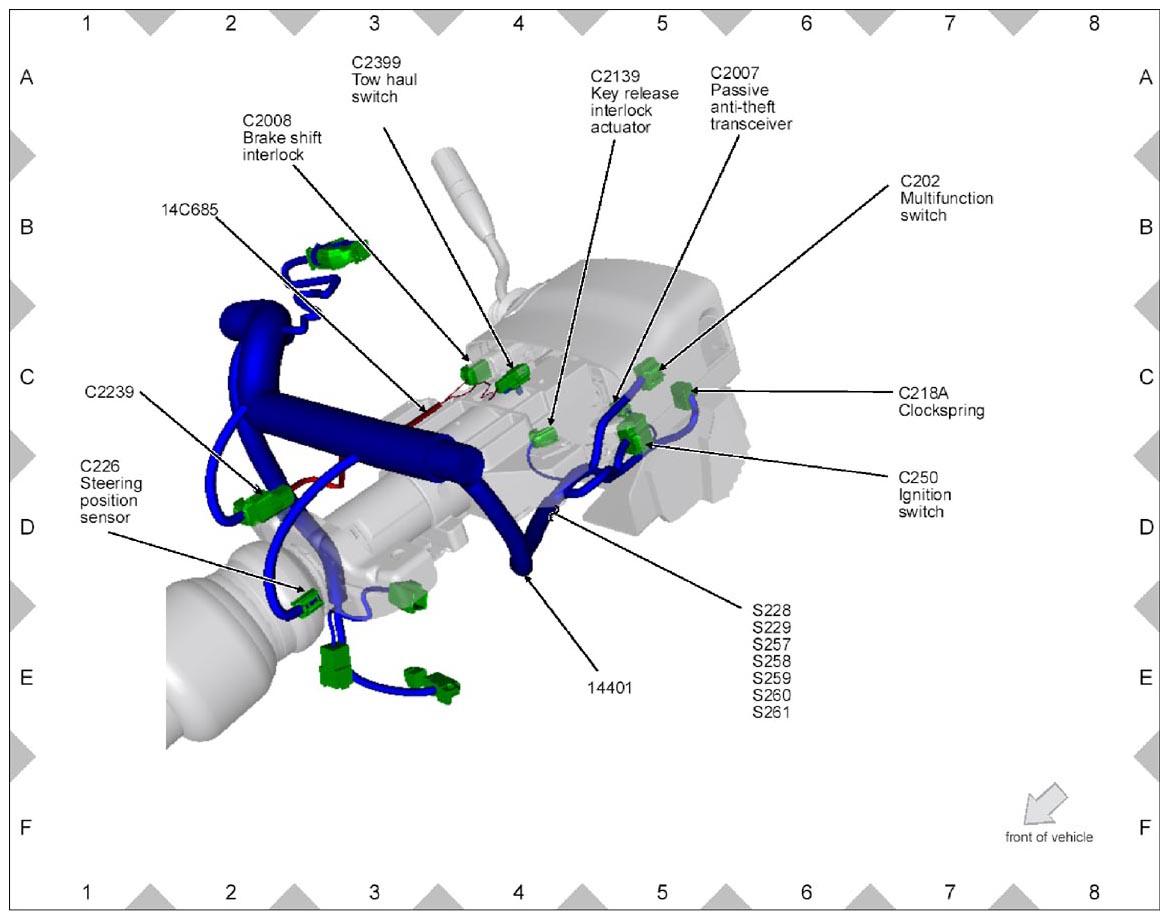

Fig 13: Steering Column Wiring Harness Connectors Locations (1 Of 2)

G09225051

Courtesy of FORD MOTOR CO.

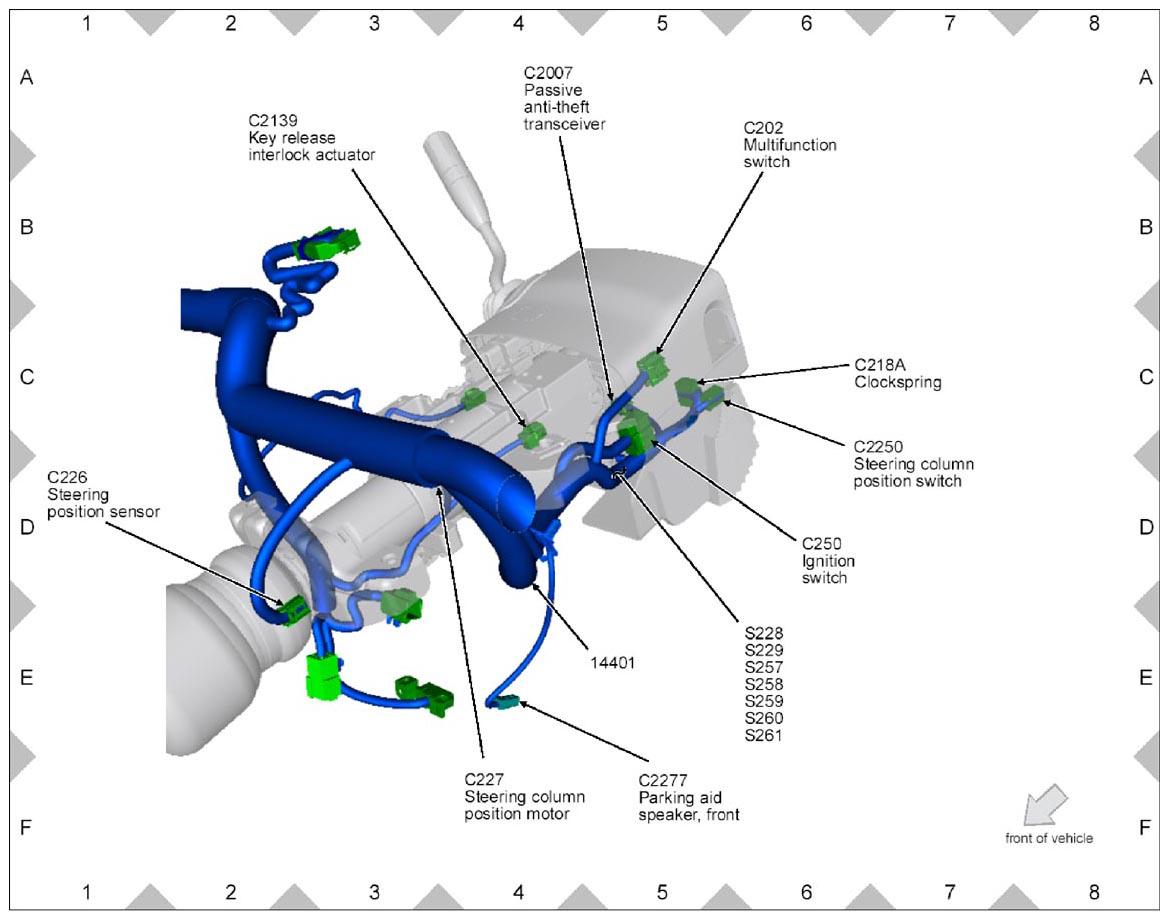

Fig 14: Steering Column Wiring Harness Connectors Locations (2 Of 2)

G09225052

Courtesy of FORD MOTOR CO.

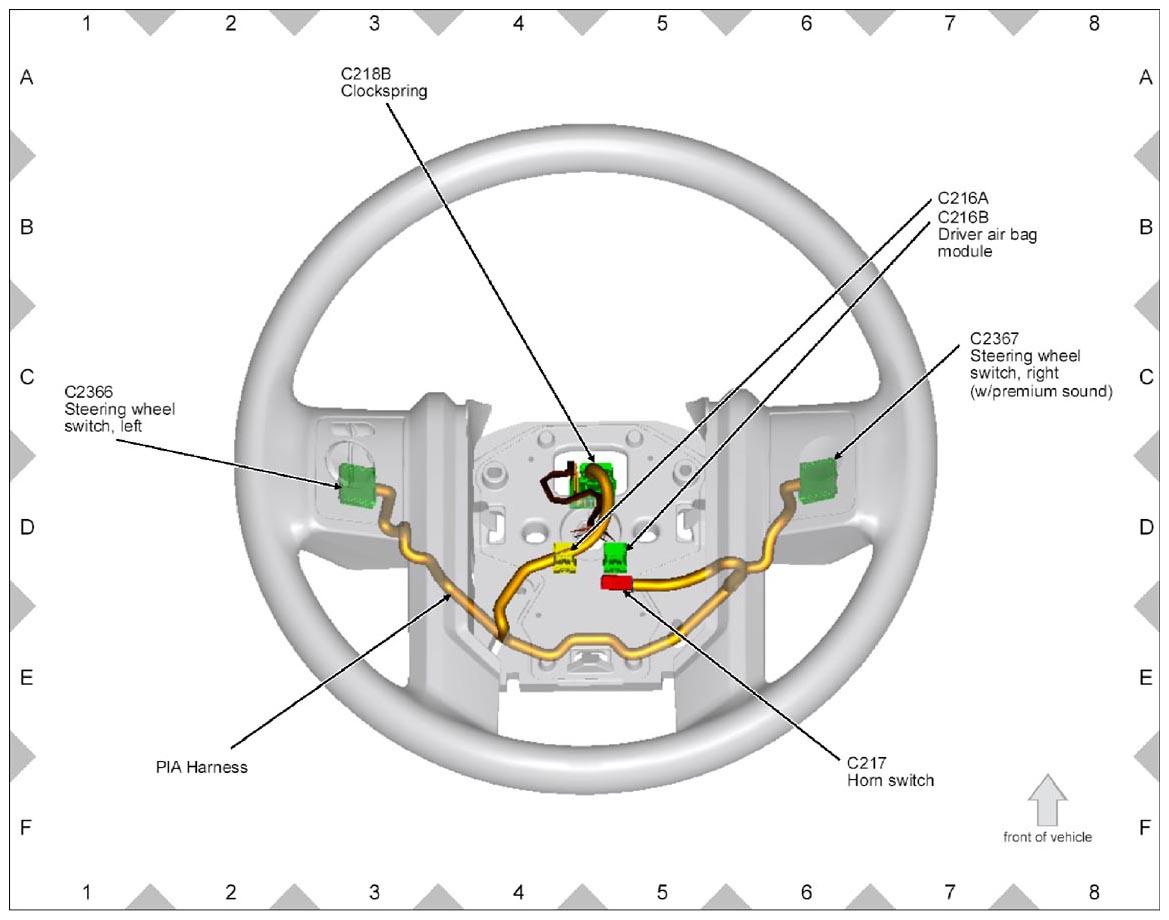

Fig 15: Steering Wheel Wiring Harness Connectors Location (1 Of 2)

G09225053

Courtesy of FORD MOTOR CO.

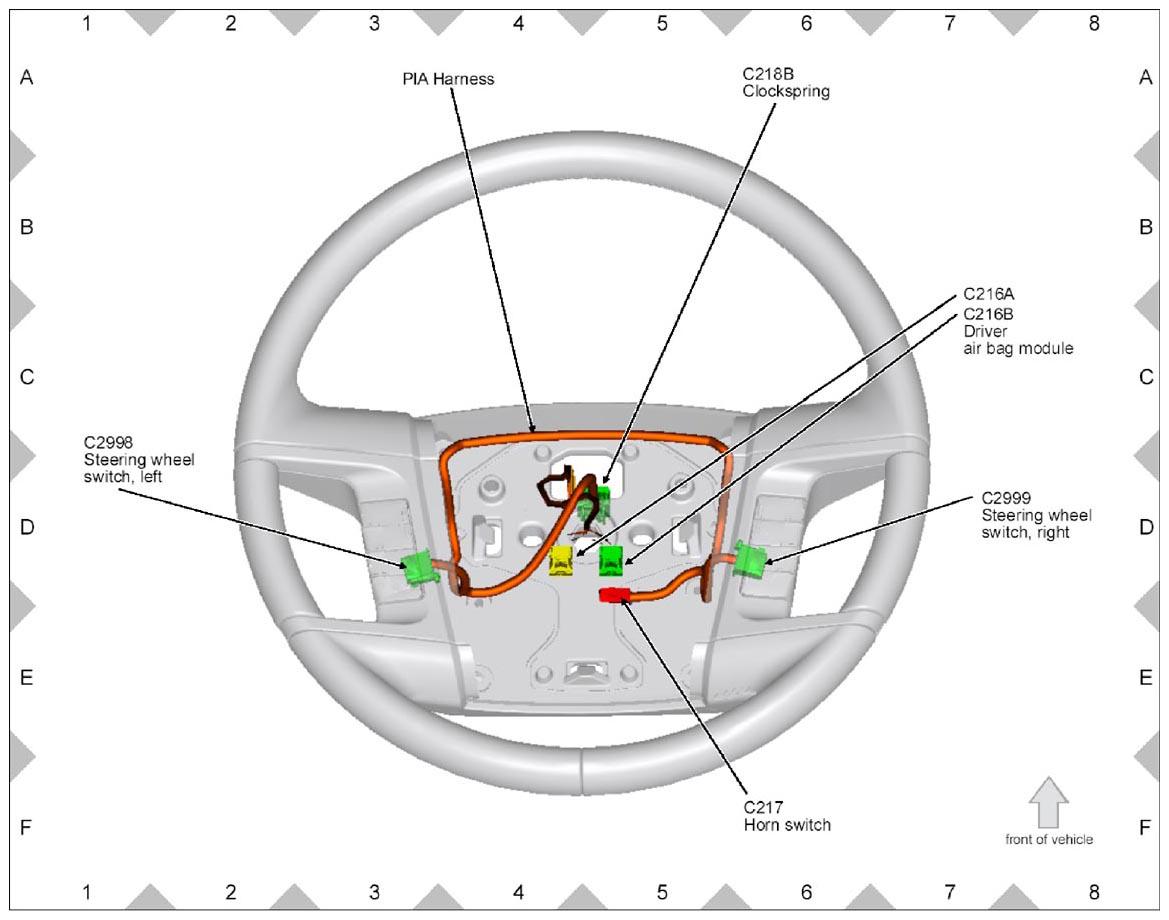

Fig 16: Steering Wheel Wiring Harness Connectors Location (2 Of 2)

G09225054

Courtesy of FORD MOTOR CO.

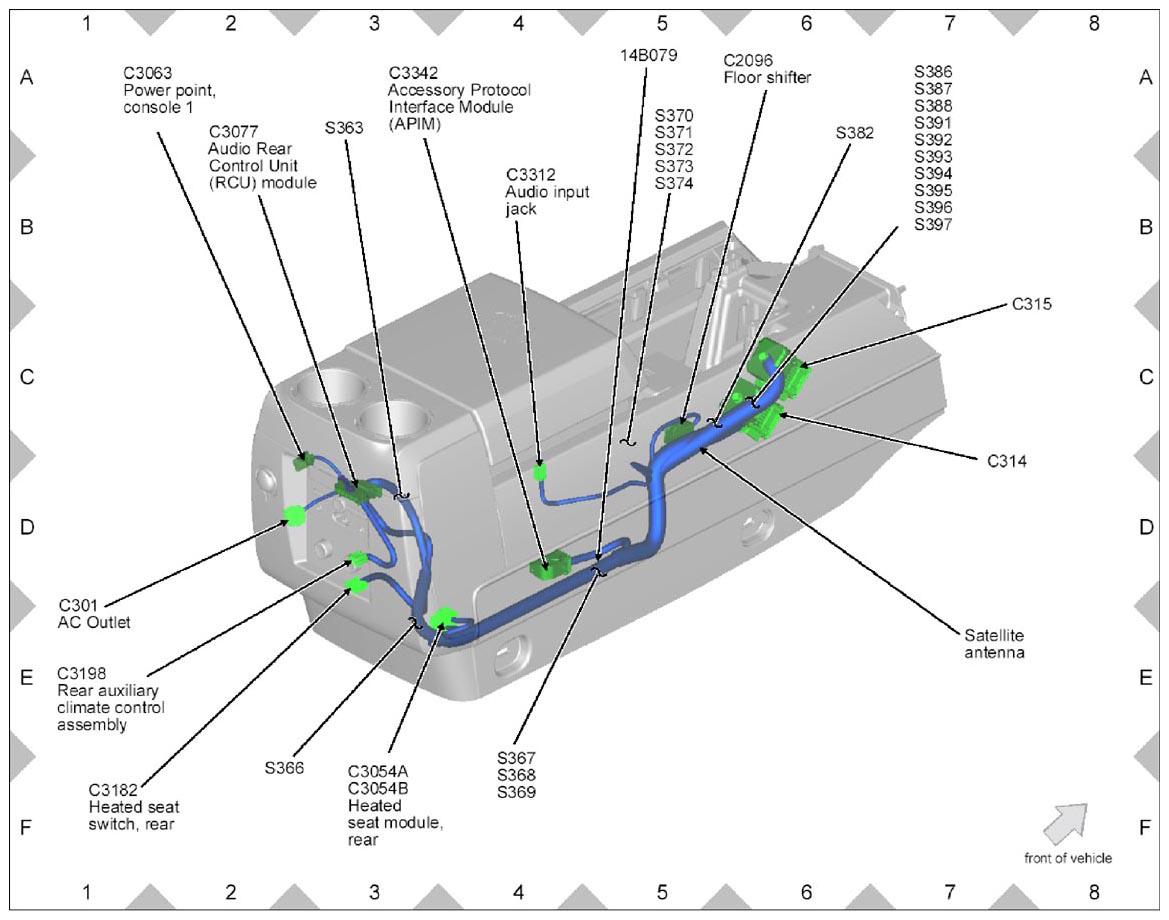

Fig 17: Center Console Wiring Harness Connectors Location (1 Of 2)

G09225055

Courtesy of FORD MOTOR CO.

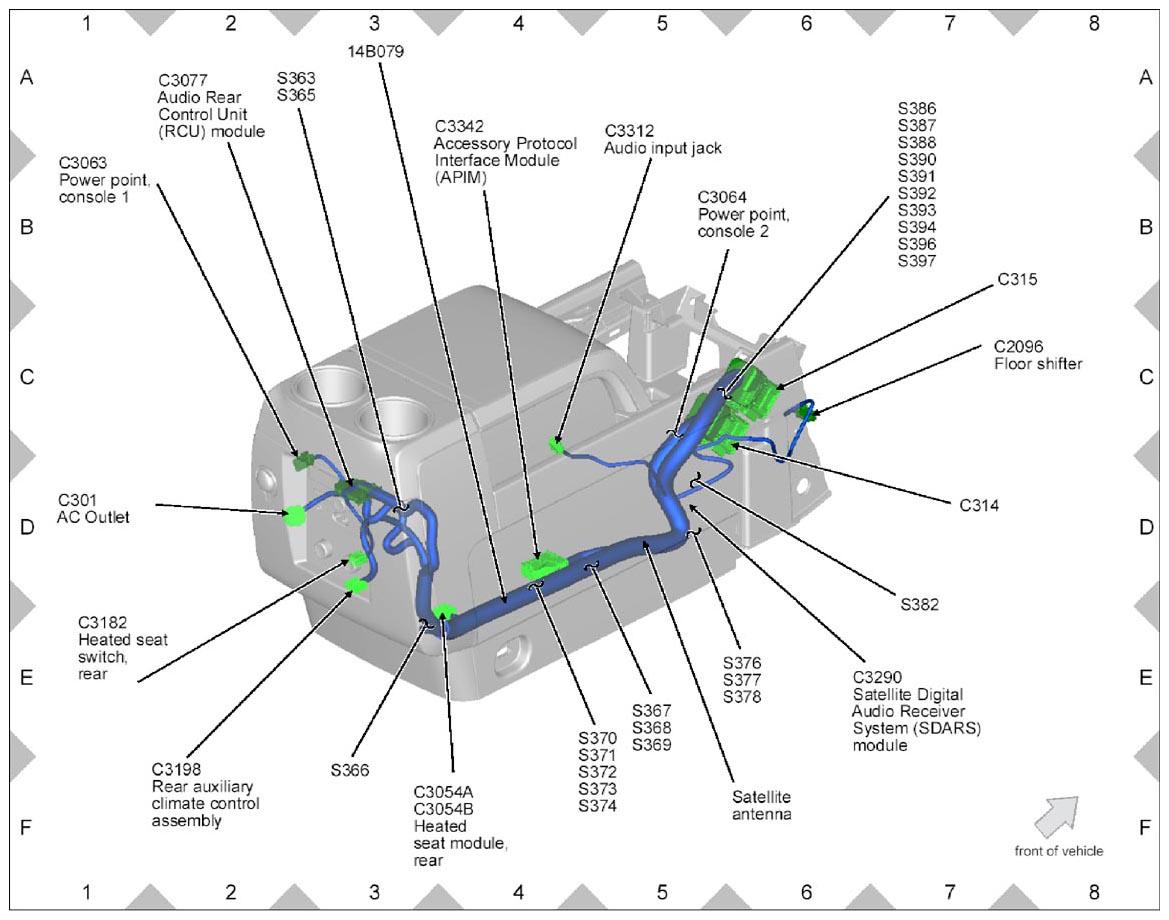

Fig 18: Center Console Wiring Harness Connectors Location (2 Of 2)

G09225056

Courtesy of FORD MOTOR CO.

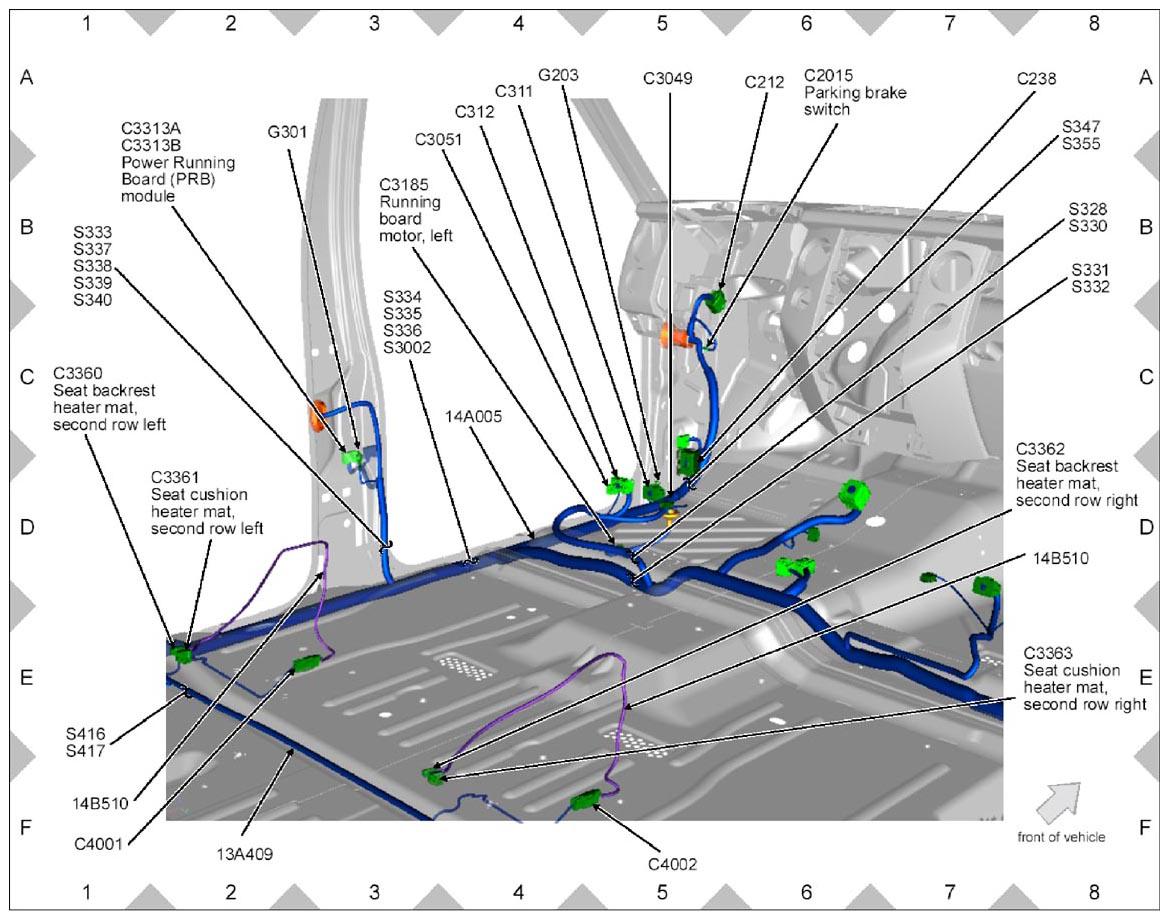

Fig 19: LH Front Compartment Wiring Harness Connectors Location (1 Of 2)

G09225057

Courtesy of FORD MOTOR CO.

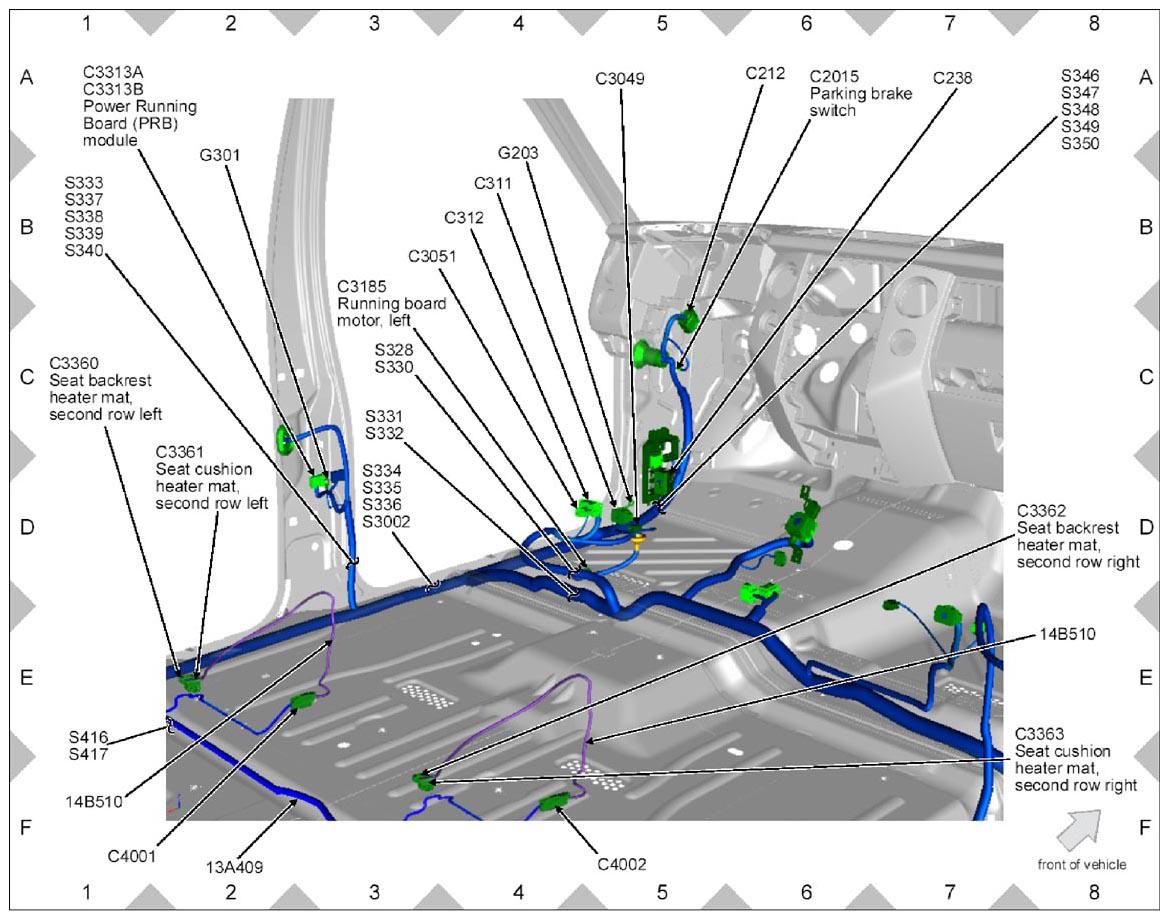

Fig 20: LH Front Compartment Wiring Harness Connectors Location (2 Of 2)

G09225059

Courtesy of FORD MOTOR CO.

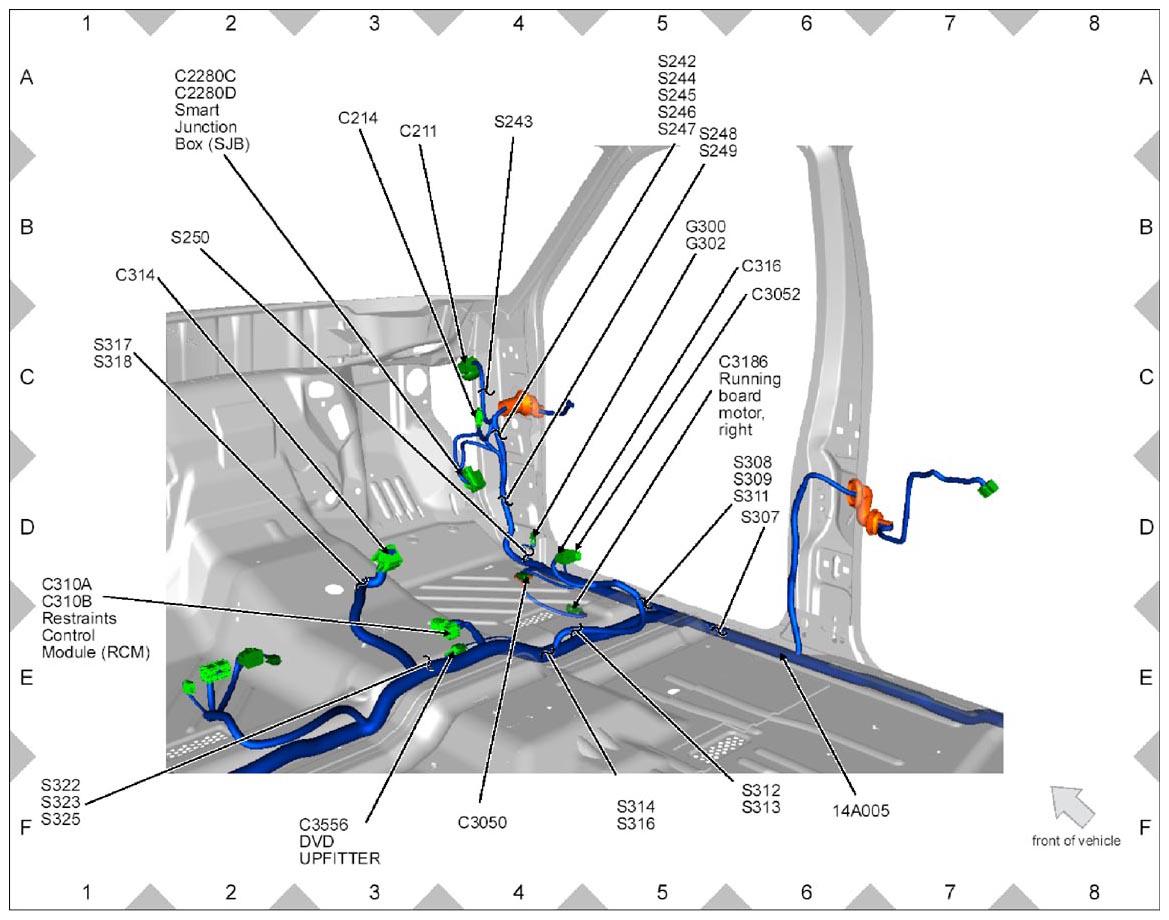

Fig 21: RH Front Compartment Wiring Harness Connectors Location (1 Of 2)

G09225058

Courtesy of FORD MOTOR CO.

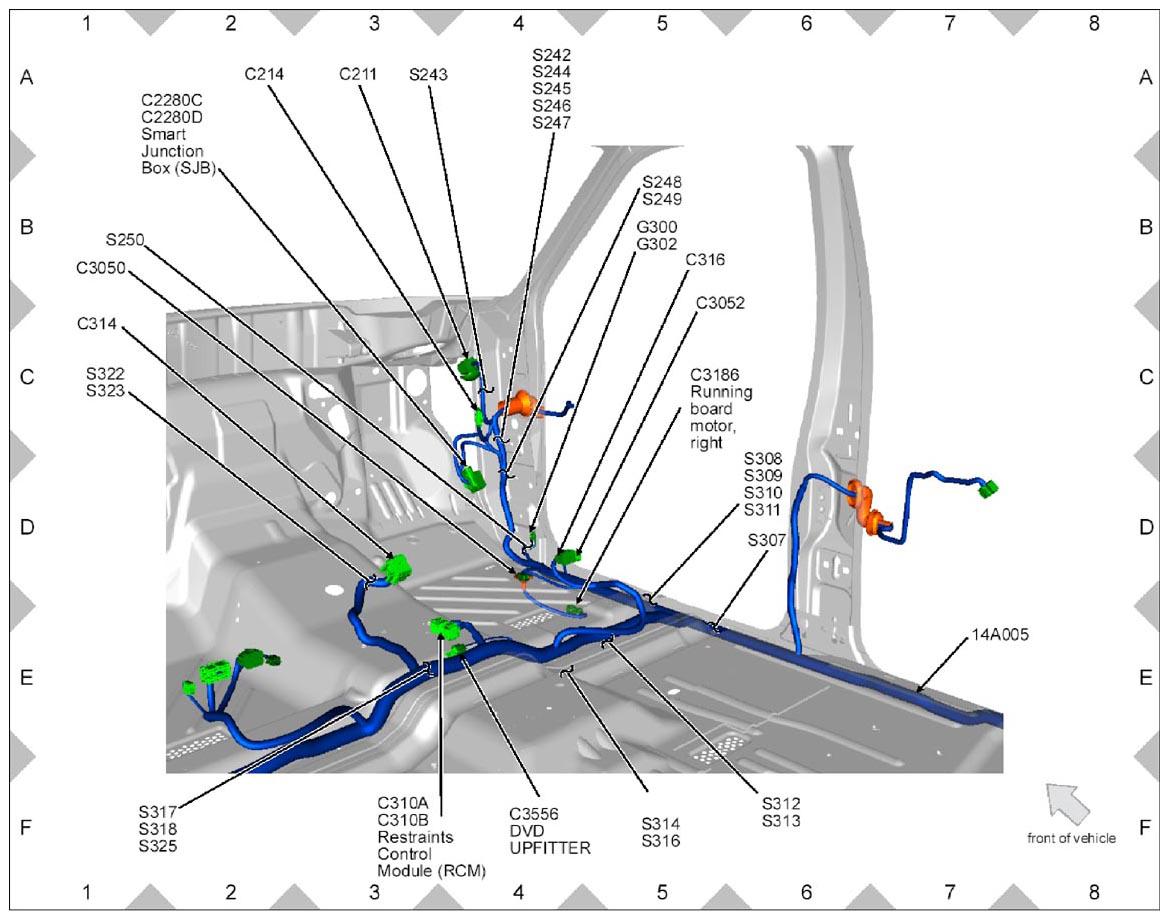

Fig 22: RH Front Compartment Wiring Harness Connectors Location (2 Of 2)

G09225060

Courtesy of FORD MOTOR CO.

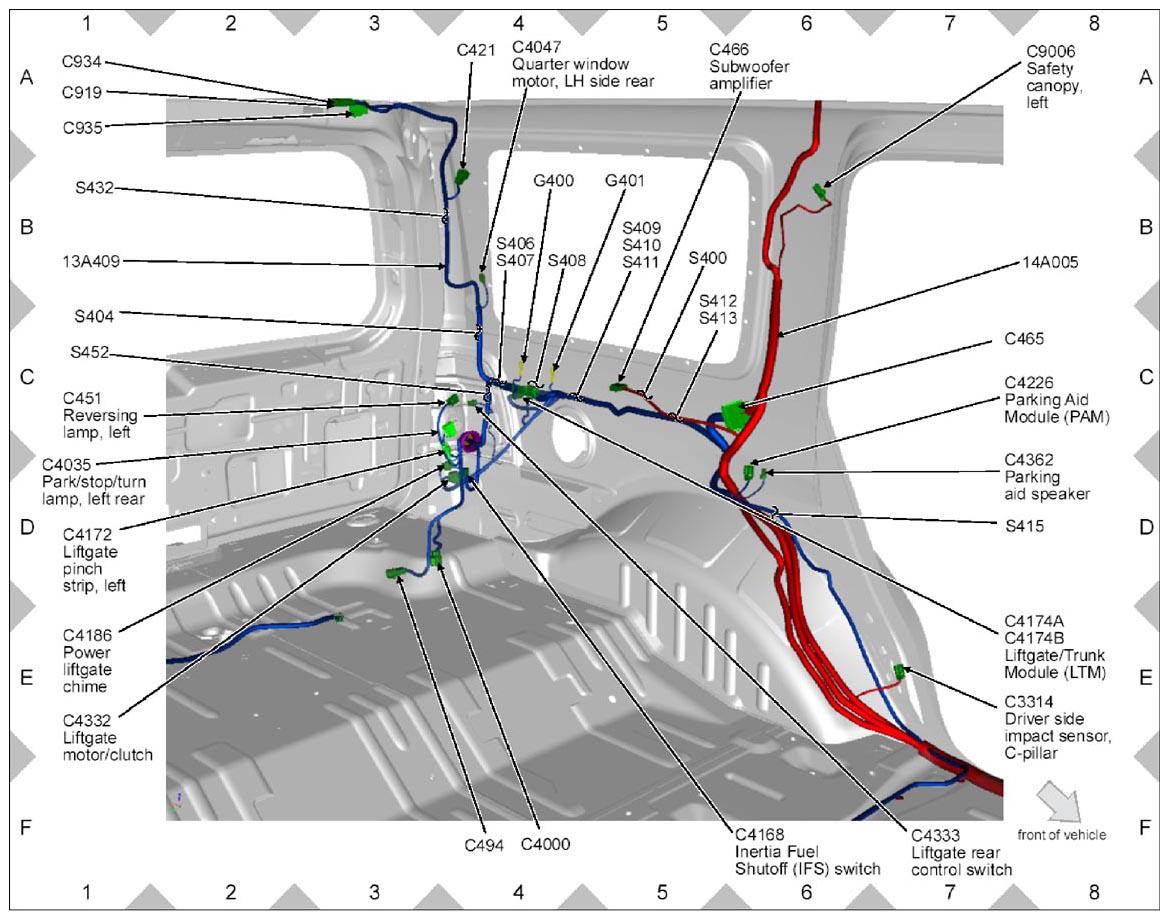

Fig 23: LH Rear Compartment Wiring Harness Connectors Location (1 Of 3)

G09225061

Courtesy of FORD MOTOR CO.

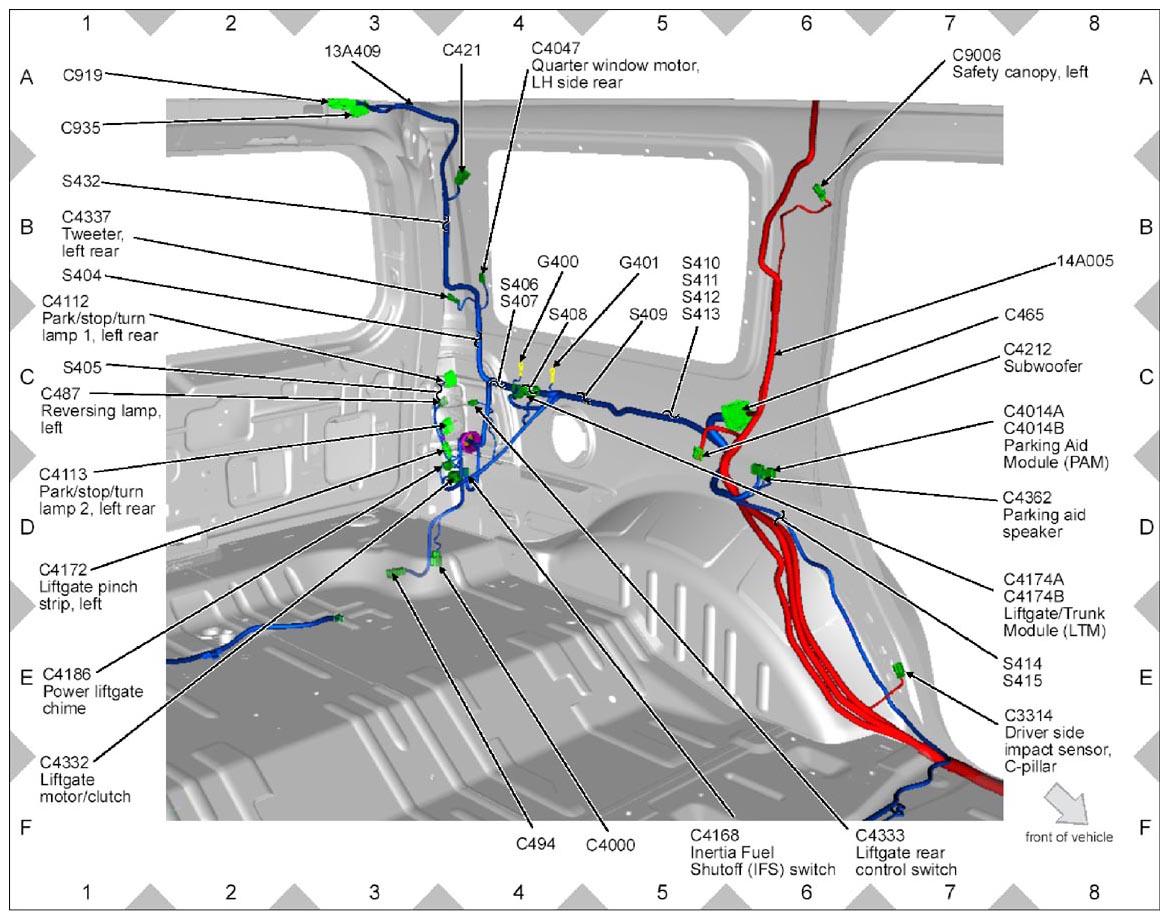

Fig 24: LH Rear Compartment Wiring Harness Connectors Location (2 Of 3)

G09225063

Courtesy of FORD MOTOR CO.

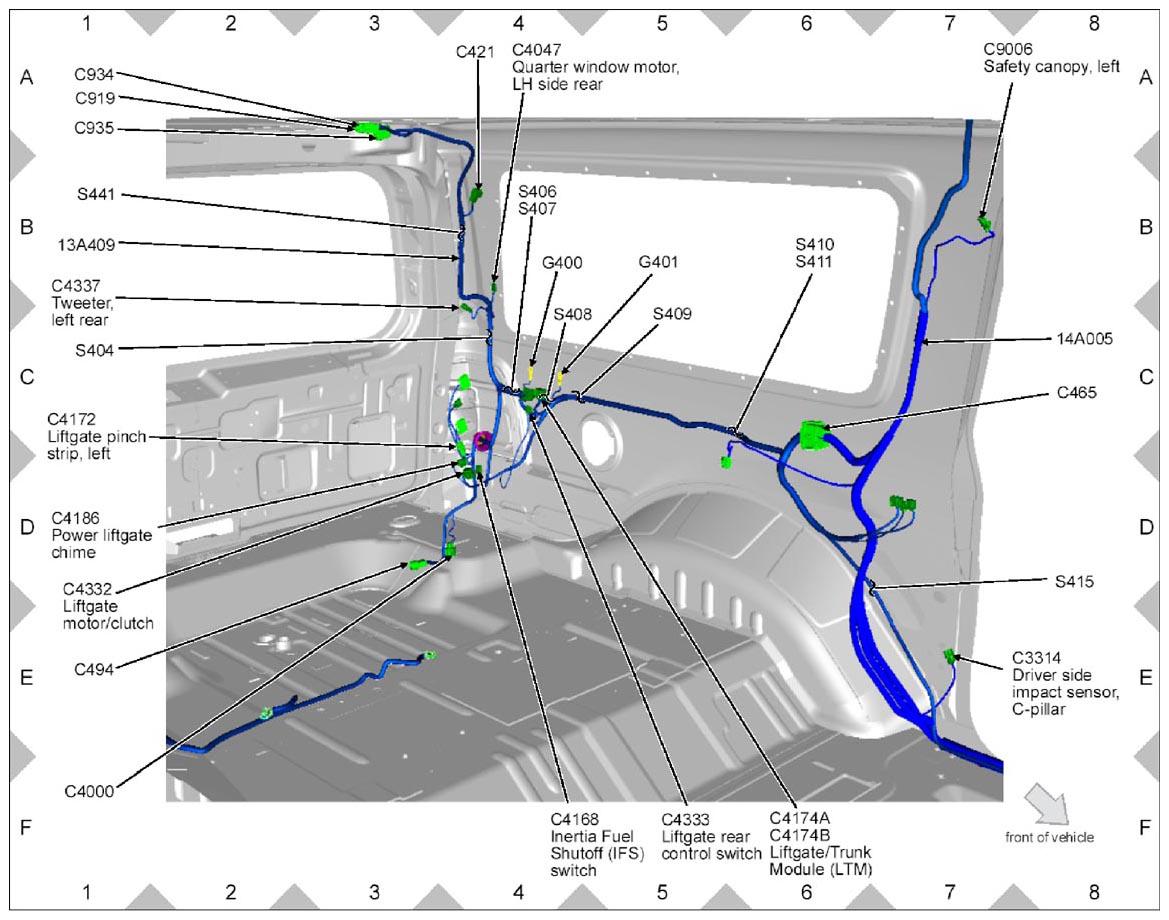

Fig 25: LH Rear Compartment Wiring Harness Connectors Location (3 Of 3)

G09225065

Courtesy of FORD MOTOR CO.

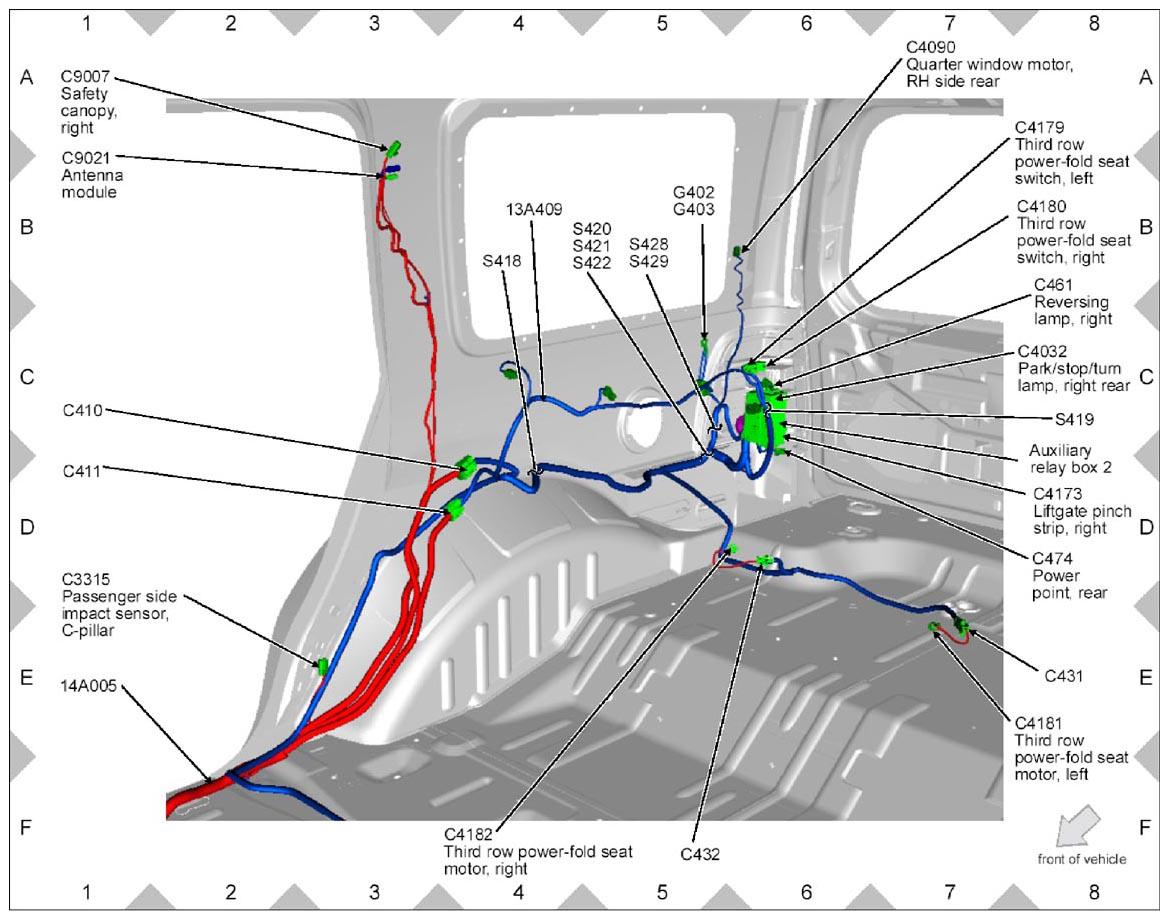

Fig 26: RH Rear Compartment Wiring Harness Connectors Location (1 Of 3)

G09225062

Courtesy of FORD MOTOR CO.

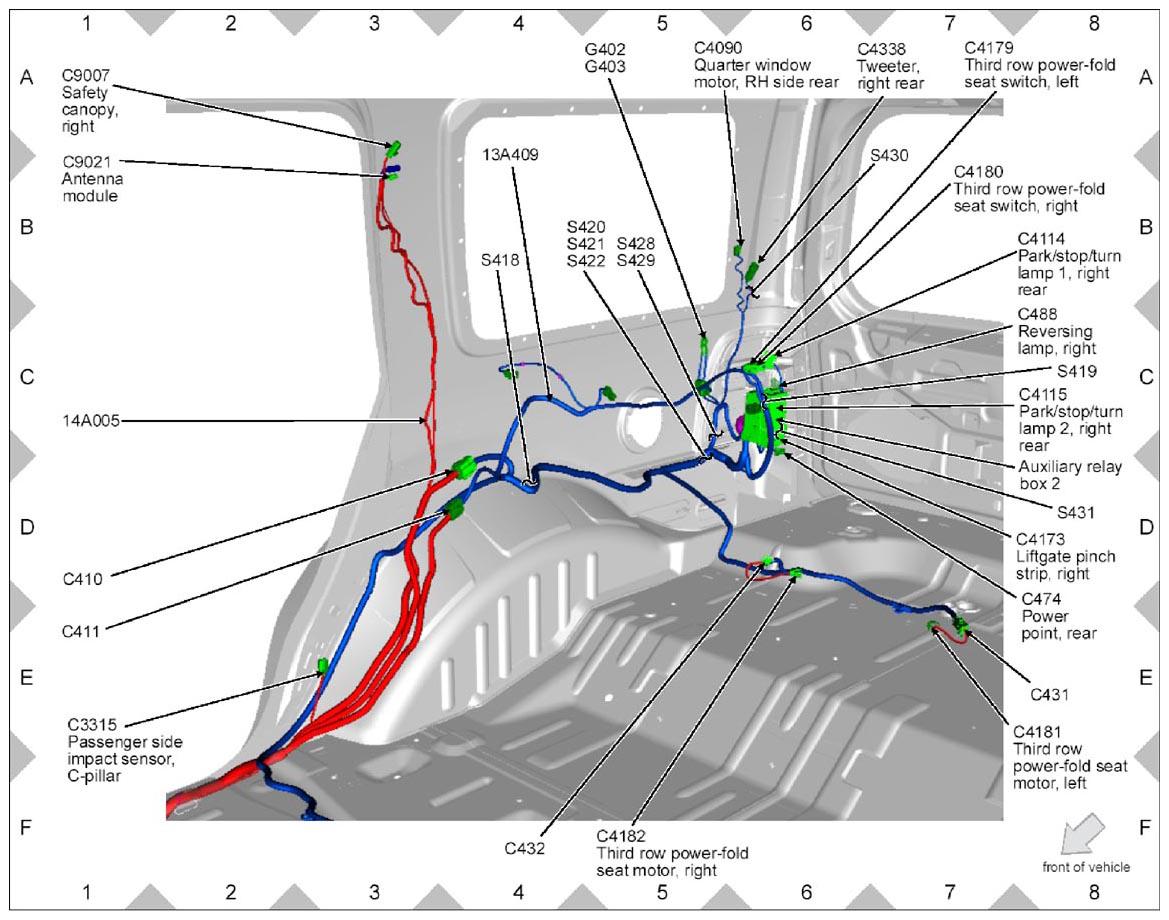

Fig 27: RH Rear Compartment Wiring Harness Connectors Location (2 Of 3)

G09225064

Courtesy of FORD MOTOR CO.

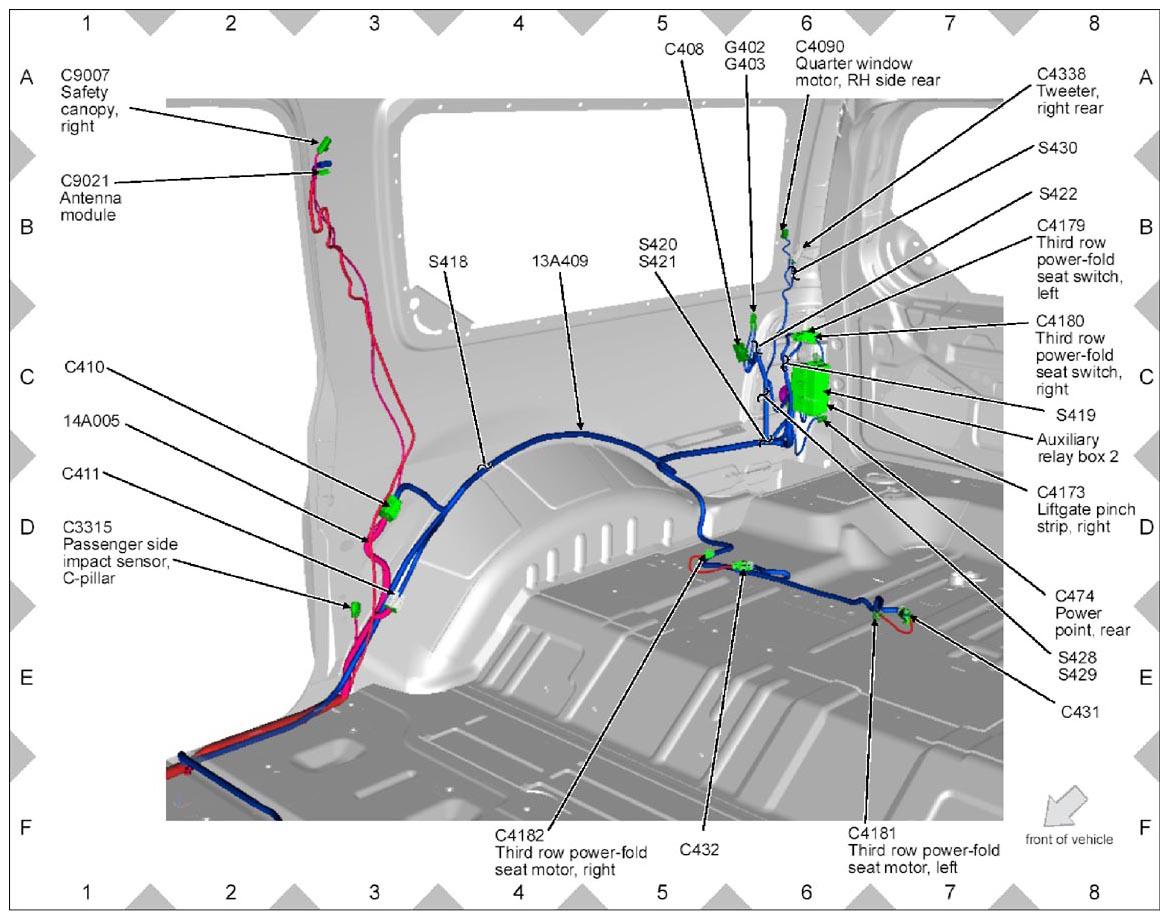

Fig 28: RH Rear Compartment Wiring Harness Connectors Location (3 Of 3)

G09225066

Courtesy of FORD MOTOR CO.

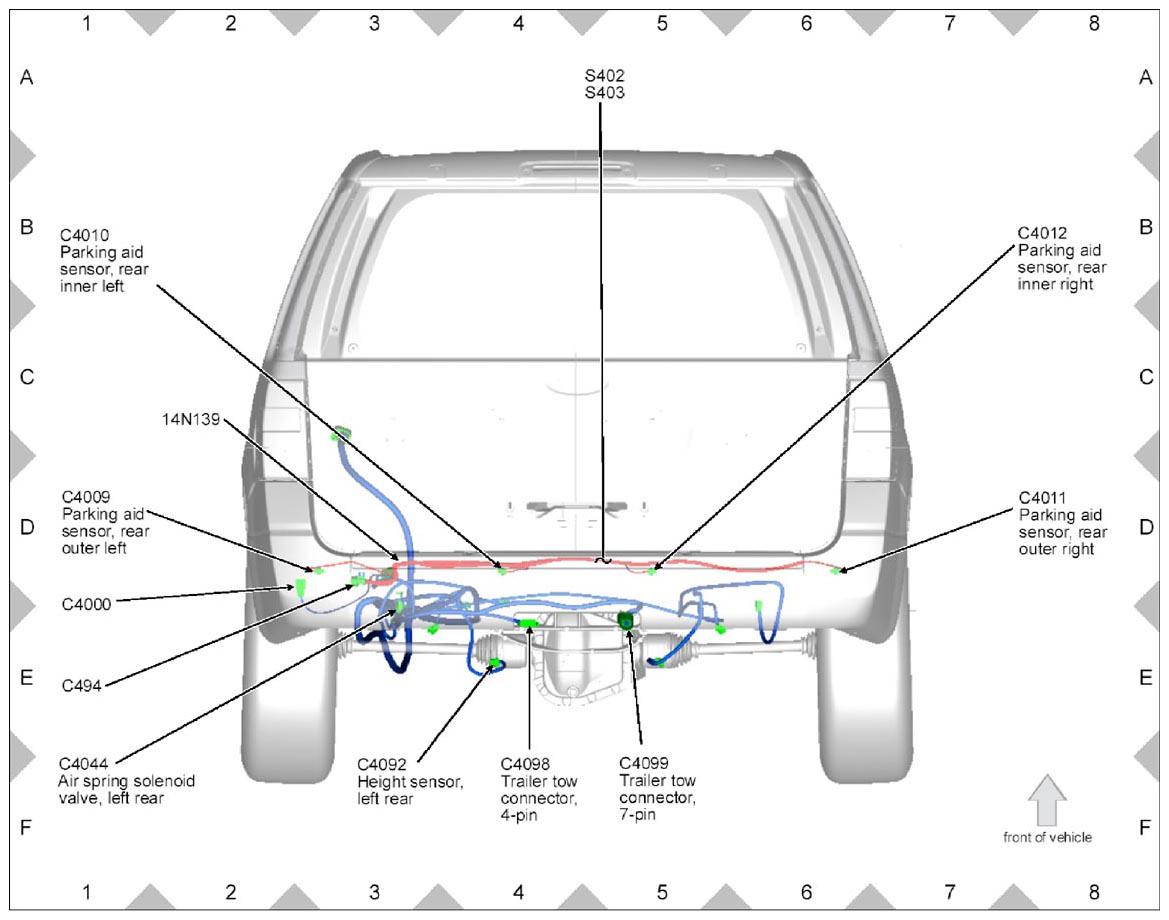

Fig 29: Rear Bumper Wiring Harness Connectors Location

G09225067

Courtesy of FORD MOTOR CO.

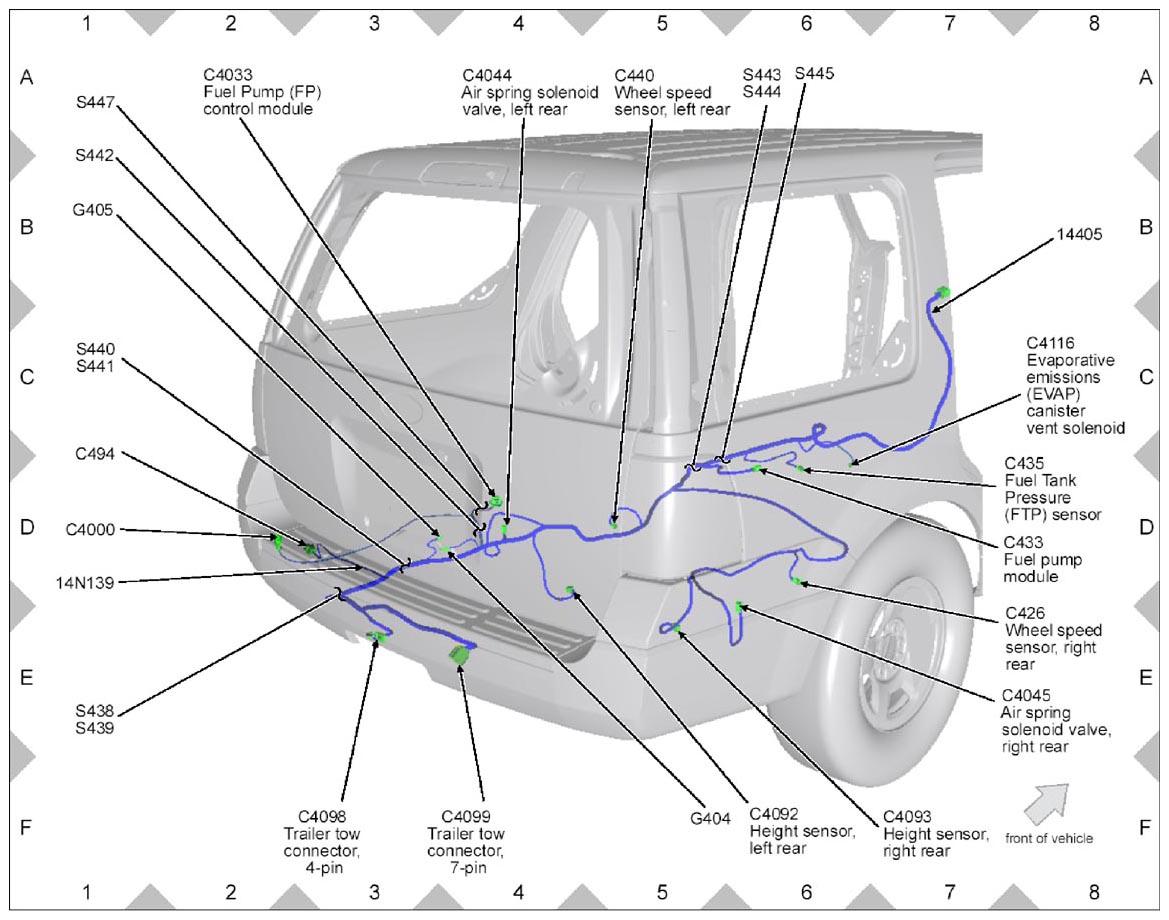

Fig 30: Rear Body Wiring Harness Connectors Location (1 Of 2)

G09225068

Courtesy of FORD MOTOR CO.

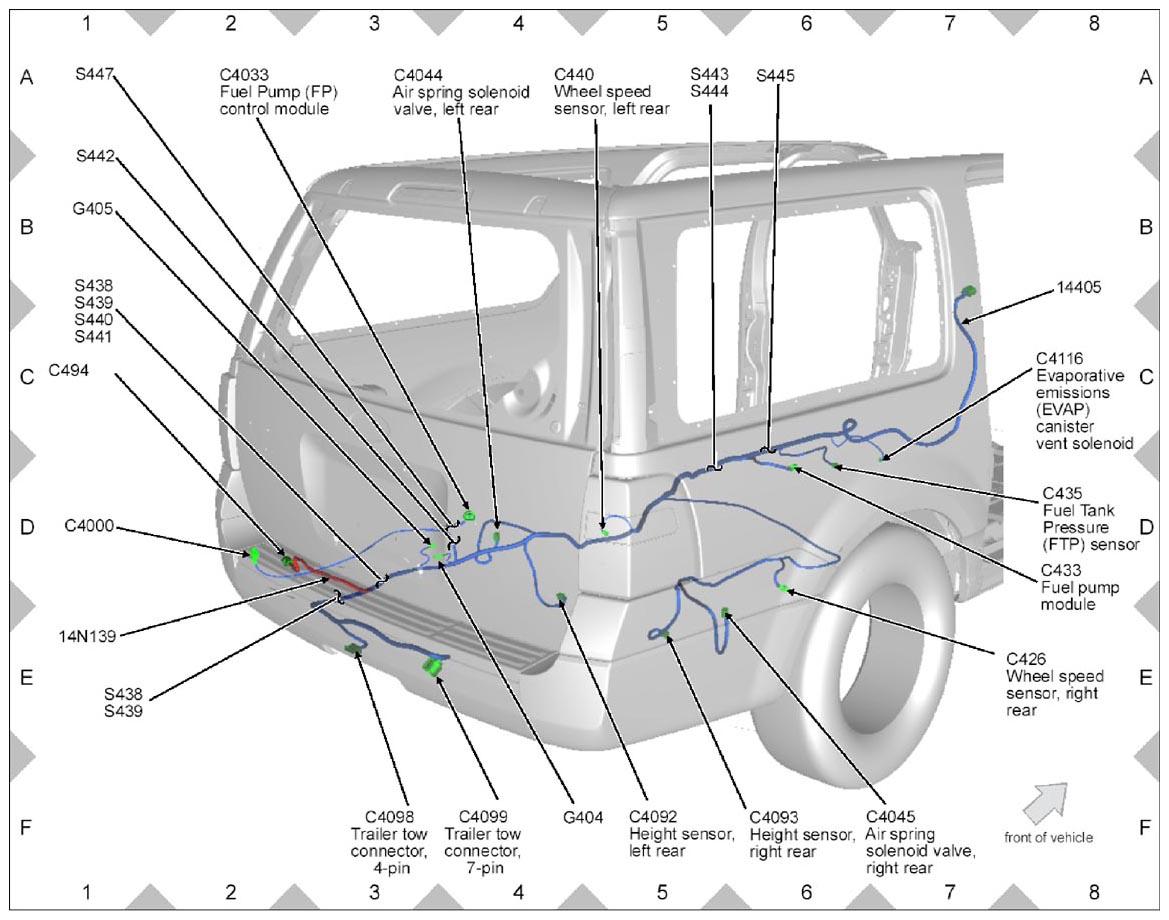

Fig 31: Rear Body Wiring Harness Connectors Location (2 Of 2)

G09225069

Courtesy of FORD MOTOR CO.

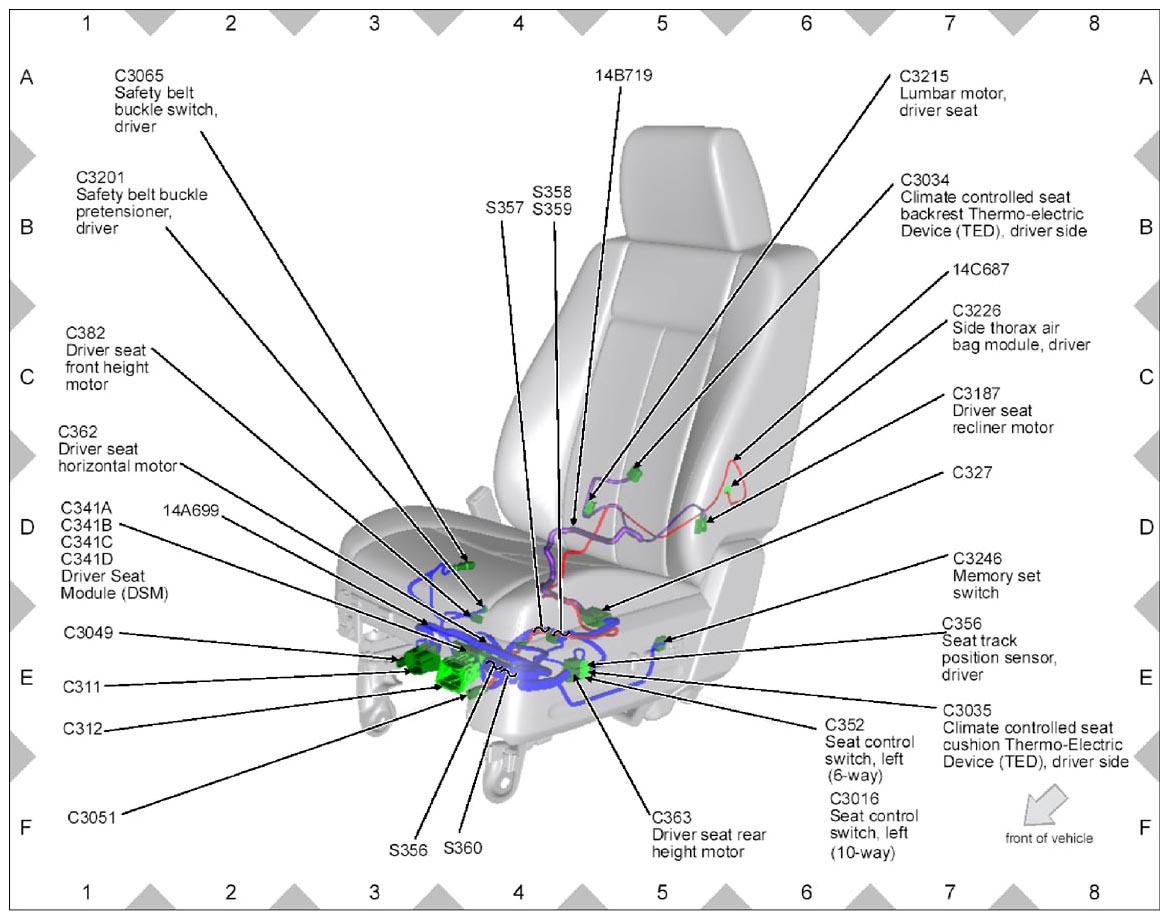

Fig 32: Driver Seat Wiring Harness Connectors Location

G09225070

Courtesy of FORD MOTOR CO.

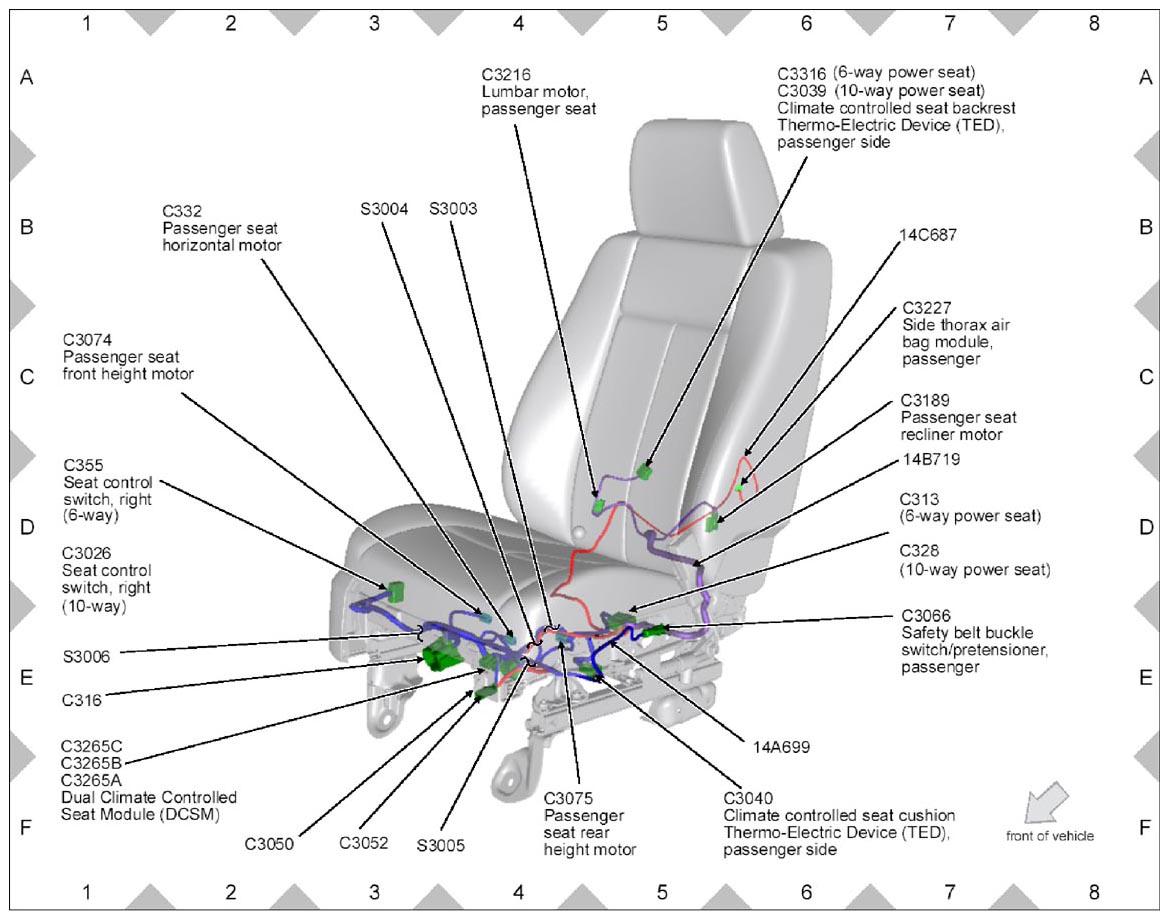

Fig 33: Passenger Seat Wiring Harness Connectors Location

G09225071

Courtesy of FORD MOTOR CO.

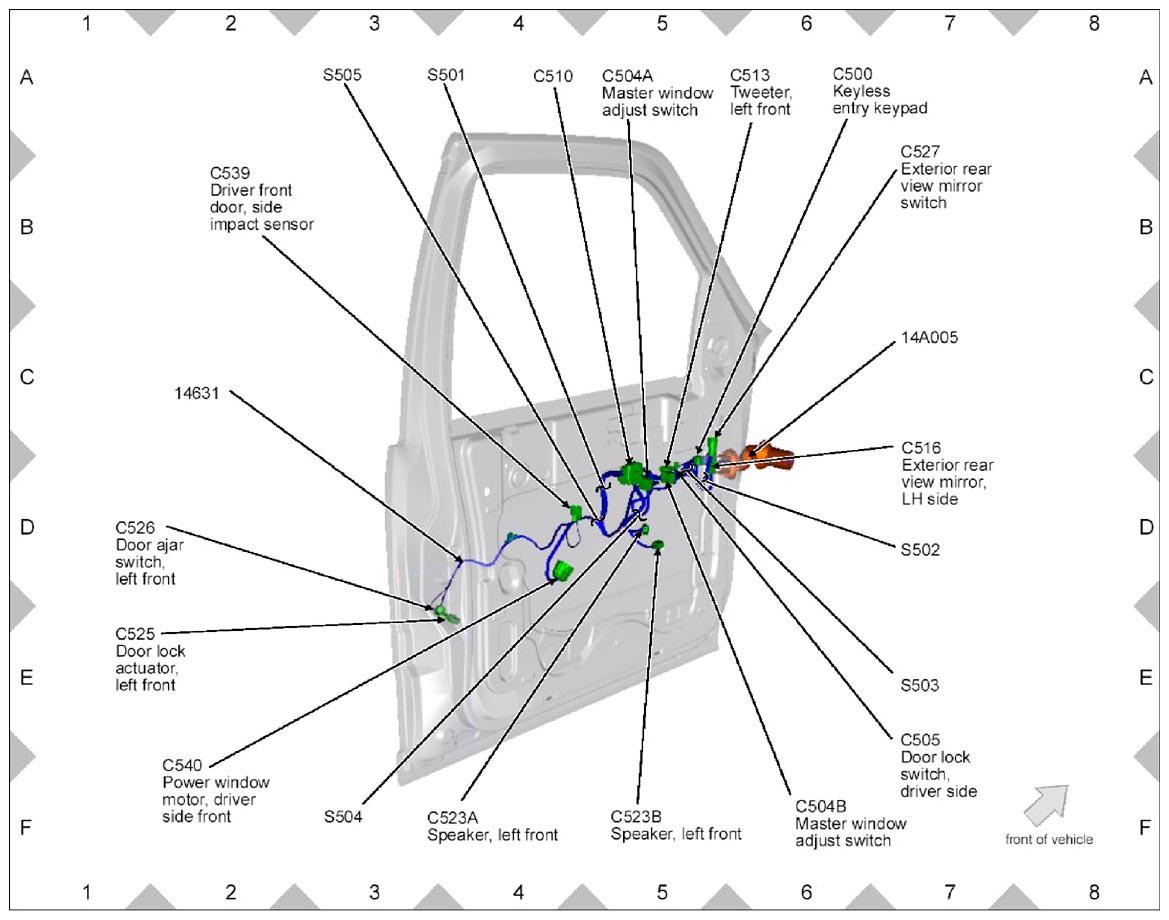

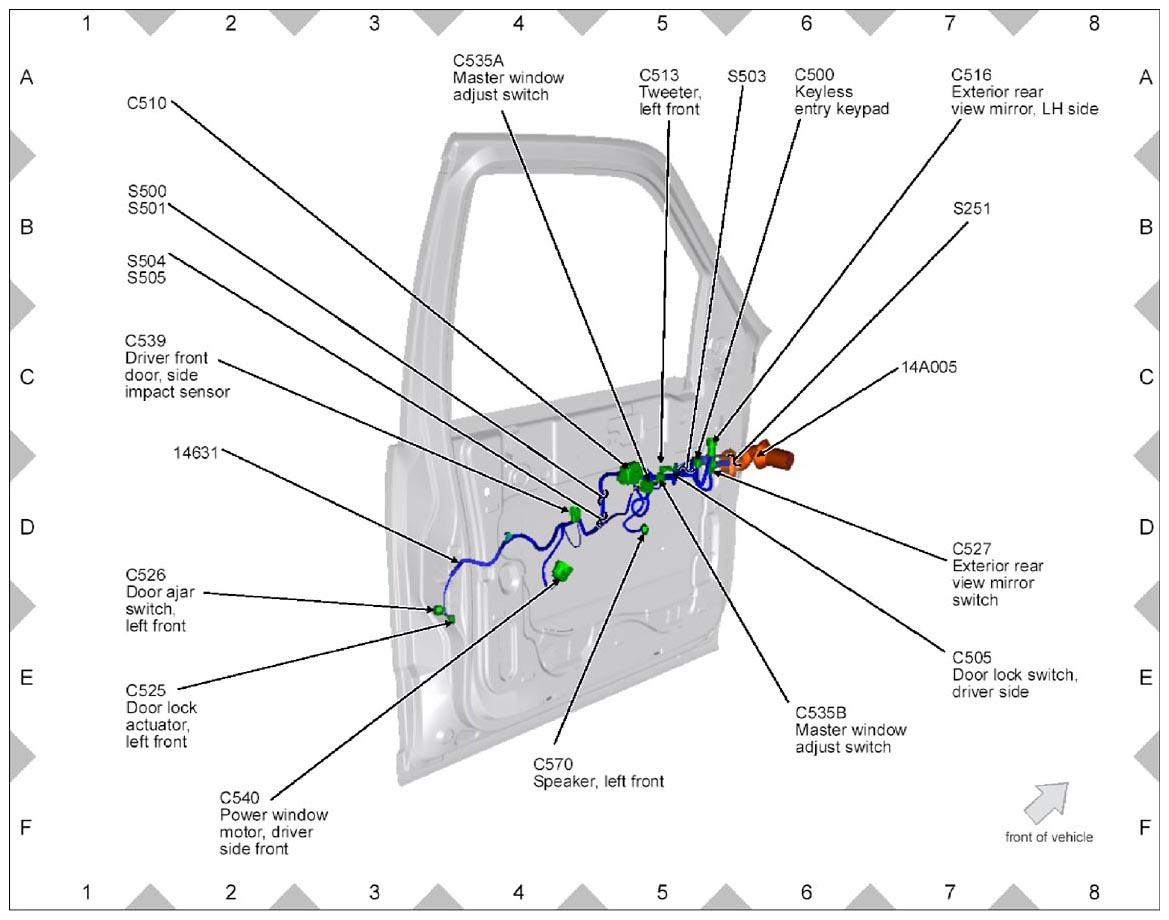

Fig 34: LH Front Door Wiring Harness Connectors Location (1 Of 2)

G09225072

Courtesy of FORD MOTOR CO.

Fig 35: LH Front Door Wiring Harness Connectors Location (2 Of 2)

G09225074

Courtesy of FORD MOTOR CO.

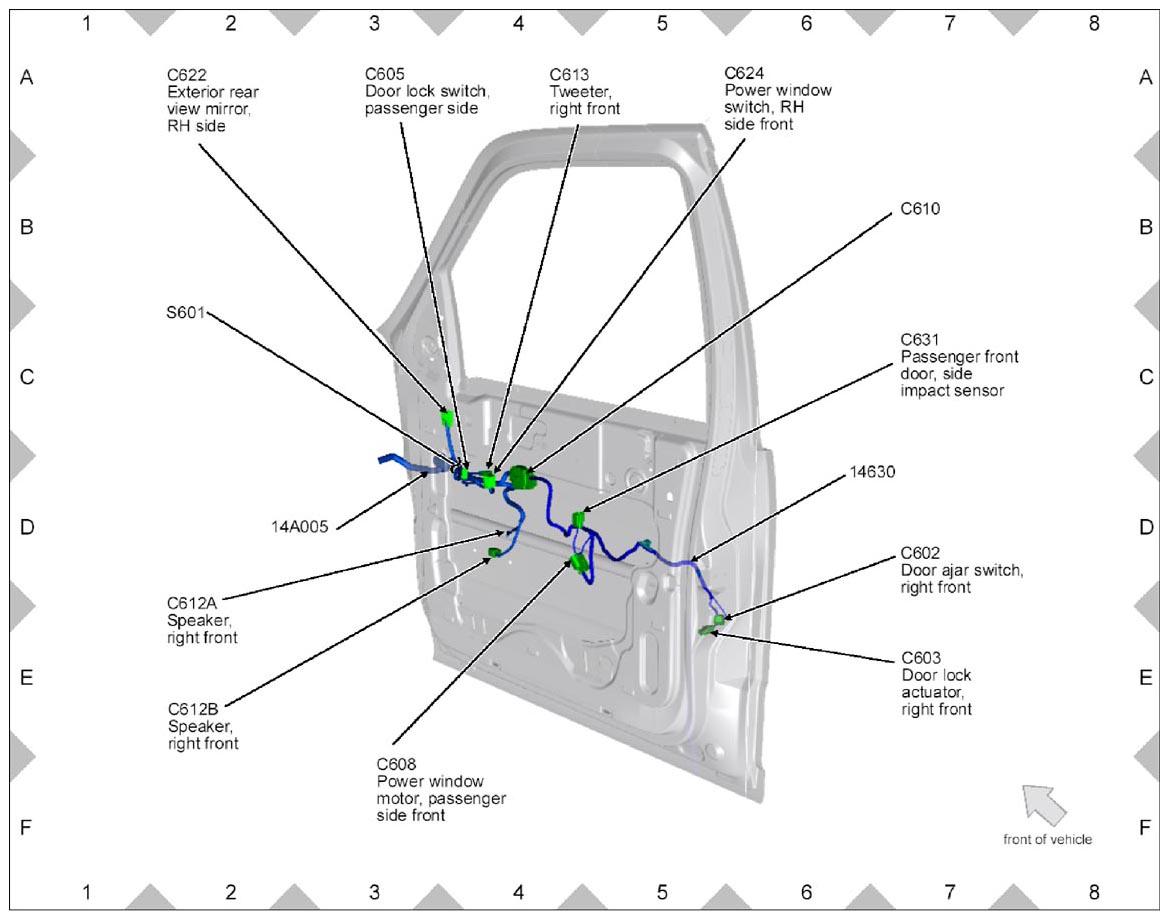

Fig 36: RH Front Door Wiring Harness Connectors Location (1 Of 2)

G09225073

Courtesy of FORD MOTOR CO.

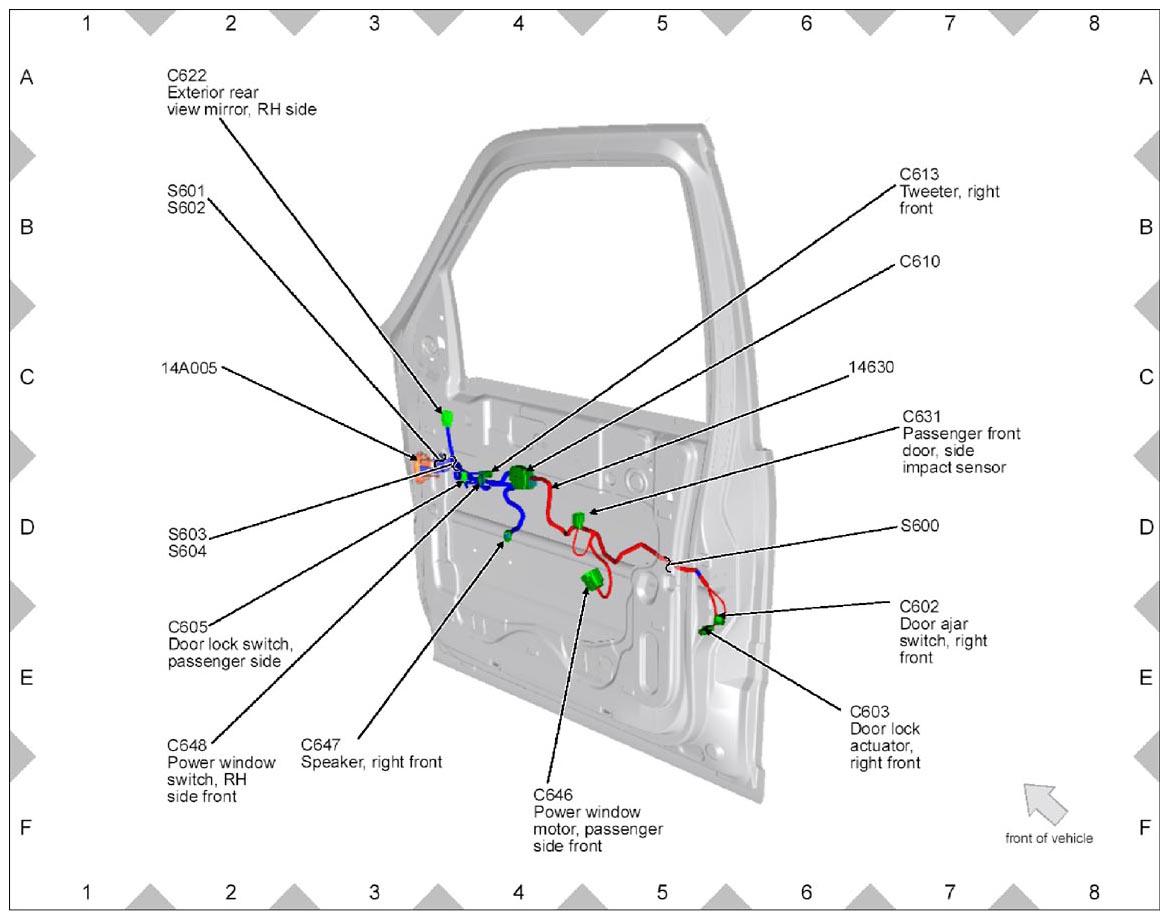

Fig 37: RH Front Door Wiring Harness Connectors Location (2 Of 2)

G09225075

Courtesy of FORD MOTOR CO.

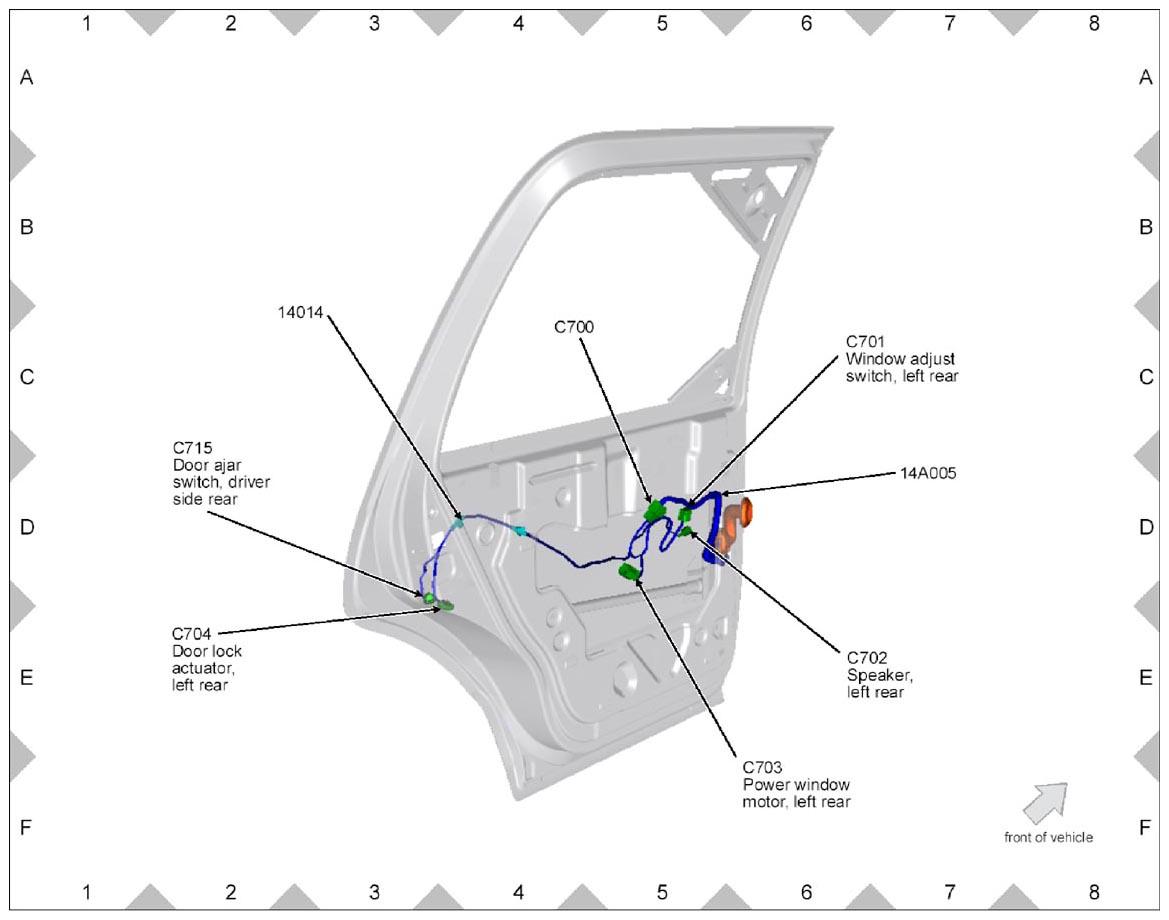

Fig 38: LH Rear Door Wiring Harness Connectors Location

G09225076

Courtesy of FORD MOTOR CO.

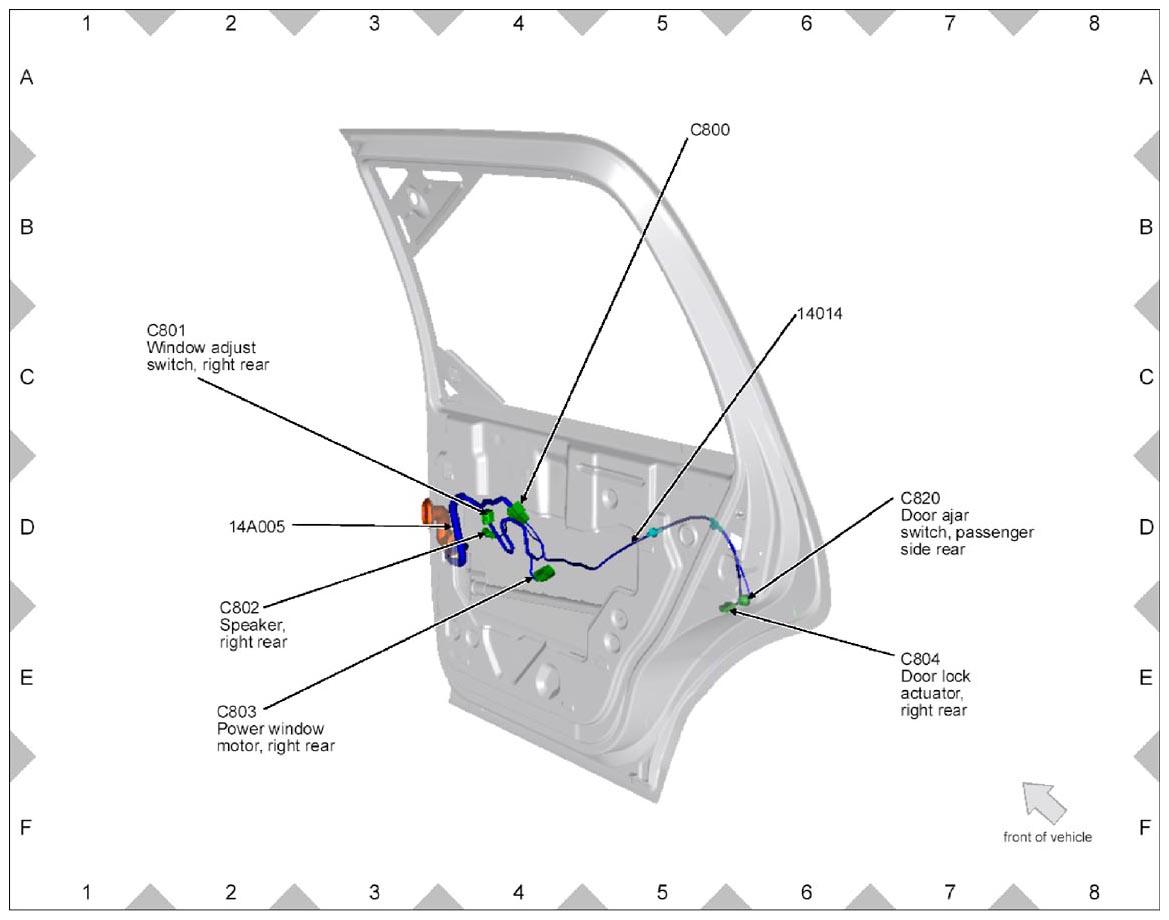

Fig 39: RH Rear Door Wiring Harness Connectors Location

G09225077

Courtesy of FORD MOTOR CO.

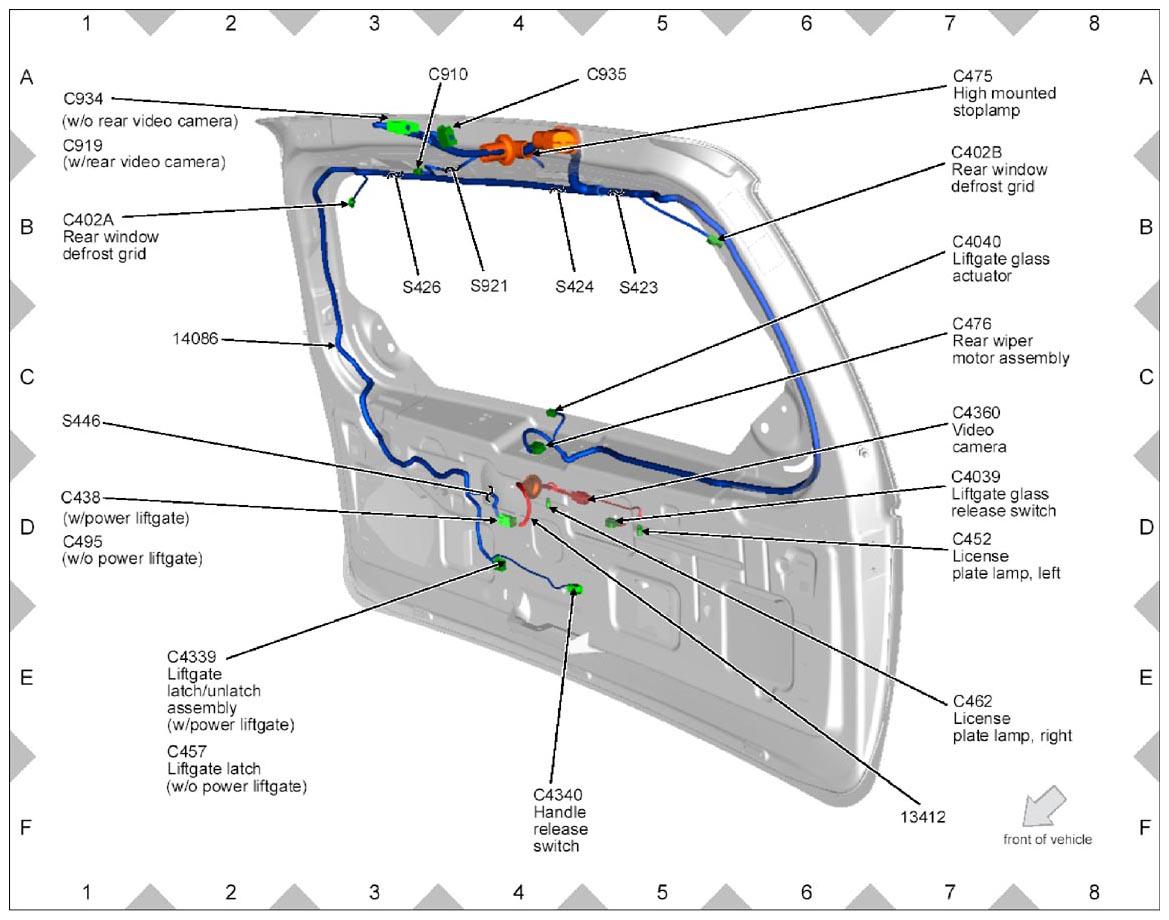

Fig 40: Liftgate Wiring Harness Connectors Location (1 Of 2)

G09225078

Courtesy of FORD MOTOR CO.

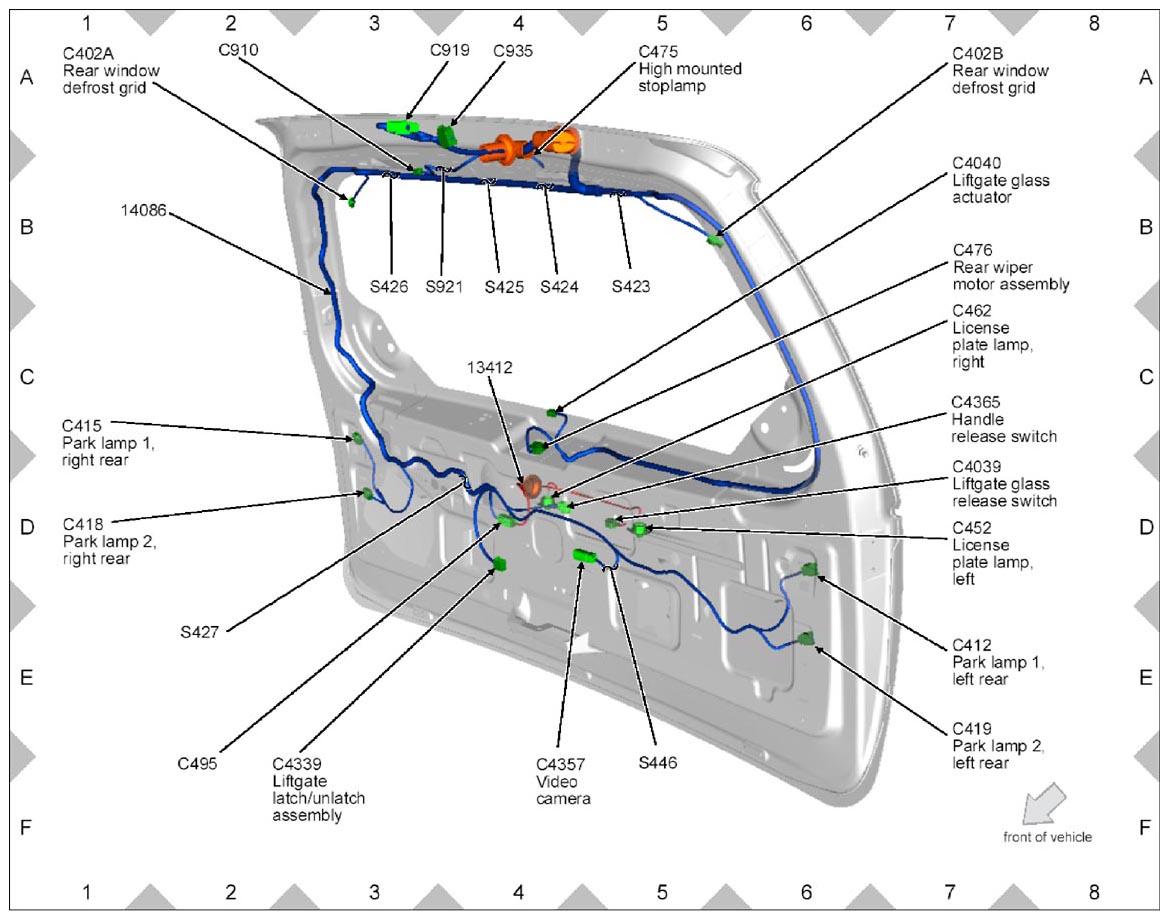

Fig 41: Liftgate Wiring Harness Connectors Location (2 Of 2)

G09225079

Courtesy of FORD MOTOR CO.

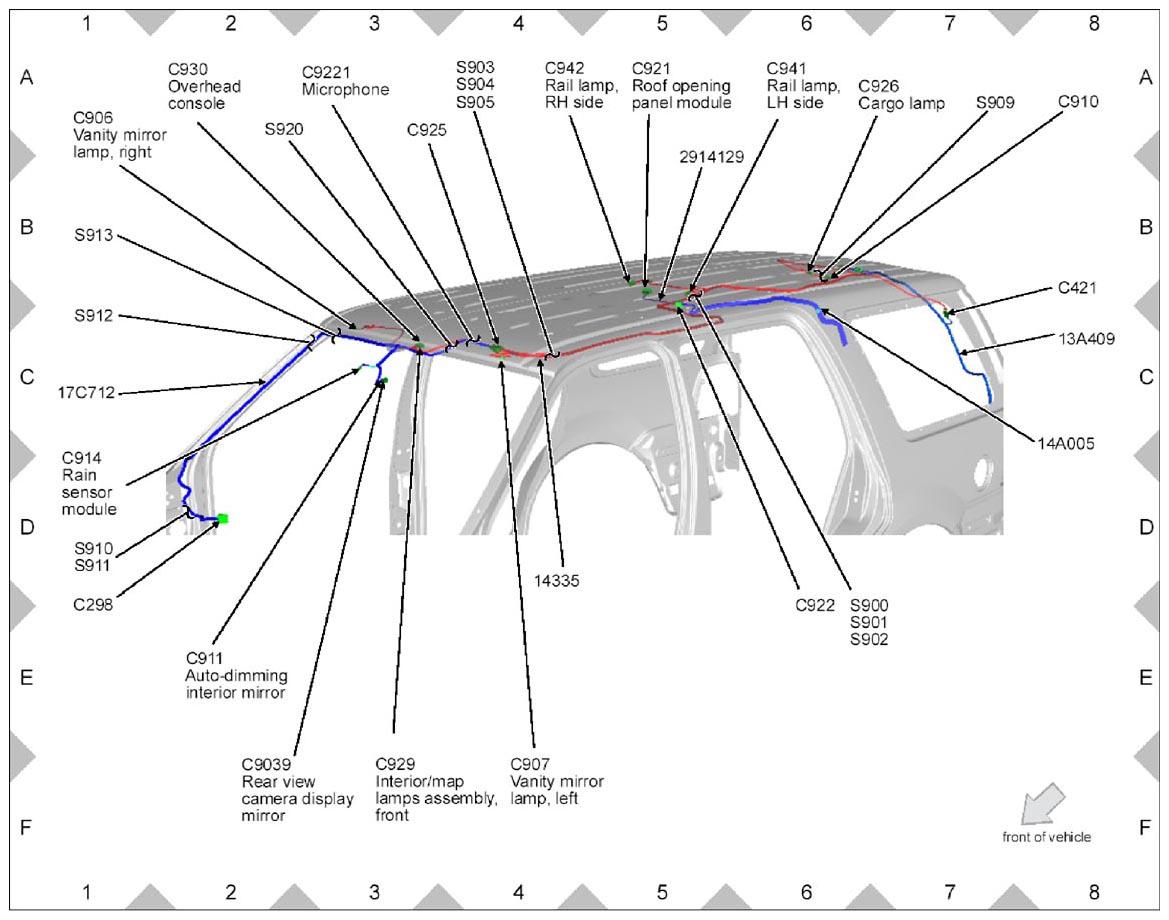

Fig 42: Roof Wiring Harness Connectors Location (1 Of 2)

G09225080

Courtesy of FORD MOTOR CO.

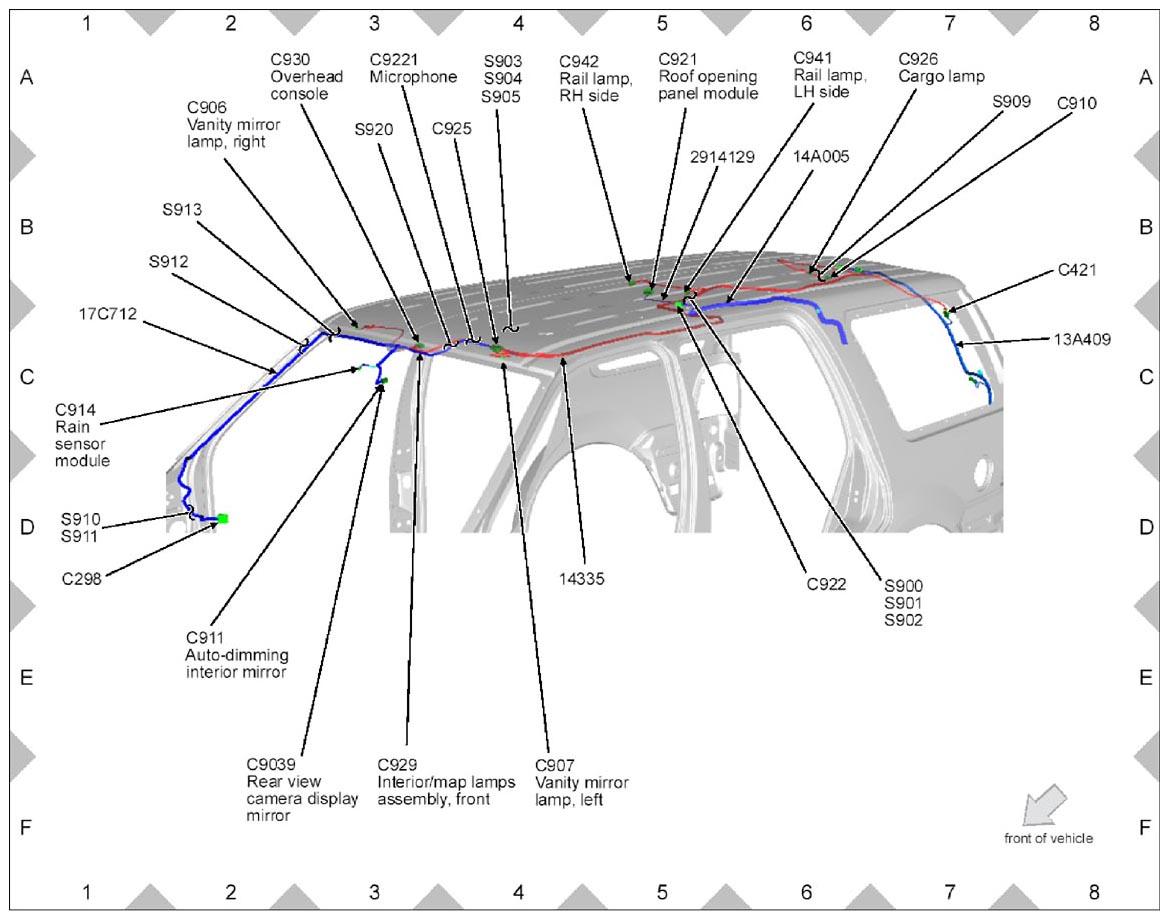

Fig 43: Roof Wiring Harness Connectors Location (2 Of 2)

G09225081

Courtesy of FORD MOTOR CO.

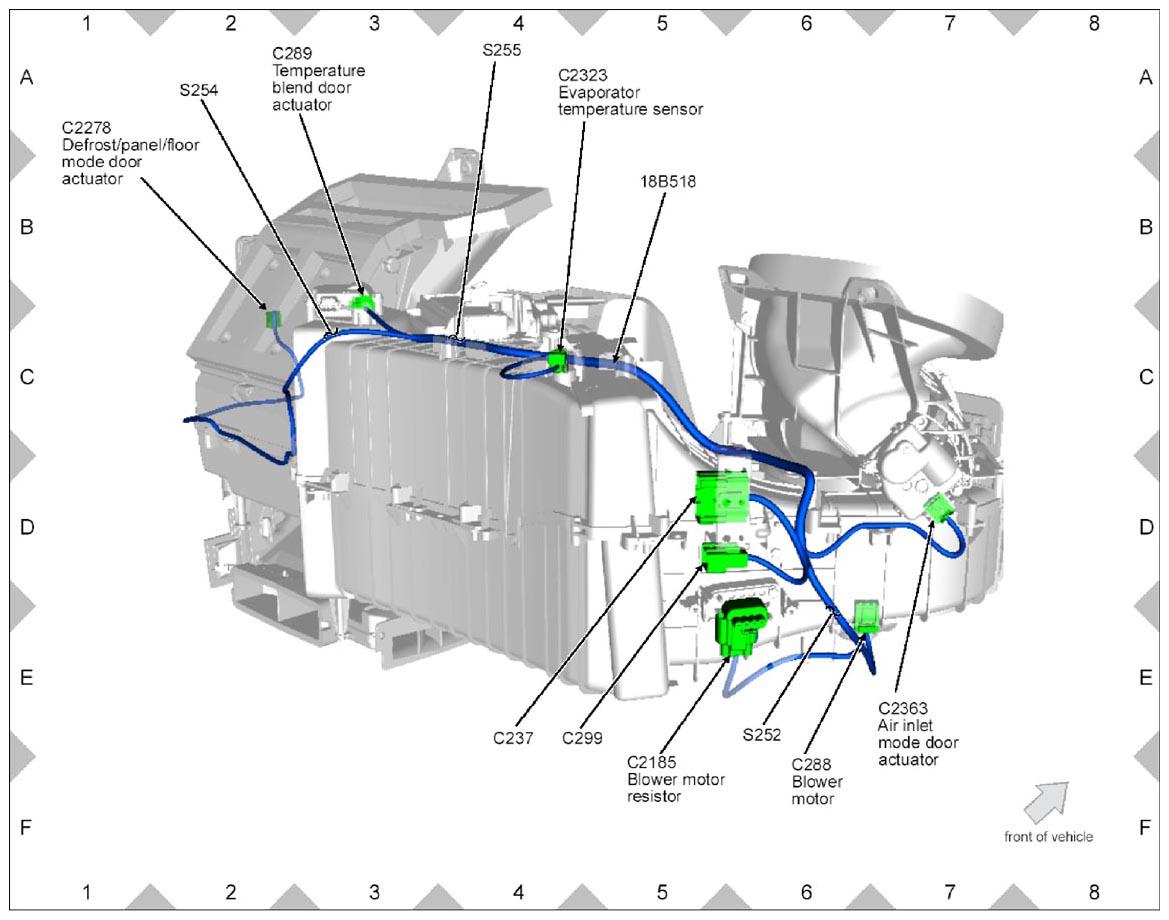

Fig 44: HVAC Wiring Harness Connectors Location (1 Of 2)

G09225082

Courtesy of FORD MOTOR CO.

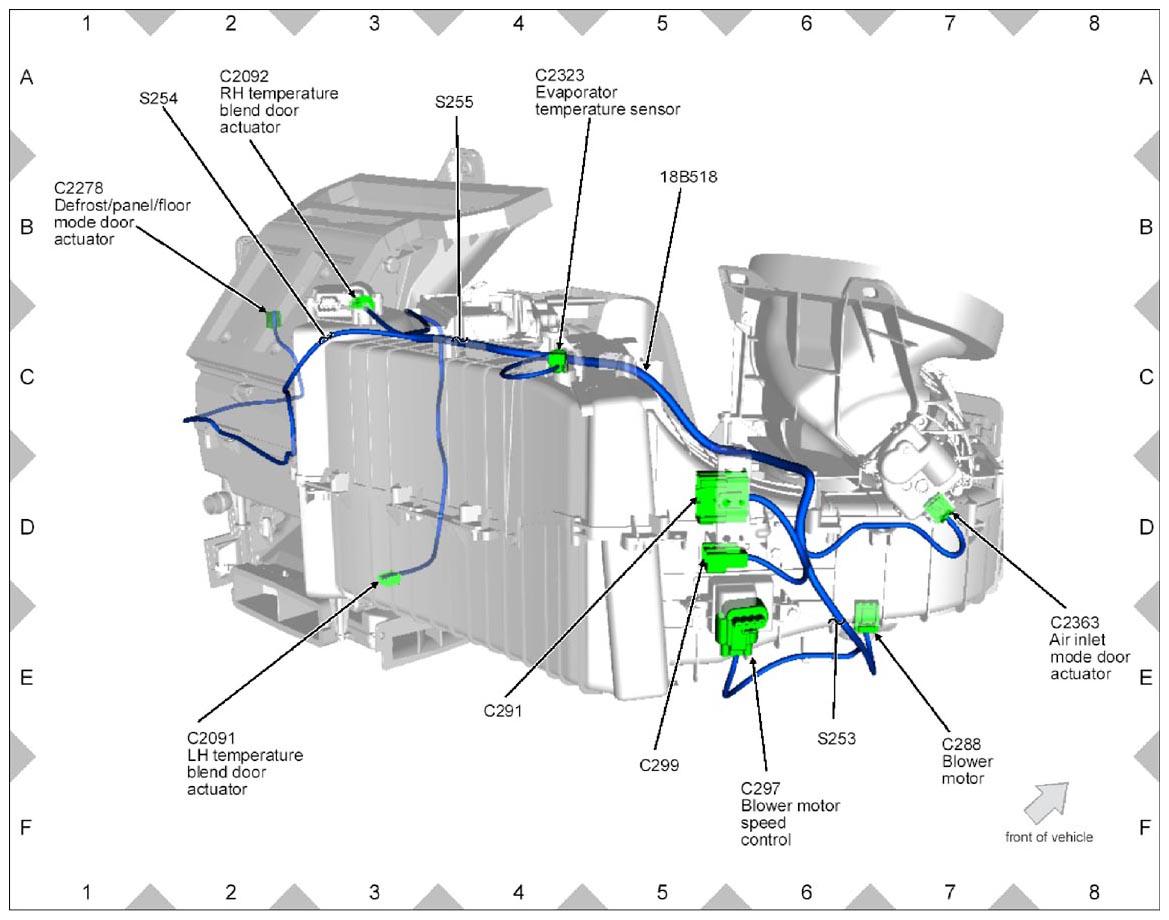

Fig 45: HVAC Wiring Harness Connectors Location (2 Of 2)

G09225083

Courtesy of FORD MOTOR CO.

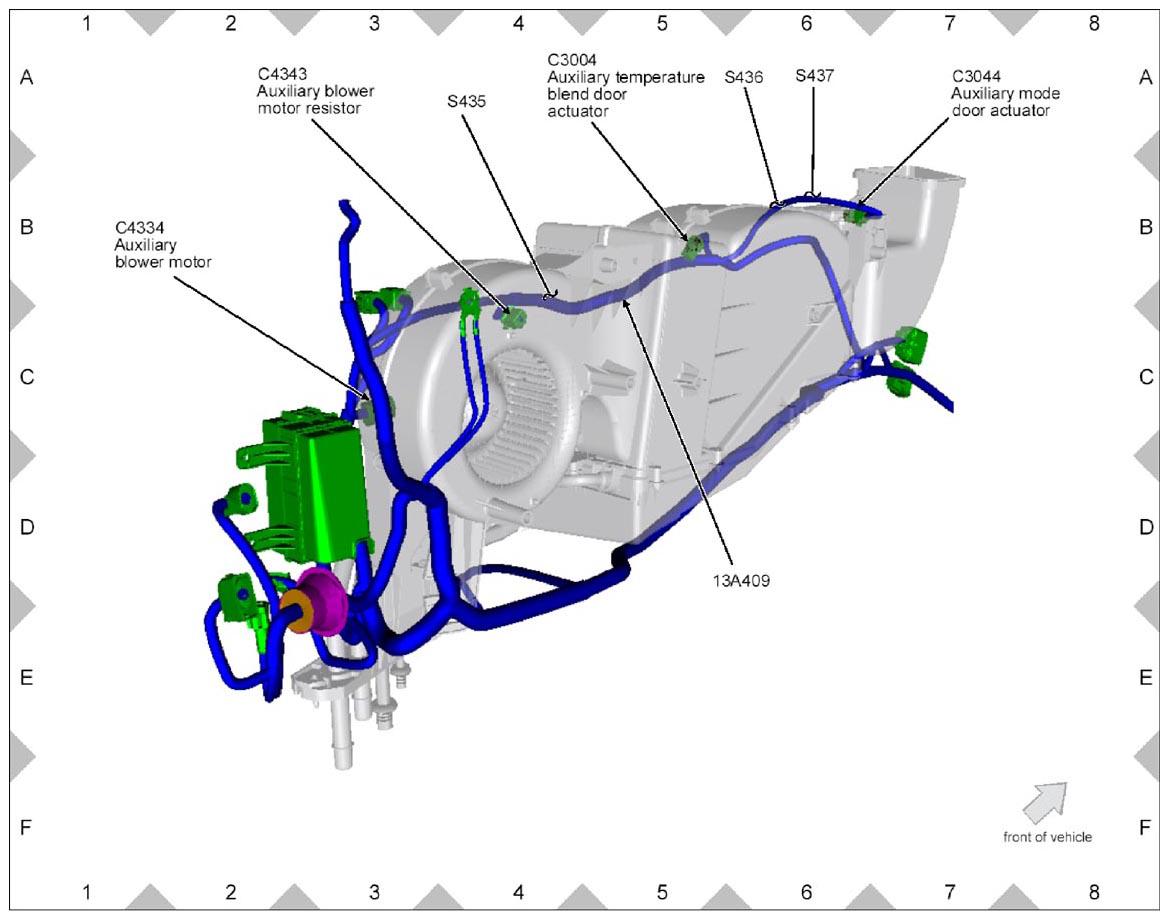

Fig 46: Auxiliary HVAC Wiring Harness Connectors Location (1 Of 2)

G09225084

Courtesy of FORD MOTOR CO.

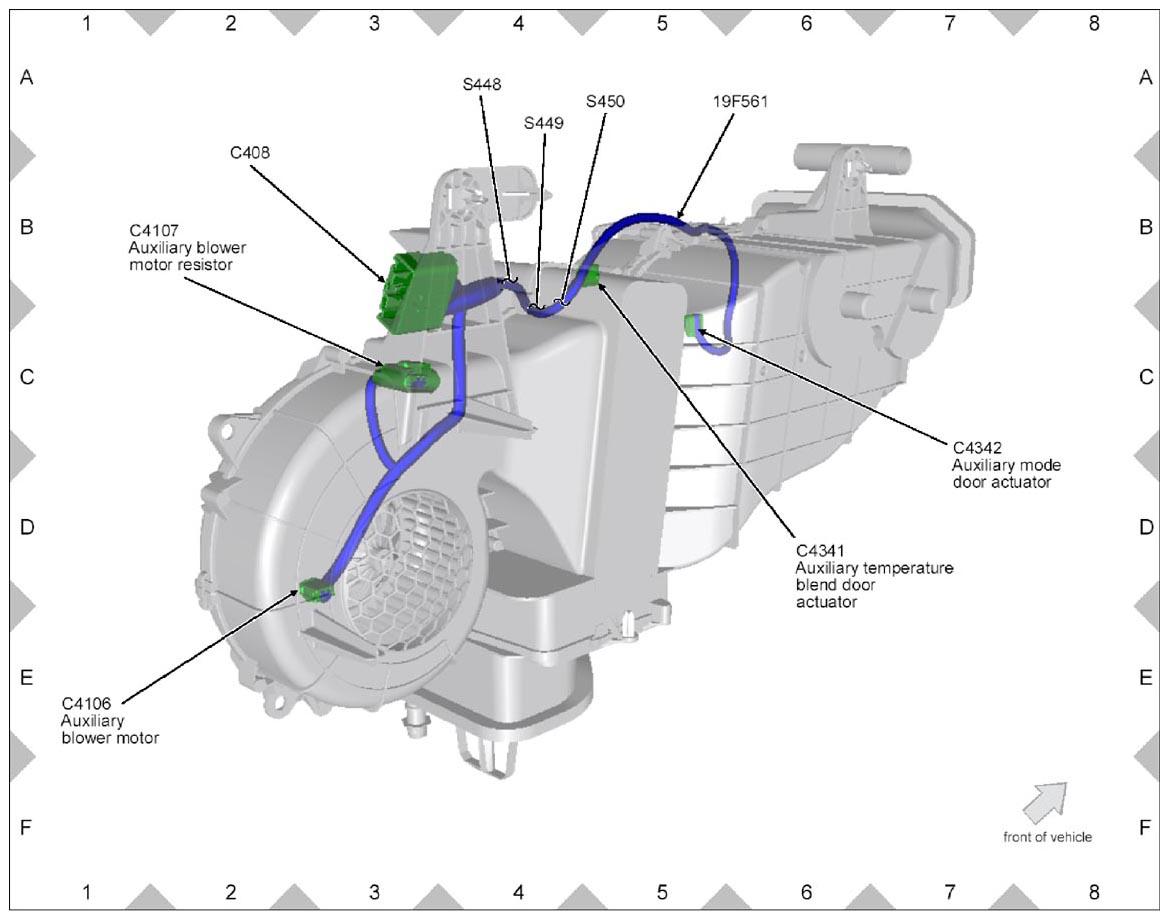

Fig 47: Auxiliary HVAC Wiring Harness Connectors Location (2 Of 2)

G09225085
