Trailer Brake Control (TBC) Module: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the instrument panel center finish panel. Refer to REMOVAL AND INSTALLATION .

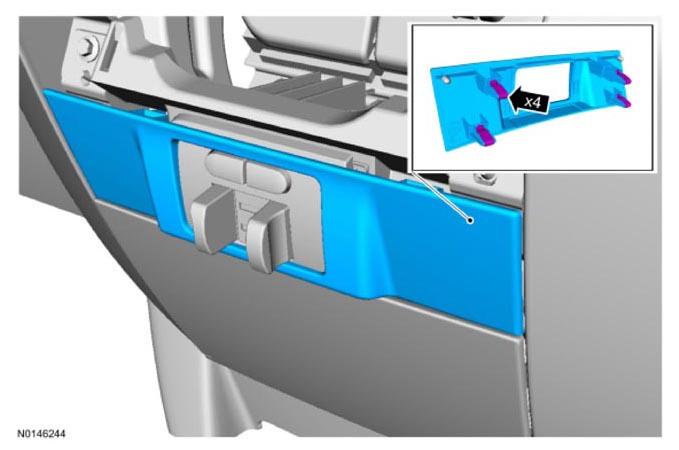

  2. G09379090
    • To install, tighten to 2.5 Nm (22 lb-in).

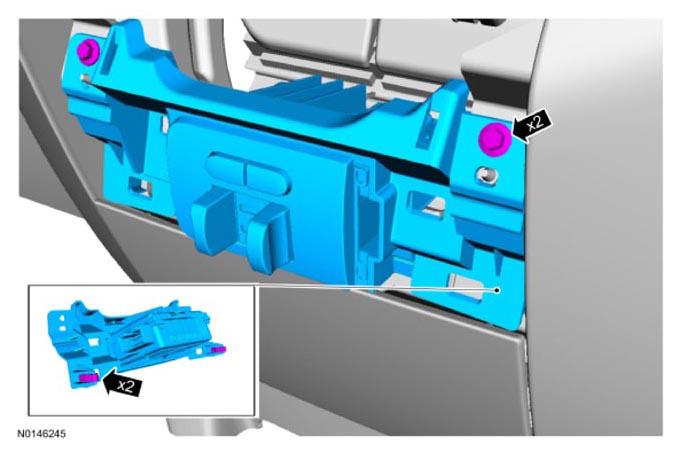

      G09379091

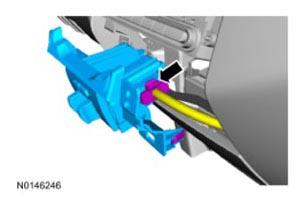

  4. G09379092
  5. G09379093
