Audio System/Navigation: Notes

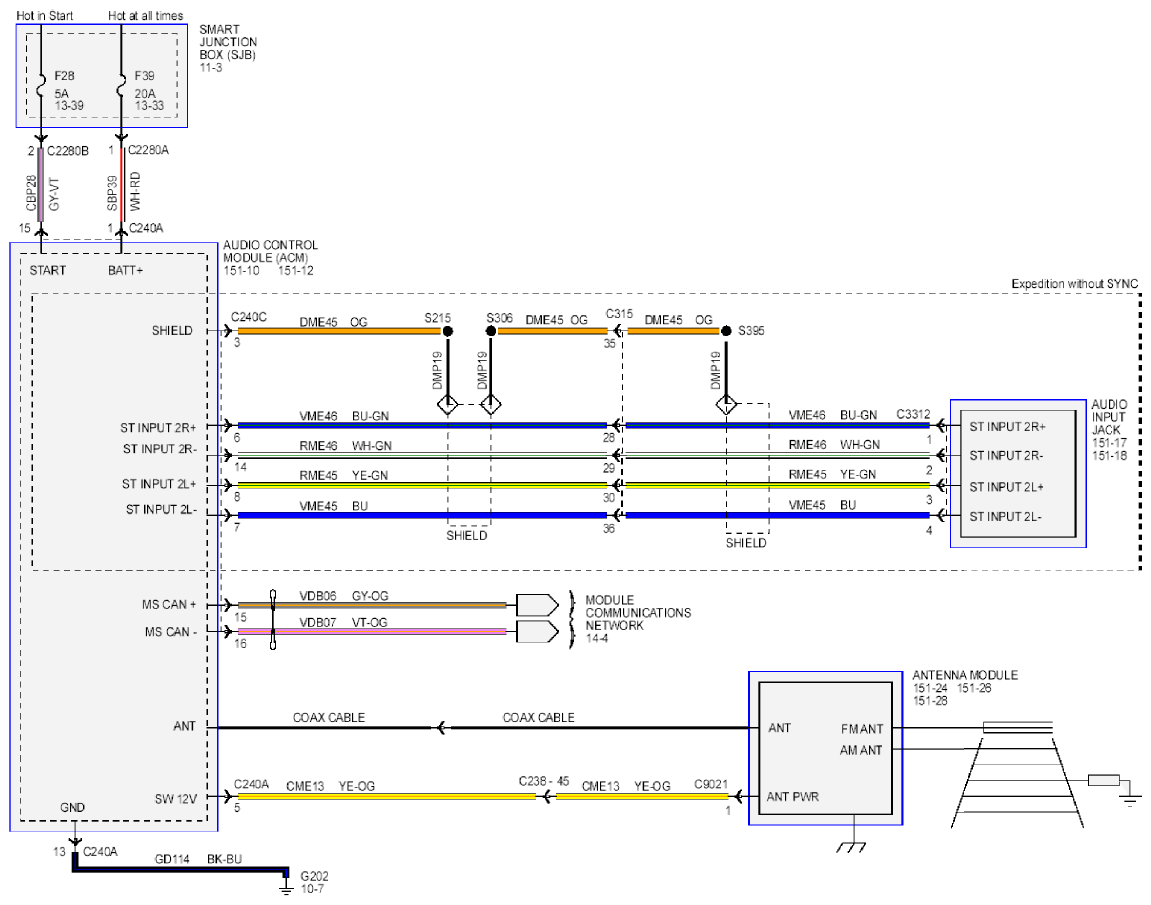

Fig 1: Audio System Navigation - Wiring Diagram (1 Of 2)

G09224459

Courtesy of FORD MOTOR CO.

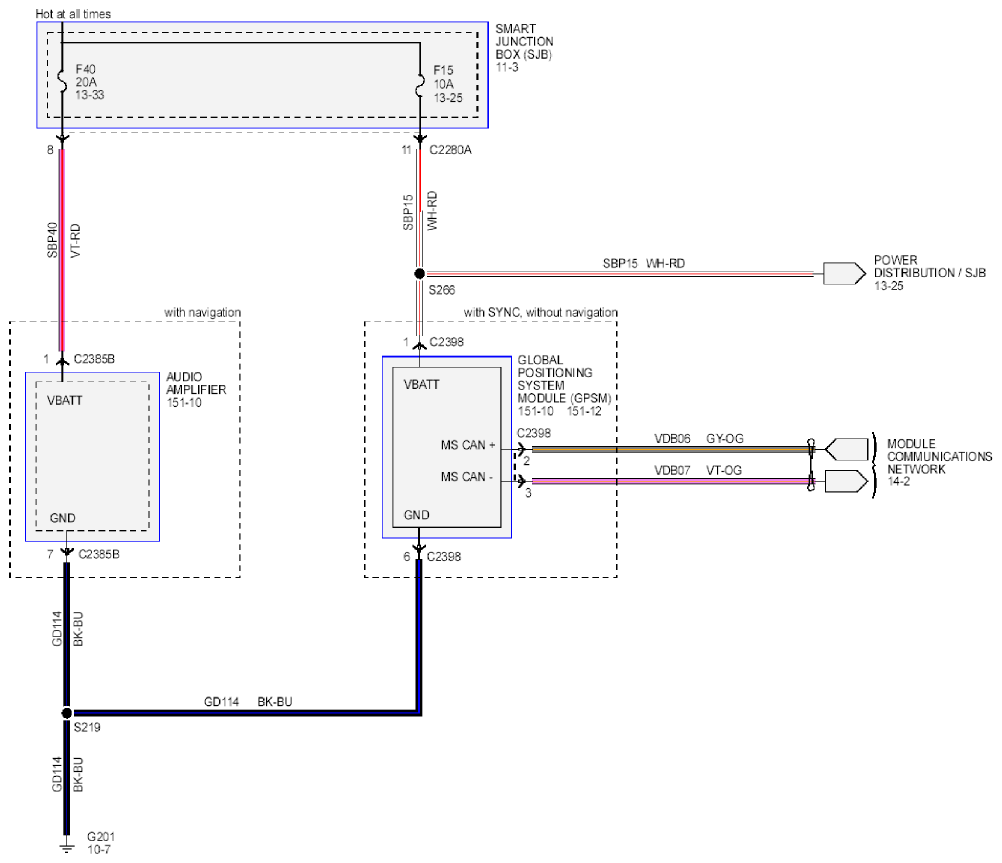

Fig 2: Audio System Navigation - Wiring Diagram (2 Of 2)

G09224470

Courtesy of FORD MOTOR CO.
