Steering Gear Turn Tubes: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

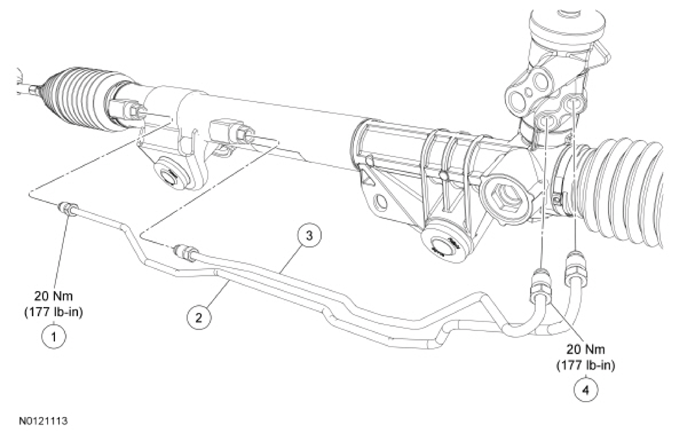

Fig 1: Exploded View Of Steering Gear Turn Tubes With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Steering gear (left) turn tube fitting (2 required) (part of 3A714)
2	3A714	Steering gear (left) turn tube
3	3A717	Steering gear (right) turn tube
4	-	Steering gear (right) turn tube fitting (2 required) (part of 3A717)
