Power Steering Pump: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

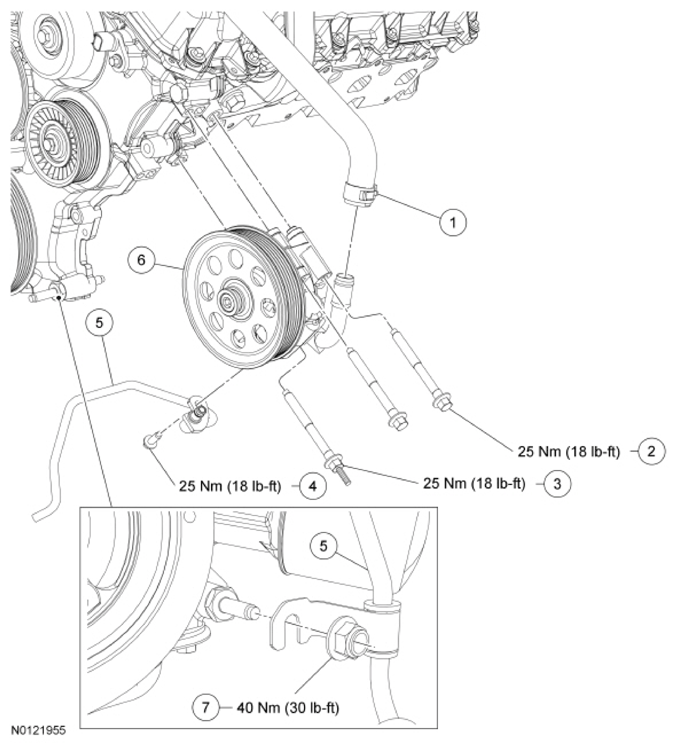

Fig 1: Exploded View Of Power Steering Pump With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3691	Supply hose
2	W715068	Power steering pump bolt (2 required)
3	W715069	Power steering pump stud bolt
4	W714824	Pressure line clamp plate-to-pump bolt
5	3A719	Pressure line
6	3A674	Power steering pump and pulley assembly
7	W520113	Pressure line bracket-to-engine nut (if equipped)
