Jacking Points - Rear: Notes

Fig 1: Caution For Lifting Vehicle From Rear
G09377799Courtesy of FORD MOTOR CO.
NOTE: Do not use the differential housing as a lift point. Leaks or damage to the rear axle cover and adjoining differential housing surface may occur if a floor jack or any lifting device is allowed to contact the cover at any point where the cover joins the housing.

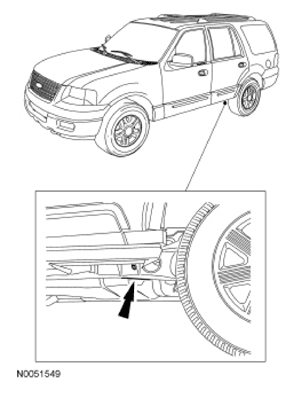

Fig 2: Locating Jacking Points - Rear
G09377800Courtesy of FORD MOTOR CO.

Disable the air suspension system. Refer to VEHICLE DYNAMIC SUSPENSION .

The rear jacking point is indicated by an arrow cutout in the frame, located in front of the rear tire and wheel.

After the vehicle has been lowered, enable the air suspension system. Refer to VEHICLE DYNAMIC SUSPENSION .
