Steering Column View 1 of 2

NOTE: Power adjustable steering column shown in illustration, manual adjustable steering column similar.

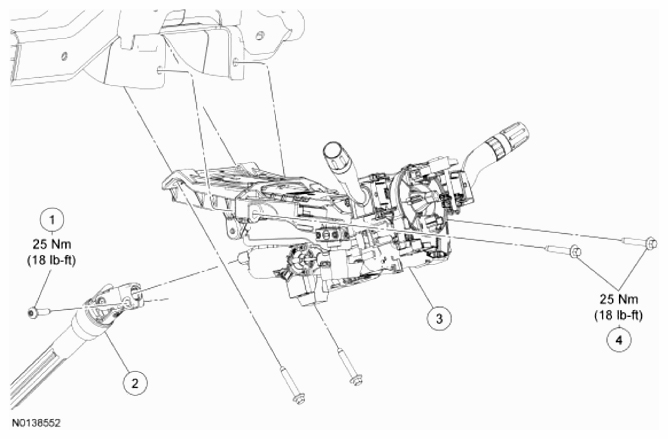

Fig 1: Steering Column Replacement Components With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W714878	Steering column shaft-to-steering column bolt (power column only)
2	3B676	Steering column shaft
3	3C529	Steering column
4	W712833	Steering column bolts (4 required)
