Window Control Switch: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: MKX shown in illustration, Edge similar.

NOTE: LH front shown in illustration, all others similar.

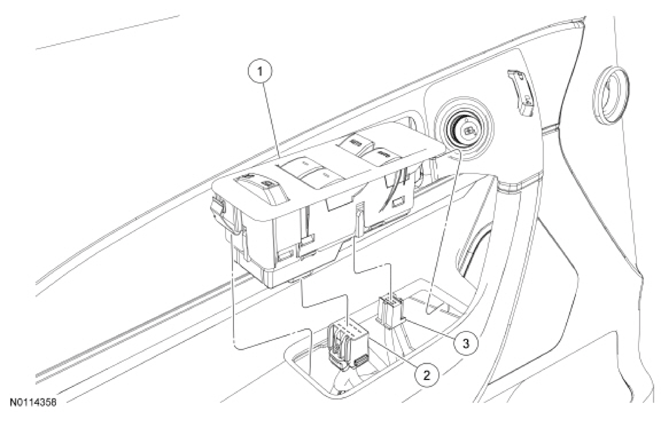

Fig 1: Identifying Front And Rear Window Control Switch Electrical Connector

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14527	Window control switch
2	-	Front window control switch electrical connector (part of 14631)
3	-	Rear window control switch electrical connector (part of 14631)
