Door Lock Control Switch - MKX: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: LH front shown in illustration, RH front similar.

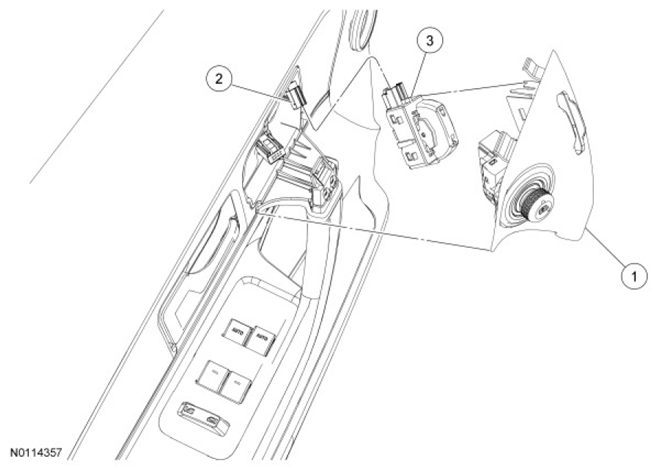

Fig 1: Identifying Door Lock Control Switch, Electrical Connector And Front Door Switch Panel (MKX)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14527 LH/14528 RH	Front door switch panel
2	-	Door lock control switch electrical connector (part of 14630 RH/14631 LH)
3	-	Door lock control switch (part of 14527 RH/14528 LH)
