Sony Sound

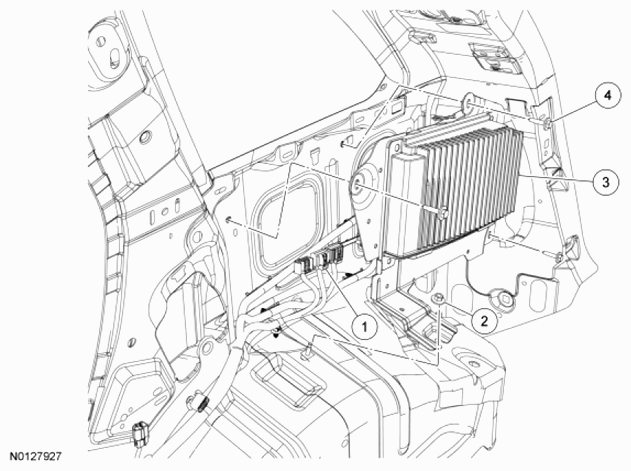

Fig 1: Identifying Audio Digital Signal Processing Module Components - Sony Sound
G07399252Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Audio DSP  module electrical connectors (part of 14A005)
2 N811309 Audio Digital Signal Processing (DSP) module nut (1 required)
3 18B849 Audio DSP  module
4 W505425-S Audio Digital Signal Processing (DSP) module screws (3 required)
