Remote Function Actuator (RFA) Module: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

SPECIAL TOOL DESCRIPTION

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

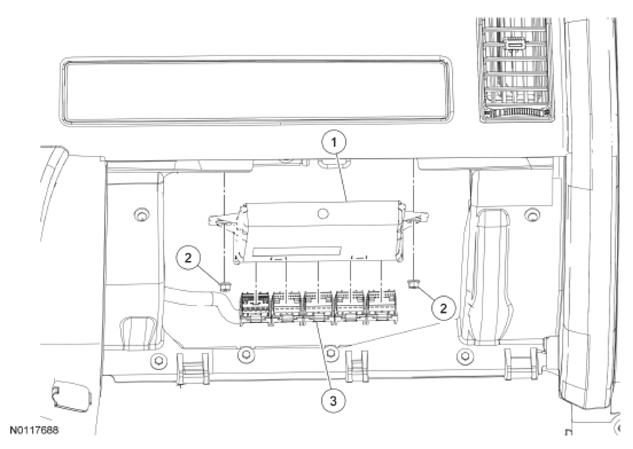

Fig 1: Identifying Remote Function Actuator Module, Electrical Connector And Nut

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	19G481	Remote Function Actuator (RFA) Module
2	N621903	RFA  module nut (2 required)
3	-	RFA  module electrical connectors (part of 14401)
