Adjustable pedal motor and bracket assembly

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

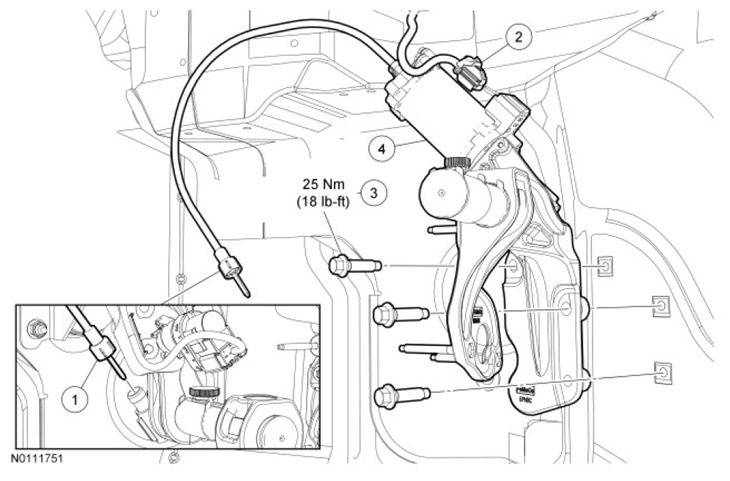

Fig 1: Adjustable Pedal Motor And Bracket Assembly With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Adjustable pedal motor-to-brake pedal drive cable (part of 9C803)
2	-	Adjustable pedal motor electrical connector (part of 14A005)
3	W611636	Adjustable pedal motor and bracket assembly bolt (3 required)
4	9C803	Adjustable pedal motor and bracket assembly

NOTE: To prevent setting DTCs, make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connectors.

NOTE: The brake pedal and the accelerator pedal must be indexed when installing a new cable or a new adjustable pedal motor and bracket assembly.

NOTE: Index the adjustable pedal assemblies. For additional information, refer to HYDRAULIC BRAKE ACTUATION .

Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
