OEM Ground Distribution: Grounds: G201

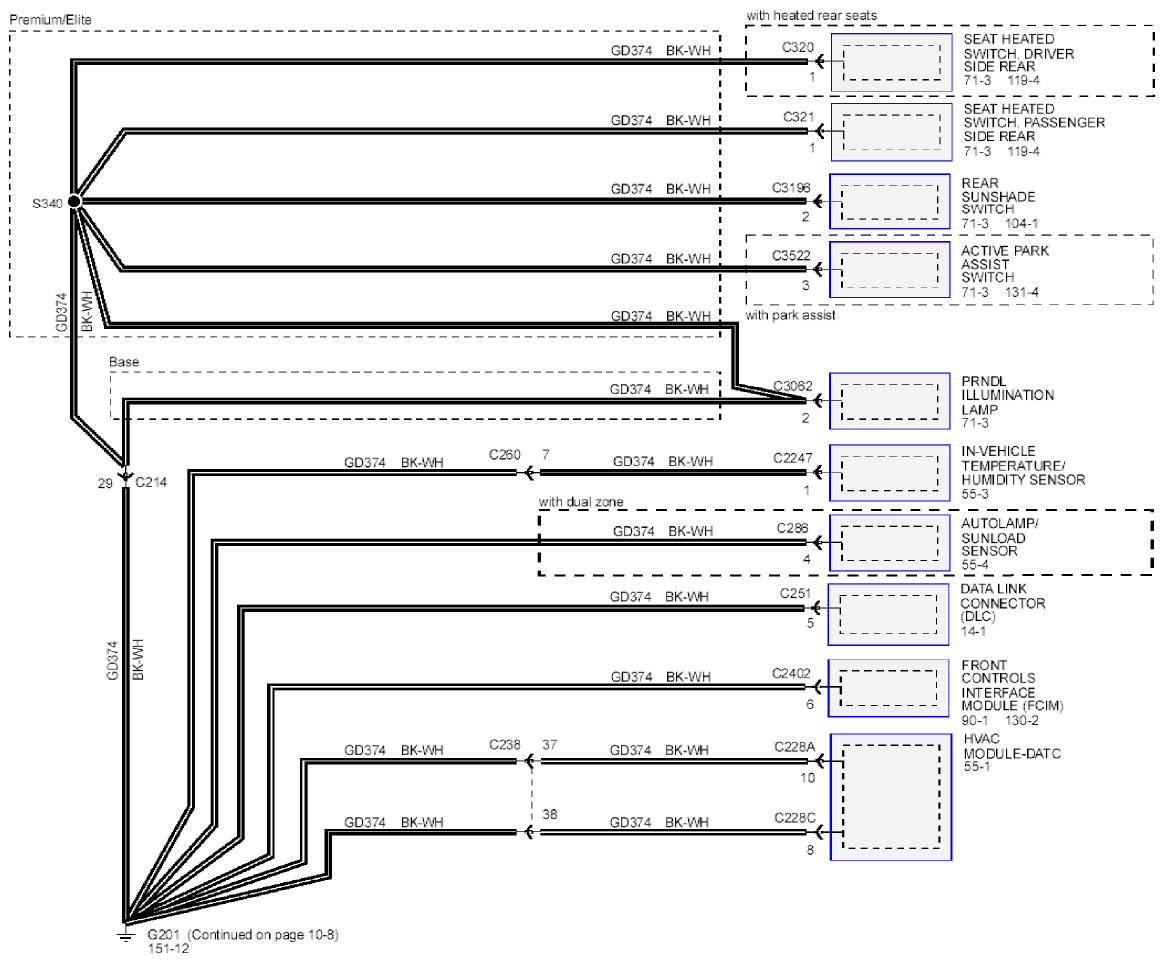

Fig 1: Grounds System - Wiring Diagram (G201; 1 Of 2)

G09279119

Courtesy of FORD MOTOR CO.

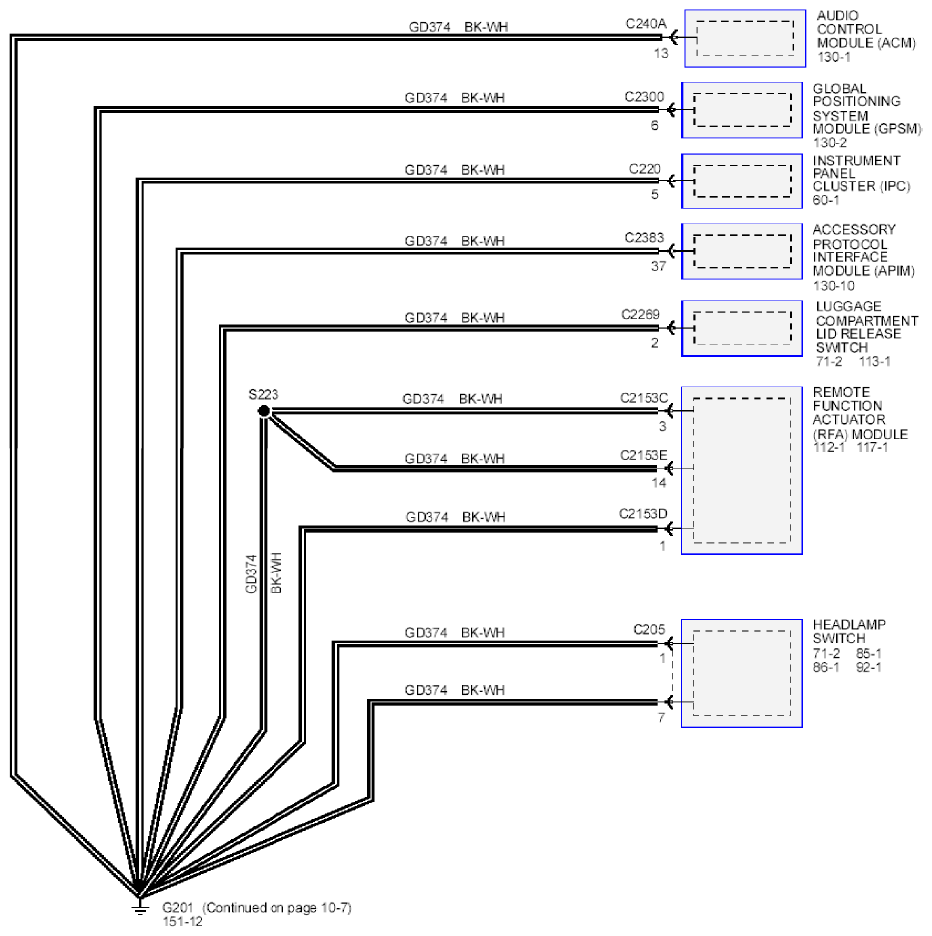

Fig 2: Grounds System - Wiring Diagram (G201; 2 Of 2)

G09279120

Courtesy of FORD MOTOR CO.
