Defective Insulation Stripping

  1. = Proper crimp
  2. = Insulation not removed
  3. = Wire strands missing
  4. = Intermittent signals through pierced insulation

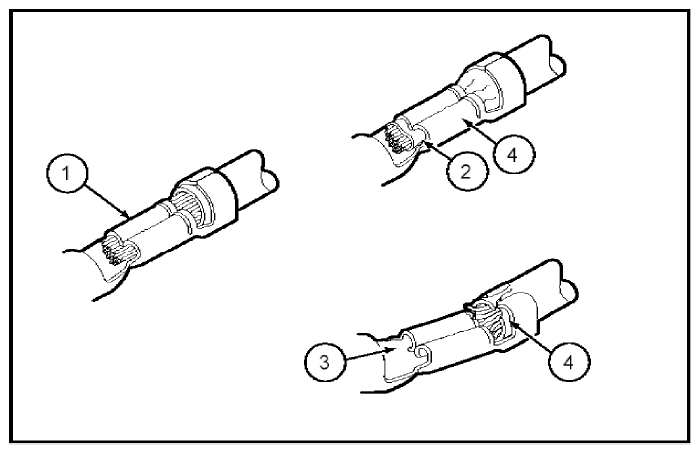

    Fig 1: Identifying Defective Insulation Stripping
    G09279097Courtesy of FORD MOTOR CO.
