Running Board Motor, Left Connector End View (C3185)

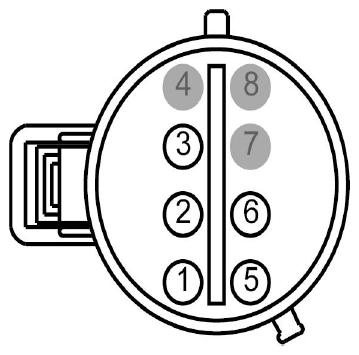

Fig 1: Identifying Running Board Motor, Left Connector (C3185)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPR42 (WH)	12	CTRL MOD. - POWER RUNNING BOARDS # DRIVER STOW
2	CPR47 (GY-BN)	20	CTRL MOD. - POWER RUNNING BOARDS # SENSOR
3	VPR43 (GY-BU)	20	SENSOR. - POWER RUNNING BOARDS # DRIVER POSITION
4	*	*	Not Used
5	CPR41 (BU-WH)	12	CTRL MOD. - POWER RUNNING BOARDS # DRIVER DEPLOY
6	RPR47 (BU-GN)	20	CTRL MOD. - POWER RUNNING BOARDS # SENSOR
7	*	*	Not Used
8	*	*	Not Used
