OEM Ground Distribution: Grounds: G403

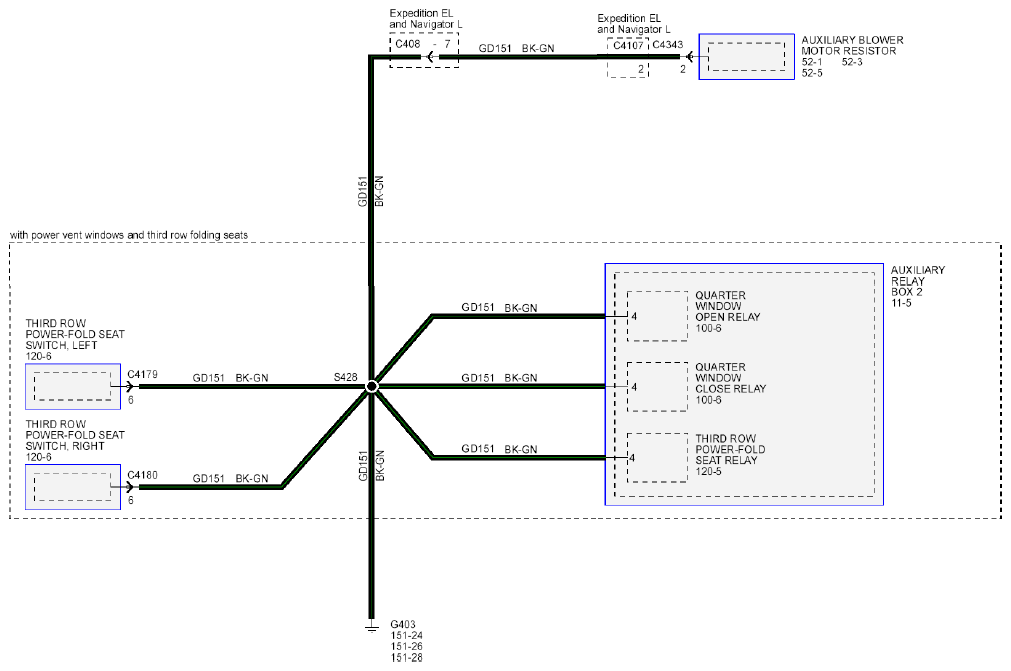

Fig 1: Grounds System Wiring Diagram - G403

G08734525

Courtesy of FORD MOTOR CO.
