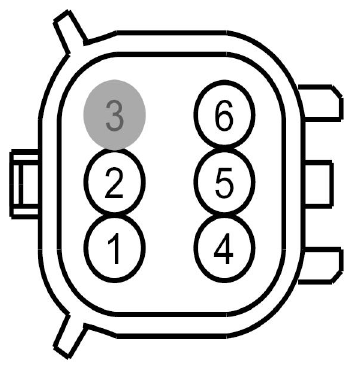

Video Camera Connector End View (C4357)

Fig 1: Identifying Video Camera Connector (C4357)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP35 (GN-BN)	18	FUSE - 35 OR CIRCUIT BREAKER	Navigator
2	DMP19 (BK)	20	CAMERA - VIDEO DISPLAY MIRROR	Navigator
3	*	*	Not Used
4	VMP19 (WH-GN)	20	CAMERA - VIDEO DISPLAY MIRROR +	Navigator
5	RMP19 (BN-VT)	20	CAMERA - VIDEO DISPLAY MIRROR -	Navigator
6	GD133 (BK)	16	GROUND - PILLAR A LEFT	Navigator
