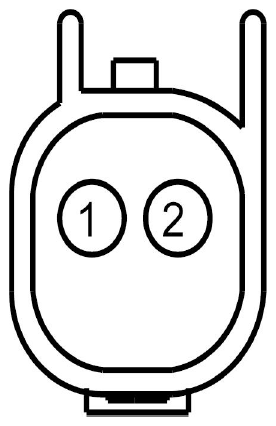

Tweeter, Right Front Connector End View (C613)

Fig 1: Identifying Tweeter, Right Front Connector (C613)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME11 (VT-OG)	16	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER	without THX
1	VME11 (VT-OG)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER	with THX
2	RME11 (YE-OG)	16	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER	without THX
2	RME11 (YE-OG)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER	with THX
