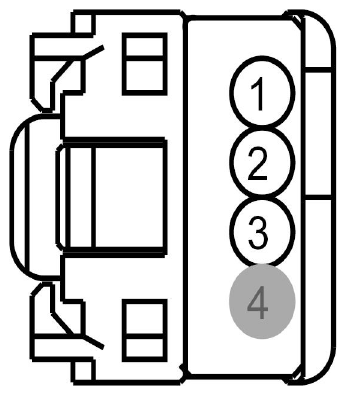

Steering Column Position Switch Connector End View (C2250)

Fig 1: Identifying Steering Column Position Switch Connector (C2250)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD133 (BK)	20	GROUND - PILLAR A LEFT
2	CPP14 (BN-WH)	20	SWITCH - STEERING COLUMN TILT FORWARD
3	CPP15 (YE-VT)	20	SWITCH - STEERING COLUMN TILT REARWARD
4	*	*	Not Used

Available Pigtail Kits

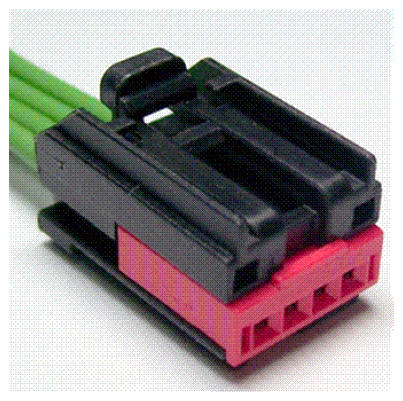

Pigtail Kit Part Number WPT-1055	Service Part Number: 3U2Z-14S411-KYB  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Liftgate Glass Switch - Deck Lid/Lift Gate Ajar Switch - Steering Column Tilt/Telescope

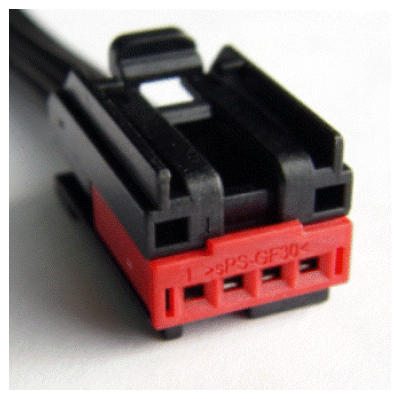

Pigtail Kit Part Number WPT-576	Service Part Number: 3U2Z-14S411-KYA  Gauge: 18  Pin material: Tin  Cavities: 4  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Liftgate Glass Switch - Deck Lid/Lift Gate Ajar Switch - Lift Gate Glass Ajar
