Rear Window Defrost Grid Connector End View (C402B)

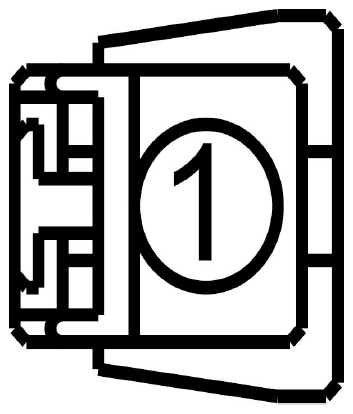

Fig 1: Identifying Rear Window Defrost Grid Connector (C402B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD150 (BK-WH)	12	GROUND - PILLAR D LEFT # 2ND STUD
