Passive Anti-Theft Transceiver Connector End View (C2007)

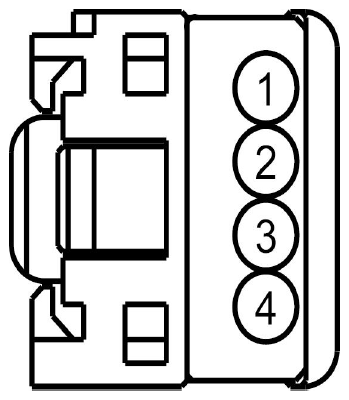

Fig 1: Identifying Passive Anti-Theft Transceiver Connector (C2007)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP36 (BU-BN)	20	FUSE - 36 OR CIRCUIT BREAKER
2	GD133 (BK)	20	GROUND - PILLAR A LEFT
3	VRT07 (VT-BN)	22	CTRL MOD. - POWERTRAIN # TRANSCEIVER TRANSMIT DATA (TX_OUT)
4	VPL56 (BU-GY)	20	RECEIVER - REMOTE RF

Available Pigtail Kits

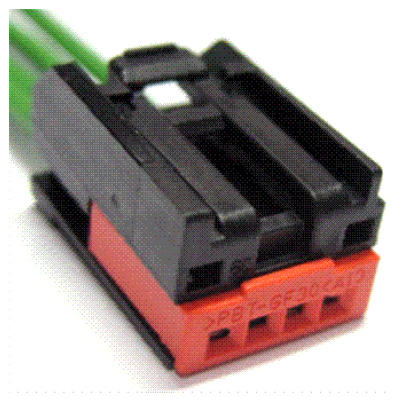

Pigtail Kit Part Number WPT-465	Service Part Number: 3U2Z-14S411-PRA  Gauge: 18  Pin material: Tin  Cavities: 4  Vehicle Uses Lamp - CHMSL (Center High Mount Stop Lamp) Module - Anti-theft Module - Power Moonroof Switch - 4x4 Control Switch - Clutch Pedal Position Switch - Deck Lid/Lift Gate Ajar Switch - Door Lock (LH) Switch - Lift Gate Glass Ajar Switch - Message Center Switch - Moon Roof/Sun Roof Transceiver - Passive Anti-Theft (PATS)

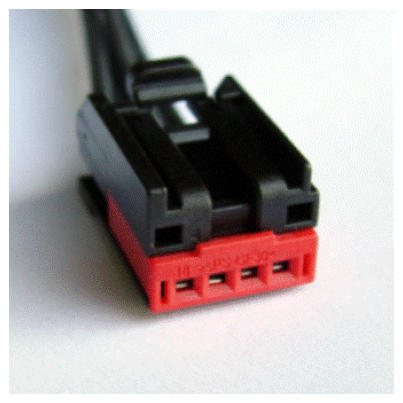

Pigtail Kit Part Number WPT-1139	Service Part Number: 3U2Z-14S411-PRC  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Connector - Audio Input Lamp - CHMSL (Center High Mount Stop Lamp) Module - Anti-theft Module - Power Moonroof Sensor - Steering Wheel Position Switch - 4x4 Control Switch - Clutch Pedal Position Switch - Deck Lid/Lift Gate Ajar Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Lift Gate Glass Ajar Switch - Message Center Switch - Moon Roof/Sun Roof Transceiver - Passive Anti-Theft (PATS)
