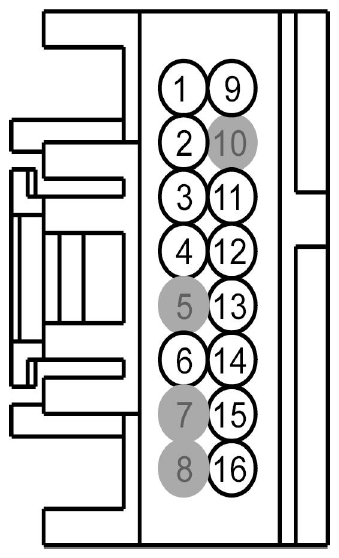

Parking Aid Module (PAM) Connector End View (C4226)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBP35 (YE-GY) | 20 | FUSE - 35 OR CIRCUIT BREAKER | |
| 2 | RMP09 (BU-GN) | 20 | CTRL MOD. - PARKING AID # SOUNDER REAR | |
| 3 | VDB06 (GY-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 4 | GD133 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT (6L2T) | |
| 5 | * | * | Not Used | |
| 6 | CMP09 (BN-BU) | 20 | CTRL MOD. - PARKING AID # SOUNDER REAR | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | LMP07 (BU-WH) | 20 | CTRL MOD. - PARKING AID # SENSORS REAR | |
| 10 | * | * | Not Used | |
| 11 | VDB07 (VT-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 12 | RMP07 (GN-WH) | 20 | CTRL MOD. - PARKING AID # SENSORS REAR | |
| 13 | VMP16 (YE-GY) | 20 | SENSOR - PARKING AID # REAR # (RIGHT INNER) | |
| 14 | VMP14 (WH-OG) | 20 | SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE) | |
| 15 | VMP15 (YE-GN) | 20 | SENSOR - PARKING AID # REAR # (LEFT OUTER) | |
| 16 | VMP17 (YE-OG) | 20 | SENSOR - PARKING AID # REAR # (RIGHT OUTER) |
| Available Pigtail Kits | |
|---|---|

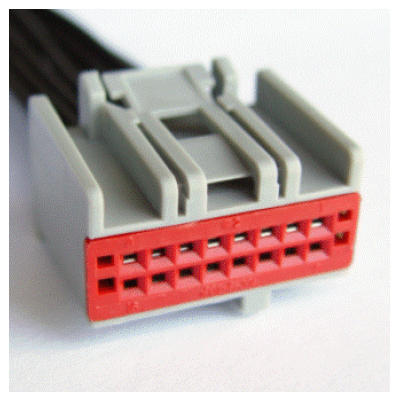

| Pigtail Kit Part Number WPT-221 | Service Part Number: 3U2Z-14S411-DPA Gauge: 18 Pin material: Tin Cavities: 16 Vehicle Uses
|

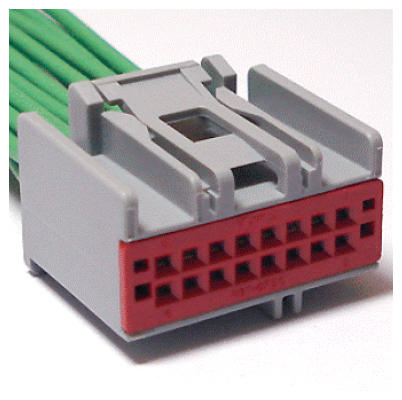

| Pigtail Kit Part Number WPT-968 | Service Part Number: 3U2Z-14S411-DPB Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses
|
