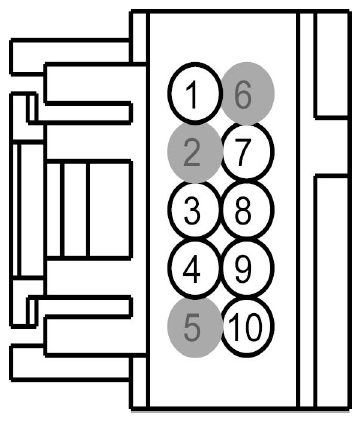

Parking Aid Module (PAM) Connector End View (C4014B)

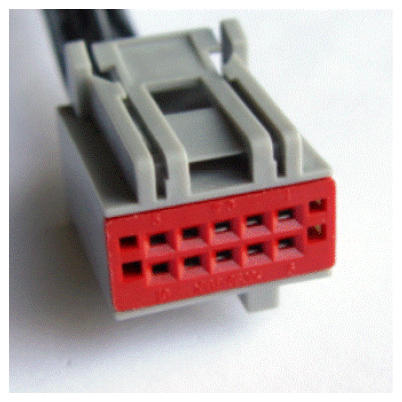

Fig 1: Identifying Parking Aid Module Connector (C4014B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LMP06 (VT-GY)	20	CTRL MOD. - PARKING AID # SENSORS FRONT
2	*	*	Not Used
3	VMP13 (BU-OG)	20	SENSOR - PARKING AID # FRONT # (RIGHT OUTER)
4	VMP12 (BU-GY)	20	SENSOR - PARKING AID # FRONT # (RIGHT INNER)
5	*	*	Not Used
6	*	*	Not Used
7	CMP08 (GY-BN)	20	CTRL MOD. - PARKING AID # SOUNDER FRONT
8	VMP11 (BU-GN)	20	SENSOR - PARKING AID # FRONT # (LEFT OUTER)
9	VMP10 (WH-BU)	20	SENSOR - PARKING AID # FRONT # (LEFT INNER)
10	RMP06 (YE-OG)	20	CTRL MOD. - PARKING AID # SENSORS FRONT

Available Pigtail Kits

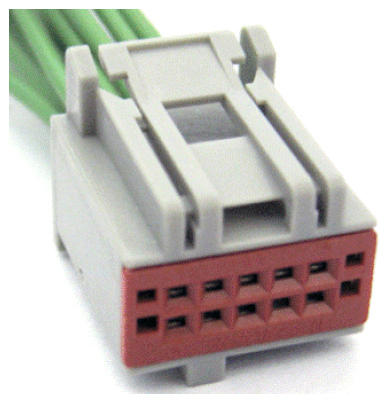

Pigtail Kit Part Number WPT-934	Service Part Number: 3U2Z-14S411-LSB  Gauge: 18  Pin material: Silver  Cavities: 10  Vehicle Uses Lamp - Headlamp Switch Module - Lighting Control Module - Reverse Park Aid (RPA) Module - Seat Memory Radio Switch - Headlamp Switch - Headlamp/Foglamp Switch - Multifunction Switch - Power Window - Driver Switch - Turn Signal
Pigtail Kit Part Number WPT-559	Service Part Number: 3U2Z-14S411-LSA  Gauge: 20  Pin material: Tin  Cavities: 9  Vehicle Uses Module - Reverse Park Aid (RPA) Module - Seat Memory Switch - Heated Seat - RH - Front Switch - Multifunction Switch - Power Window - Driver Switch - Seat (driver) Switch - Seat (passenger)
