Microphone Connector End View (C9221)

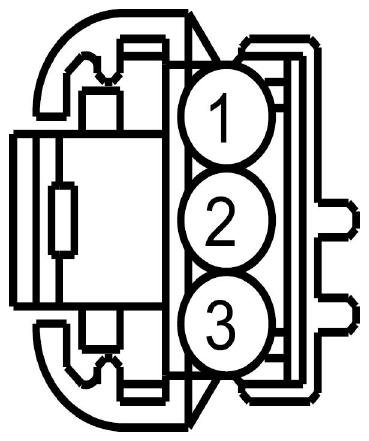

Fig 1: Identifying Microphone Connector (C9221)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	VMM23 (BN-VT)	20	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL
2	VMN07 (GY)	20	CTRL MOD. - AUDIO # NAVIGATION VOICE
3	DMN07 (BK)	20	CTRL MOD. - AUDIO # NAVIGATION VOICE

Available Pigtail Kits

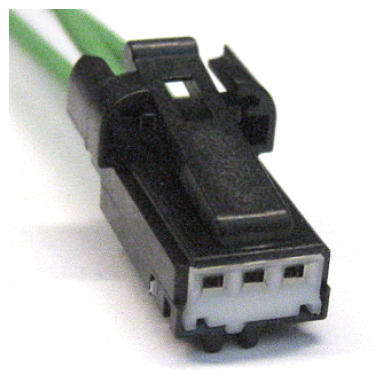

Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
