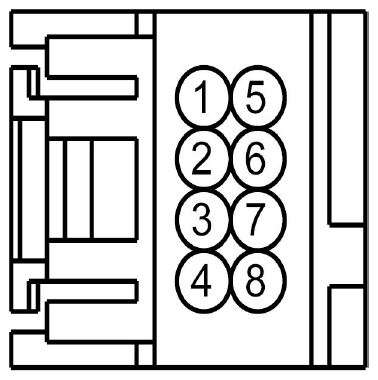

Master Window Adjust Switch Connector End View (C535A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPW31 (GN-WH) | 18 | SWITCH - POWER WINDOW FRONT PASSENGER # AUTOMATIC ONE TOUCH | |
| 2 | CPW19 (VT) | 18 | SWITCH - POWER WINDOW FRONT PASSENGER # DOWN | |
| 3 | CBP41 (BU) | 18 | FUSE - 41 OR CIRCUIT BREAKER | |
| 4 | CPW11 (BU-GY) | 18 | SWITCH - POWER WINDOW DRIVER # DRIVER UP | |
| 5 | CPW20 (WH-OG) | 18 | SWITCH - POWER WINDOW FRONT PASSENGER # UP | |
| 6 | VLN18 (BU-WH) | 18 | DIMMER - IP/SWITCH ILLUMINATION | |
| 7 | CPW10 (YE-VT) | 18 | SWITCH - POWER WINDOW DRIVER # DRIVER DOWN | |
| 8 | CPW29 (VT-GY) | 18 | SWITCH - POWER WINDOW DRIVER # DRIVER AUTOMATIC ONE TOUCH |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-945 | Service Part Number: 9U2Z-14S411-RA Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses
|
