Master Window Adjust Switch Connector End View (C504B)

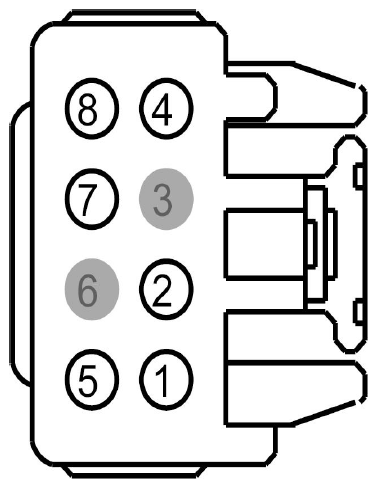

Fig 1: Identifying Master Window Adjust Switch Connector (C504B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW15 (YE)	14	SWITCH - POWER WINDOW DRIVER # REAR LEFT DOWN
2	CPW30 (GY-YE)	12	RELAY - POWER WINDOW
3	*	*	Not Used
4	CPW17 (BN-GN)	12	SWITCH - POWER WINDOW DRIVER # REAR RIGHT DOWN
5	CPW16 (BU-OG)	14	SWITCH - POWER WINDOW DRIVER # REAR LEFT UP
6	*	*	Not Used
7	GD143 (BK-VT)	12	GROUND - PILLAR B LEFT
8	CPW18 (GY-VT)	12	SWITCH - POWER WINDOW DRIVER # REAR RIGHT UP

Available Pigtail Kits

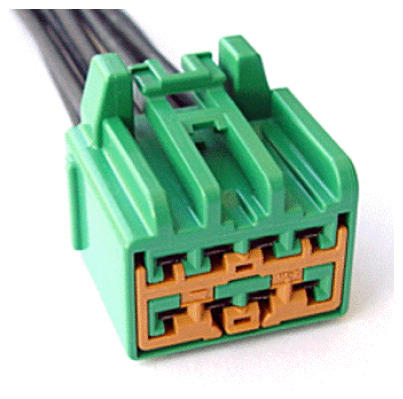

Pigtail Kit Part Number WPT-485	Service Part Number: 3U2Z-14S411-RAA  Gauge: 12  Pin material: Tin  Cavities: 8  Vehicle Uses Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Power Window - Driver Switch - Seat Lumbar
