MULTIFUNCTION Switch Connector End View (C202)

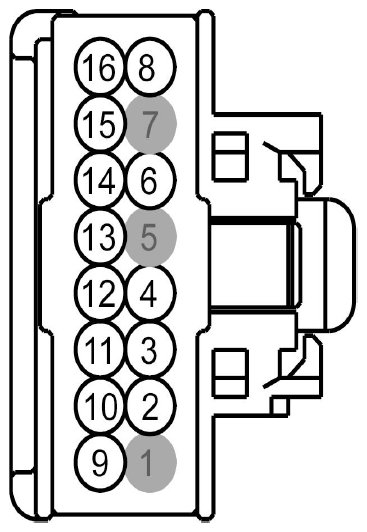

Fig 1: Identifying Multifunction Switch Connector (C202)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	CLS20 (BN-BU)	20	SWITCH - TURN LAMP LEFT
3	CLS24 (BN-WH)	20	SWITCH - TURN LAMP RIGHT
4	CLF27 (GN-BN)	22	SWITCH - FLASH TO PASS
5	*	*	Not Used
6	CLF02 (GY-BN)	20	SWITCH - BEAM HIGH LEFT
7	*	*	Not Used
8	GD138 (BK-WH)	20	GROUND - PILLAR A RIGHT
9	CRW08 (VT-OG)	20	SWITCH - FRONT WIPER HIGH (H)
10	CRW07 (GY-BN)	22	SWITCH - FRONT WASHER
11	CRW18 (VT-WH)	20	SWITCH - FRONT WIPER INTERVAL (B)
12	CRW17 (GN-VT)	22	SWITCH - FRONT WIPER INTERVAL (A)
13	CRW21 (YE-VT)	20	SWITCH - REAR WIPER INTERVAL (E)
14	CRW20 (GY-YE)	20	SWITCH - REAR WIPER INTERVAL (D)
15	GD138 (BK-WH)	20	GROUND - PILLAR A RIGHT
16	CRW19 (BU-OG)	20	SWITCH - FRONT WIPER INTERVAL (C)

Available Pigtail Kits

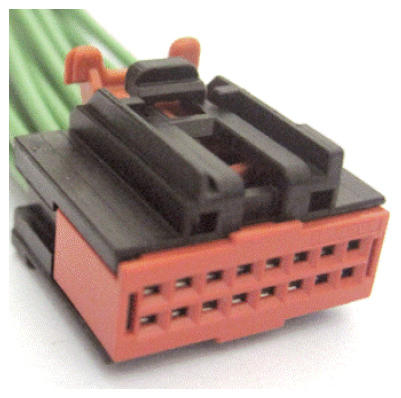

Pigtail Kit Part Number WPT-1152	Service Part Number: 3U2Z-14S411-AJD  Gauge: 18  Pin material: Silver  Cavities: 16  Vehicle Uses Mirror - Sideview Mirror - Vanity Overhead Console -Inline (Female) Switch - Multifunction

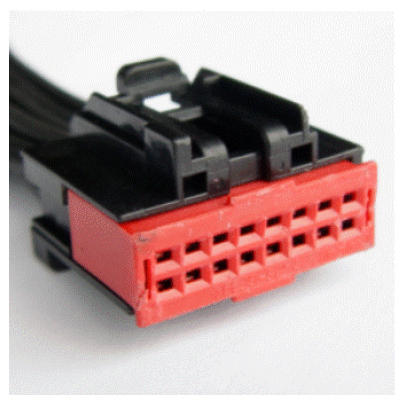

Pigtail Kit Part Number WPT-942	Service Part Number: 3U2Z-14S411-AJC  Gauge: 18  Pin material: Silver  Cavities: 16  Vehicle Uses Mirror - Sideview Mirror - Vanity Overhead Console -Inline (Female) Switch - Multifunction Switch - Multifunction (Turn)

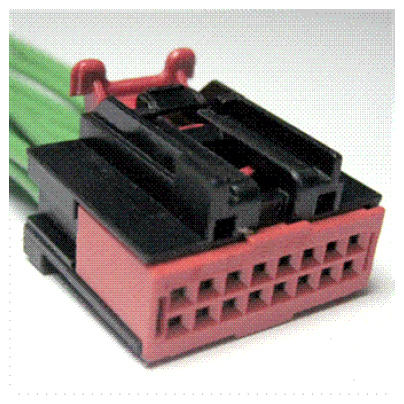

Pigtail Kit Part Number WPT-201	Service Part Number: 3U2Z-14S411-AJA  Gauge: 20  Pin material: Tin  Cavities: 16  Vehicle Uses Connector - Inline Mirror - Sideview Switch - Multifunction
