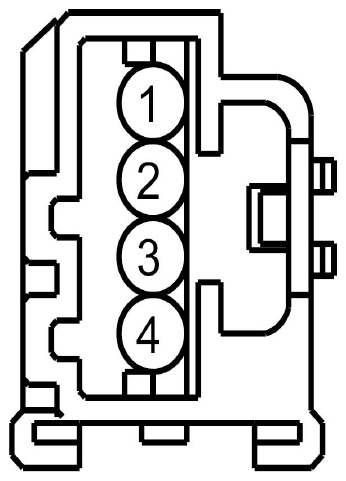

Liftgate Latch Connector End View (C457)

Fig 1: Identifying Liftgate Latch Connector (C457)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPL10 (GN-WH)	18	CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE
2	GD150 (BK-WH)	18	GROUND
3	CPR50 (BN-BU)	20	SWITCH - POWER LIFTGATE MODULE HOME POSITION
4	CPL58 (GY-OG)	20	SWITCH - LIFTGATE/DECKLID # GLASS AJAR

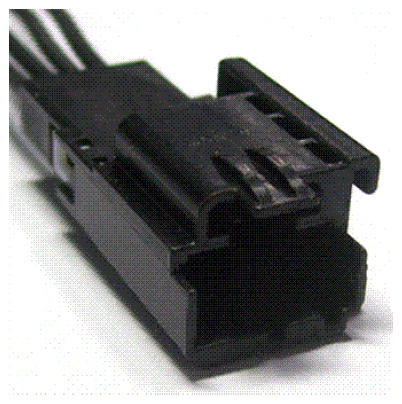

Available Pigtail Kits
Pigtail Kit Part Number WPT-1041	Service Part Number: 9U2Z-14S411-AJA  Gauge: 18  Pin material: Tin  Cavities: 4  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Switch - Deck Lid/Lift Gate Ajar
