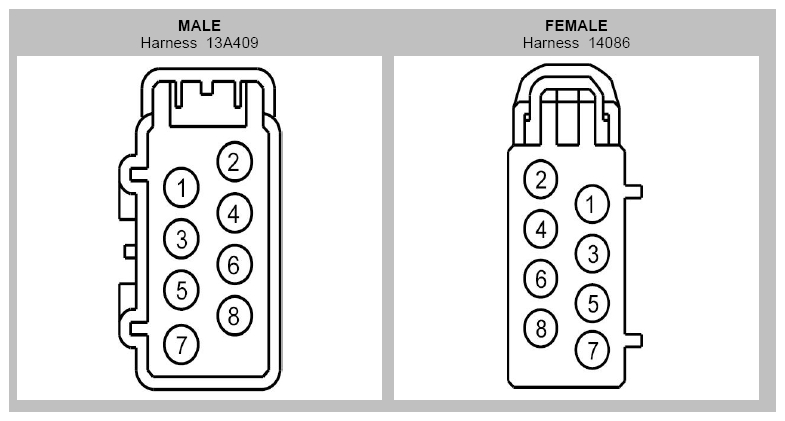

Inline Connector End View (C935)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | GD150 (BK-WH) | 12 | |
| 2 | GD149 (BK-GY) | 14 | |
| 3 | CRW12 (GY-OG) | 14 | |
| 4 | CPR50 (BN-BU) | 20 | with power liftgate |
| 5 | CLS30 (VT-WH) | 18 | |
| 6 | CRD06 (BN-YE) | 12 | |
| 7 | CPL59 (BN-BU) | 16 | 13A409 |
| 7 | CPL59 (BN-BU) | 18 | 14086 |
| 8 | SBP19 (BU-RD) | 12 |

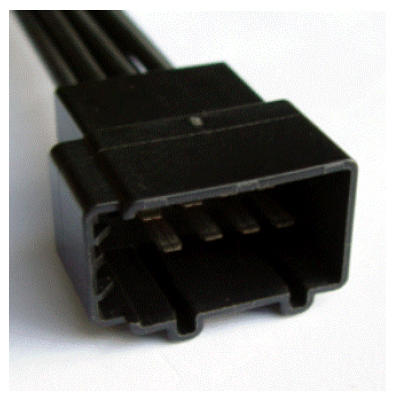

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-399 | Service Part Number: 3U2Z-14S411-DFA Gauge: 12 Pin material: Tin Cavities: 8 Vehicle Uses:
|
