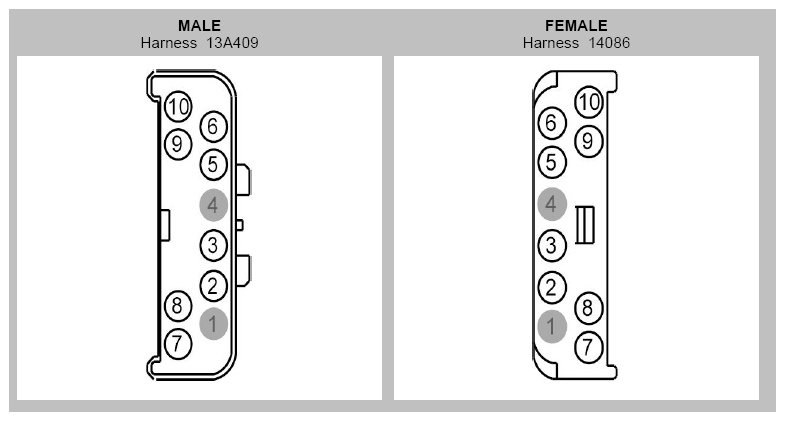

Inline Connector End View (C934)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | * | * | |
| 2 | CPL10 (GN-WH) | 16 | without power liftgate |
| 3 | CLS17 (YE-GY) | 18 | |
| 4 | * | * | |
| 5 | CPL58 (GY-OG) | 20 | without power liftgate |
| 6 | CBP43 (GY) | 18 | 14086 |
| 6 | CBP43 (GY) | 20 | 13A409 |
| 7 | CPL45 (BN) | 20 | |
| 8 | CRW21 (YE-VT) | 18 | 14086 |
| 8 | CRW21 (YE-VT) | 20 | 13A409 |
| 9 | CRW20 (GY-YE) | 18 | 14086 |
| 9 | CRW20 (GY-YE) | 20 | 13A409 |
| 10 | CPL60 (BN-YE) | 20 |

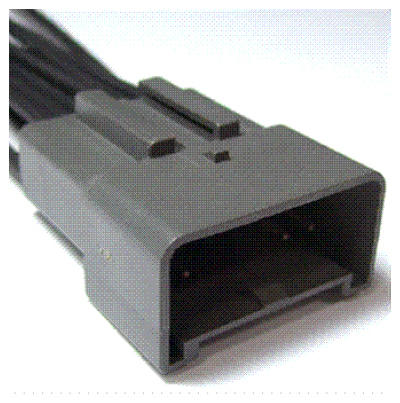

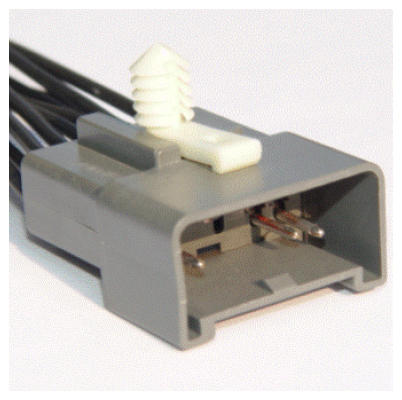

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-825 | Service Part Number: 4U2Z-14S411-EA Gauge: 16 Pin material: Tin Cavities: 10 Vehicle Uses:
|
| Pigtail Kit Part Number WPT-1141 | Service Part Number: 4U2Z-14S411-EB Gauge: 14 Pin material: Tin Cavities: 10 Vehicle Uses:
|
