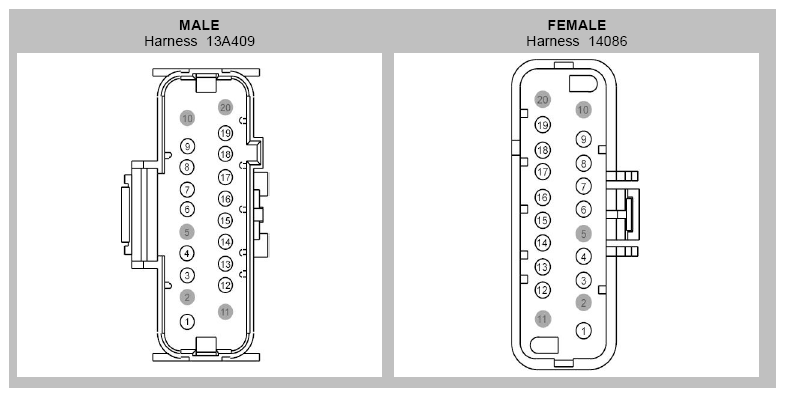

Inline Connector End View (C919)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CPR68 (YE) |
18 |
14086 |
| 1 |
CPR68 (YE) |
20 |
13A409 |
| 2 |
* |
* |
|
| 3 |
CLS17 (YE-GY) |
18 |
|
| 4 |
CPR64 (VT-OG) |
18 |
14086 |
| 4 |
CPR64 (VT-OG) |
20 |
13A409 |
| 5 |
* |
* |
|
| 6 |
CBP43 (GY) |
18 |
14086 |
| 6 |
CBP43 (GY) |
20 |
13A409 |
| 7 |
CPL45 (BN) |
20 |
|
| 8 |
CRW21 (YE-VT) |
18 |
14086 |
| 8 |
CRW21 (YE-VT) |
22 |
13A409 |
| 9 |
CRW20 (GY-YE) |
18 |
14086 |
| 9 |
CRW20 (GY-YE) |
22 |
13A409 |
| 10 |
* |
* |
|
| 11 |
* |
* |
|
| 12 |
CPR62 (WH-BU) |
16 |
|
| 13 |
CPR61 (BN) |
16 |
|
| 14 |
CPR66 (GY-YE) |
18 |
14086 |
| 14 |
CPR66 (GY-YE) |
20 |
13A409 |
| 15 |
CPR65 (BU-GN) |
18 |
14086 |
| 15 |
CPR65 (BU-GN) |
20 |
13A409 |
| 16 |
CBP35 (YE-GY) |
18 |
13A409 |
| 16 |
CBP35 (YE-GY) |
18 |
14086 |
| 17 |
CPR67 (VT) |
18 |
14086 |
| 17 |
CPR67 (VT) |
20 |
13A409 |
| 18 |
GD133 (BK) |
16 |
13A409 |
| 18 |
GD133 (BK) |
16 |
14086 - Navigator |
| 18 |
GD133 (BK) |
18 |
14086 - Expedition |
| 19 |
CPL60 (BN-YE) |
20 |
|
| 20 |
* |
* |
|
