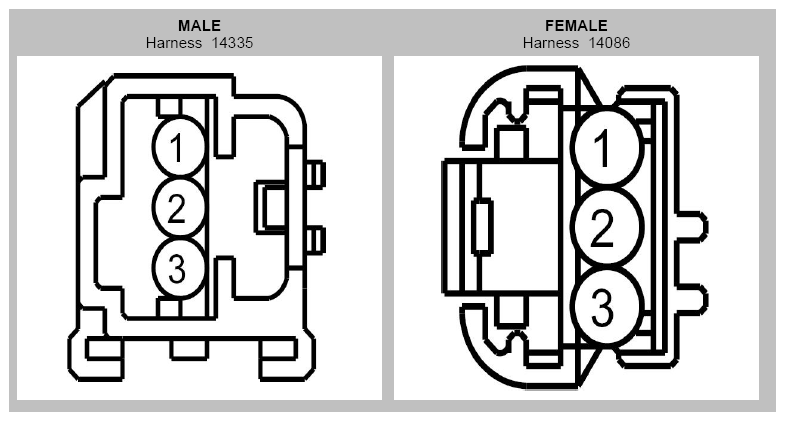

Inline Connector End View (C910)

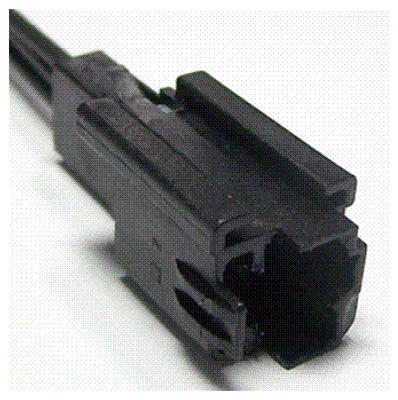

Fig 1: Identifying Inline Connector (C910)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge
1	VMP19 (WH-GN)	20
2	RMP19 (BN-VT)	20
3	DMP19 (BK)	20

Available Pigtail Kits
Pigtail Kit Part Number WPT-1103	Service Part Number: 3U2Z-14S411-EXAB Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses: Lamp - PRNDL Indicator Module - Radio Power Antenna Switch - Overdrive Cancel
